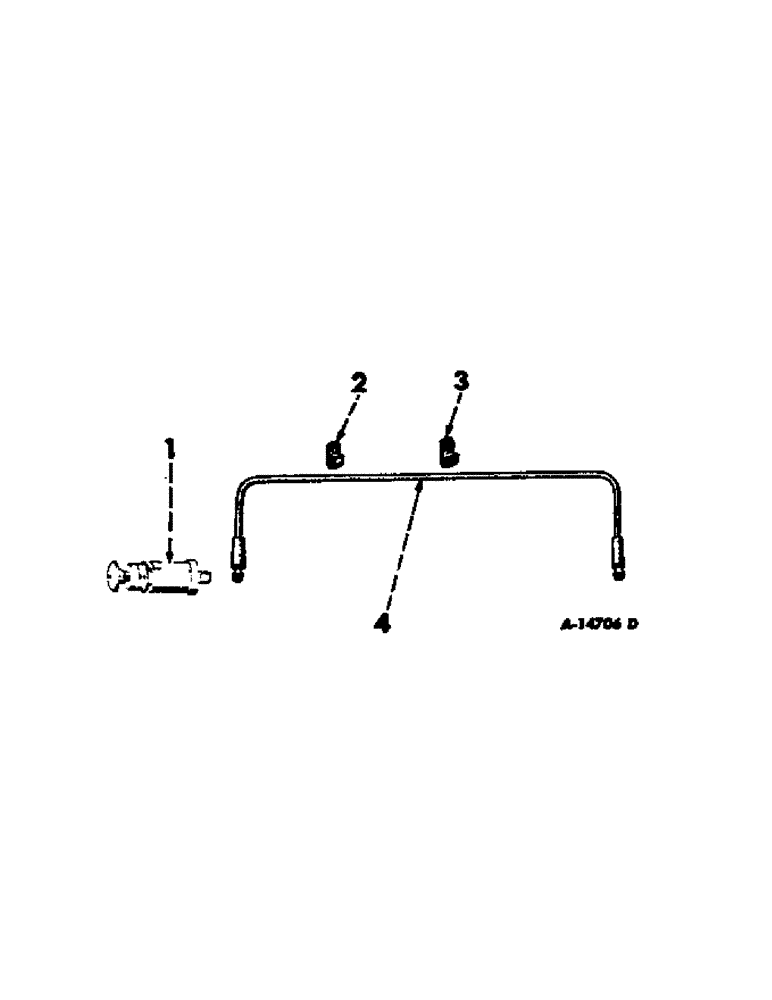

Запчасти Case IH FARMALL CUB (08-24) - ELECTRICAL, MAGNETO IGNITION SWITCH AND CABLE (06) - ELECTRICAL

1

54207DB

SWITCH

ASSY, magneto ignition

1шт.

59109D

SPACER, magneto ignition switch

1шт.

2

CLIP W/NUT, magneto grounding switch cable rear, discontinued for service, cub tractors w/serial no. 210000 and below, cub lo-boy tractors w/serial no. 10000 and below

1шт.

2

263515R91

CLIP,ELECTRICAL

CLIP, magneto grounding swithc cable rear, cub tractors w/serial no. 210001 and above, cub lo-boy tractors w/serial no. 10001 and above

1шт.

3

CLIP W/NUT, magneto grounding switch cable front, discontinued for service, used only with fuel tanks having two welded clips

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-truss hd mach

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

358110R92

CABLE ASSY, switch, will work for 58189D

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, 10-32 x 5/16 C-Z slt-fil-hd mach

1шт.

131183

WASHER, no. 10 CDP med lock

1шт.
