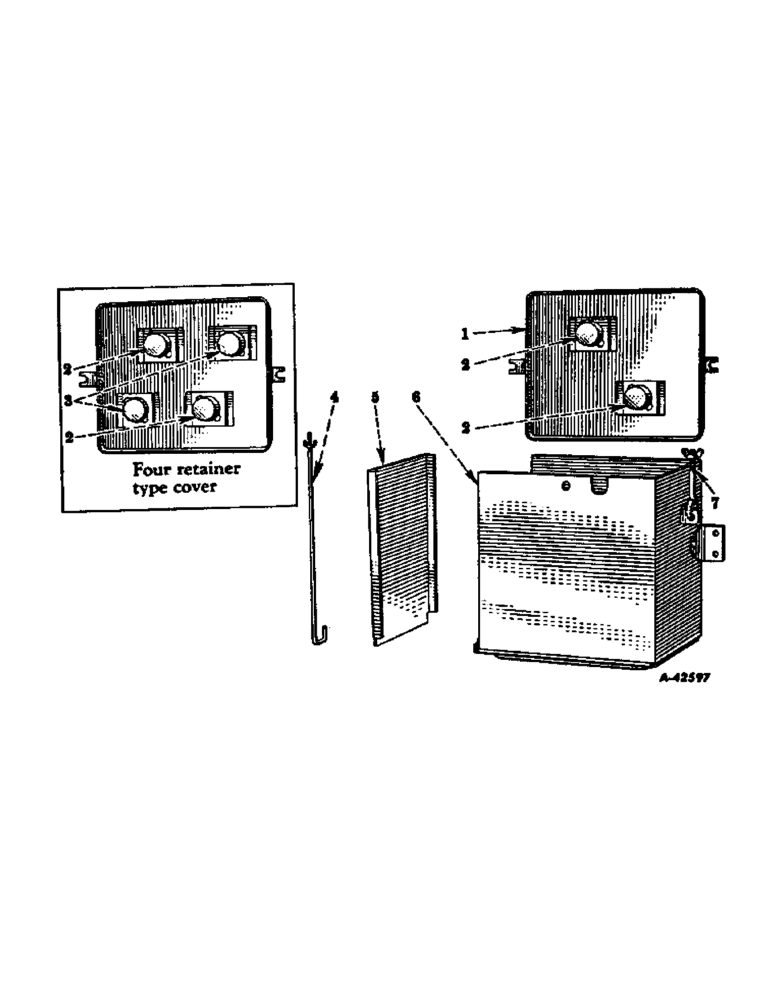

Запчасти Case IH FARMALL CUB (08-23) - ELECTRICAL, BATTERY BOX (06) - ELECTRICAL

1

351336R12

COVER ASSY

battery box, cub tractors w/serial no. 224400 and below, cub lo-boy tractors w/serial no. 18700 and below

1шт.

1

387259R91

COVER

ASSY, battery box, cub tractors w/serial no. 224401 and above, cub lo-boy tractors w/serial no. 18701 and above

1шт.

2

65054DA

RUBBER, battery hold-down, long, cub tractors w/serial no. 224400 and below, cub lo-boy tractors w/serial no. 18700 and below

2шт.

3

51690D

RUBBER, battery hold-down, short, used only with four retainer type cover

2шт.

4

351339R1

BOLT,1/4" - 20 x 10-.5, 1"

SCREW, battery box, front

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, , Type A 1/4"-20

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

1шт.

5

351334R1

CHANNEL

COVER, battery box front

1шт.

6

538609R2

TERMINAL BOX

BOX W/PRODUCT GRAPHIC, 539403R1, battery

1шт.

6

538609R2GV

BATTERY BOX

Value, Terminal Box

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

351340R1

BOLT,1/4" - 20 x 3"

SCREW, battery box, rear

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, , Type A 1/4"-20

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

1шт.
