Запчасти Case IH FARMALL CUB (08-20) - ELECTRICAL, COMBINATION REAR LIGHT AND TAIL LIGHT, SEALED BEAM (06) - ELECTRICAL

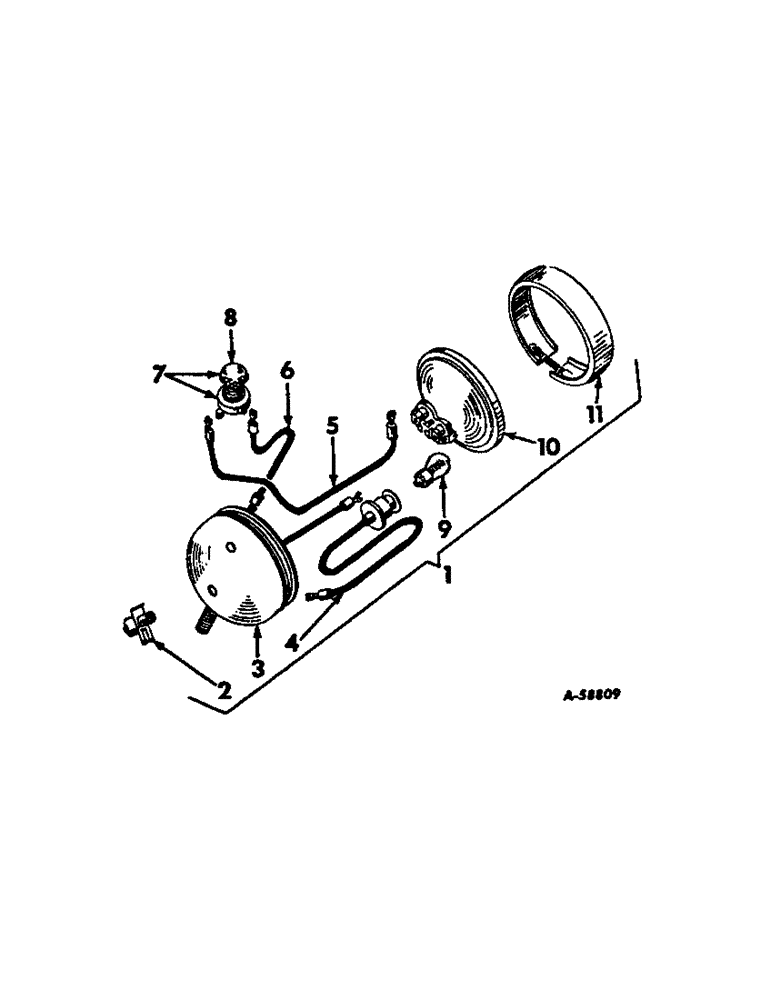

Схема запчастей Case IH FARMALL CUB - (08-20) - ELECTRICAL, COMBINATION REAR LIGHT AND TAIL LIGHT, SEALED BEAM (06) - ELECTRICAL
1
3
4
5
6
9
8
11
10
2
7

Артикул

Название

Примечание

Количество

1

373305R91

LIGHT

ASSY, combination rear and tail, 6 volt

1шт.

2

68417D

INSULATOR

PACKAGE, terminal plate assy

1шт.

3

BODY, light, not serviced separately, order light assy

1шт.

4

373310R91

SOCKET and wire, switch to red light

1шт.

5

373311R91

WIRE, switch to sealed beam unit

1шт.

6

373311R91

WIRE, Serial Range: switch-connector

1шт.

7

375653R92

KIT

SWITCH ASSY, light

1шт.

8

KNOB, light switch, services only as part of switch, 375653R92

1шт.

9

454493

LAMP, no. 209, 6 volt #209, Type C-6, 6V

1шт.

10

371458R91

SEALED BEAM UNIT

UNIT, sealed beam

1шт.

11

371450R91

BEZEL

MOULDING ASSY

1шт.

365697R1

NUT, moulding screw

1шт.

132489

SCREW, 8-32 x 1-1/4 ni-bright brass slt-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

375376R1

RING

GASKET, sealed beam unit, unit only if unit is loose in light body

1шт.

Выбрано товаров: 15
