Запчасти Case IH FARMALL CUB (08-19) - ELECTRICAL, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL

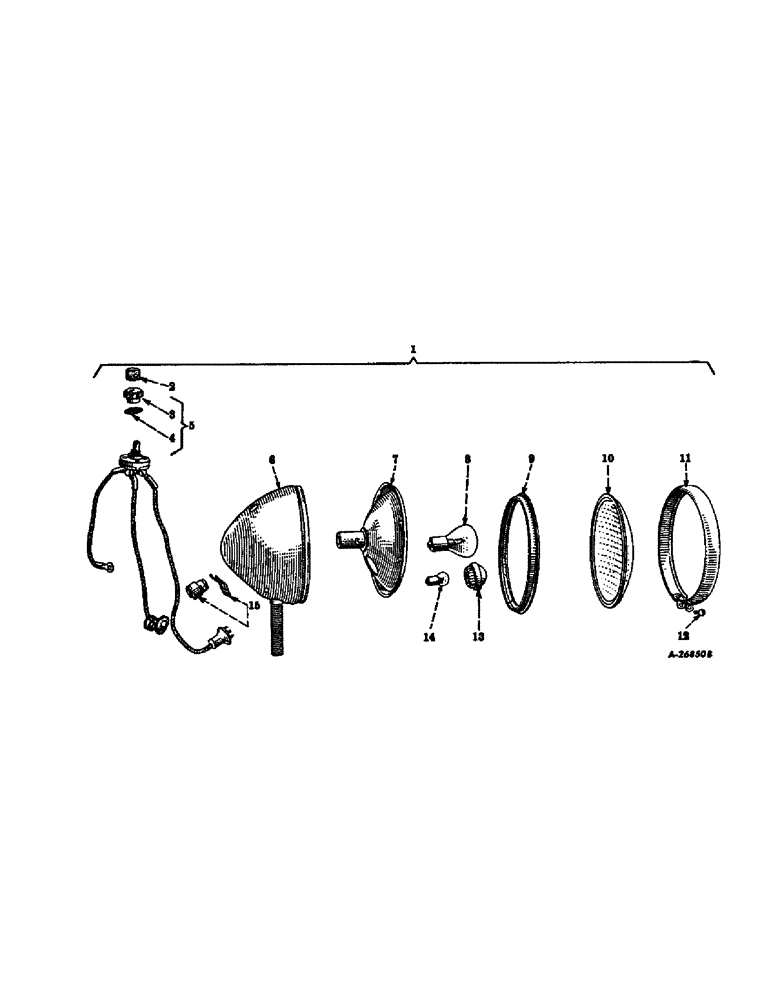

Схема запчастей Case IH FARMALL CUB - (08-19) - ELECTRICAL, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL
10
4
12
11
2
7
1
9
8
15
14
3
6
5
13

Артикул

Название

Примечание

Количество

1

361985R93

LAMP

LIGHT ASSY, combinatoin rear and tail, 6 volt, order light assy, 373305R91

1шт.

2

355423R91

KNOB, switch w/screw, metal, used with switch body with 5/16 in. shaft

1шт.

3

359773R91

KNOB, switch, plastic, used only with switch body with 5/32 in. shaft

1шт.

4

355425R1

NUT, switch retaining

1шт.

5

375653R92

KIT

SWITCH ASSY, light, less wiring, replaces 359682R91

1шт.

6

BODY, rear light, not serviced separately, order light assy, 373305R91

1шт.

7

356590R91

REFLECTOR, rear light

1шт.

8

142309

PULLEY

no. 1133, 6 volt

1шт.

9

53527D

GASKET

rear light

1шт.

10

350478R1

LENS

rear light

1шт.

11

53525DA

MOLDING

MOULDING, rear light

1шт.

12

53526D

SCREW

rear light door

1шт.

13

356592R91

JEWEL ASSY

1шт.

14

115273

LAMP, no. 51, 6 volt

1шт.

15

68417D

INSULATOR

PACKAGE, terminal plate assy

1шт.

Выбрано товаров: 15
