Запчасти Case IH FARMALL CUB (08-18) - ELECTRICAL, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL

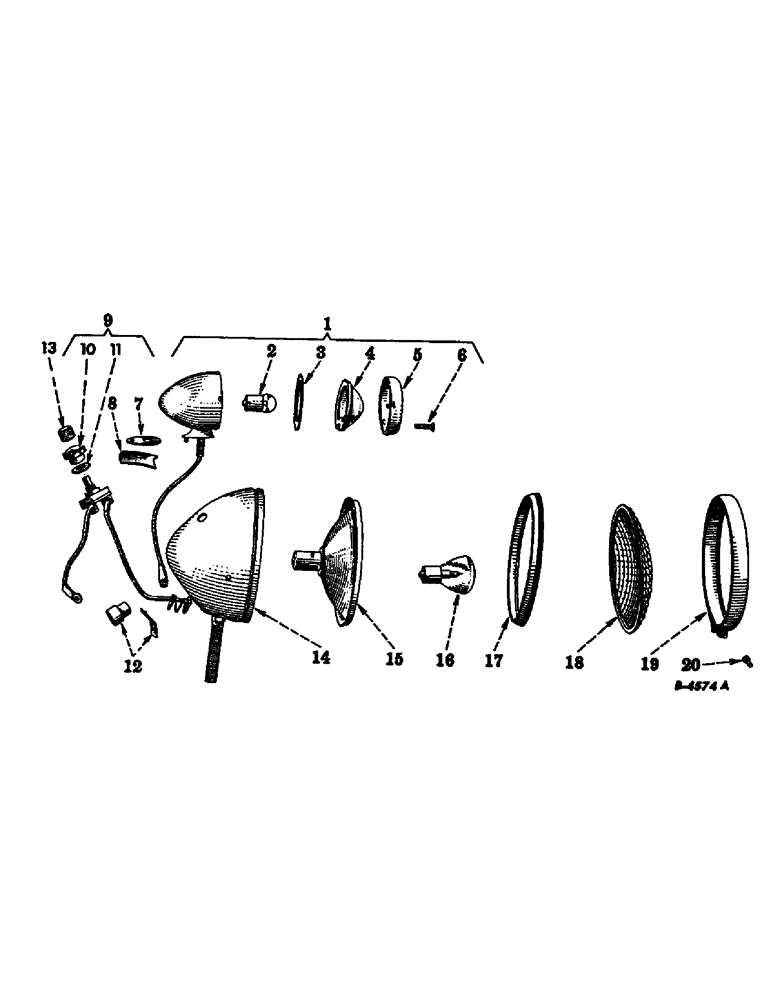

Схема запчастей Case IH FARMALL CUB - (08-18) - ELECTRICAL, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL
15
11
3
12
9
10
4
14
13
2
17
7
16
5
1
20
8
6
19
18

Артикул

Название

Примечание

Количество

353268R92

LIGHT

ASSY, combination rear and tail, 6 volt, order light assy, 373305R91

1шт.

1

LIGHT ASSY, tail, discontinued for service

1шт.

2

142303

ROD

no. 63, 6 volt

1шт.

3

92111H

GASKET, tail light door

1шт.

4

354308R1

LENS, tail light, ruby

1шт.

5

DOOR, tail light, discontinued for service

1шт.

6

SCREW, tail light door, discontinued for service

1шт.

7

GASKET, tail light mounting, discontinued for service

1шт.

8

STIFFENER, tail light mounting, discontinued for service

1шт.

121917

NUT, 5/16-24 cdp hex.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

375653R92

KIT

SWITCH ASSY, light, less wiring, replaces 354309R91 & 359682R92

1шт.

10

359773R91

KNOB, switch, plastic, used only with switch body with 15/32 in. shaft

1шт.

11

355425R1

NUT, switch retaining

1шт.

12

68417D

INSULATOR

PACKAGE, terminal plate assy

1шт.

13

355423R91

KNOB, switch w/screw, metal, used with switch body with 5/16 in. shaft

1шт.

14

BODY, rear light, discontinued for service

1шт.

15

53523D

REFLECTOR, rear light

1шт.

16

B50206

LAMP

no. 1133, 6 volt

1шт.

17

53527D

GASKET

rear light

1шт.

18

350478R1

LENS

rear light

1шт.

19

53525DA

MOLDING

MOULDING, rear light

1шт.

20

53526D

SCREW

rear light door

1шт.

Выбрано товаров: 23
