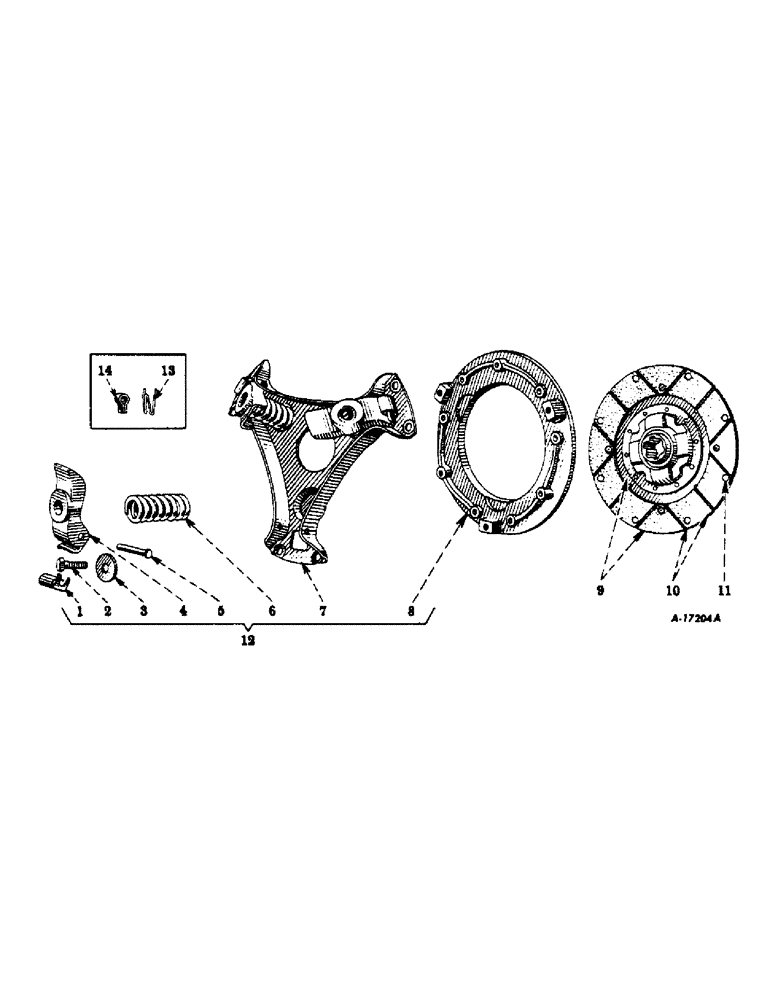

Запчасти Case IH FARMALL C (109) - CHASSIS, CLUTCH, AUBURN (12) - CHASSIS

1

355110R1

NO LONGER SERVICED

CLIP, return (Same as 357416R1) (Used with 357419R1)

3шт.

2

63975D

SCREW, adjusting (Used with 63153D)

3шт.

2

355106R1

SCREW, adjusting (Same as 357415R1) (Used with 357419R1)

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

3

63157D

WASHER, adjusting screw (Used with 63153D)

3шт.

3

355096R1

WASHER, adjusting screw (Same as 357417R1) (Used with 357419R1)

3шт.

4

357418R1

LEVER, clutch (Will work for 351919R1)

3шт.

5

63161D

PIN, pivot, clutch lever

3шт.

6

351920R1

SPRING, pressure (Used with 63153D)

3шт.

6

360470R1

SPRING, pressure (Used with 357419R1)

3шт.

6

361168R91

PACKAGE, clutch pressure spring (Consists of three 360470R1)

1шт.

7

351918R1

BRACKET, clutch

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

8

63153D

PLATE, pressure, clutch (w/no. 3130 stamped on back of plate)

1шт.

8

357419R1

PLATE, pressure, clutch (w/no. 4325 stamped on back of plate)

1шт.

9

351297R92

DISC

driven clutch, w/facing set, 30718DXA

1шт.

10

351467R91

FACING, CLUTCH

FACING SET, clutch (Consists of two facings with ten rivets 63974D) (Used with 351297R91)

1шт.

10

30718DXA

FACING

SET, clutch (Consists of two facings with twenty-two rivets, 53795V) (Used with 351297R92)

1шт.

11

28754D

RIVET, facing (Used with 351297R91) (Will work for 63974D)

10шт.

11

53795V

RIVET,Csk Hd, 3/16" x 5/16"

tubular, csk-hd., brs., 3/16 x 5/16" (Used with 351297R92)

12шт.

12

361582R91

CLUTCH

PLATE, pressure, clutch, assembly (Will work for 351296R92), Composed of

1шт.

351918R1

BRACKET

1шт.

355110R1

NO LONGER SERVICED

CLIP

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

3шт.

357418R1

LEVER

3шт.

63161D

PIN

3шт.

357419R1

PLATE

1шт.

355106R1

SCREW

3шт.

360470R1

SPRING

3шт.

355096R1

WASHER

3шт.

13

64771D

SPRING, return (Used with 63153D)

3шт.

14

352751R1

SPRING, cushion (Used with 63153D)

3шт.
