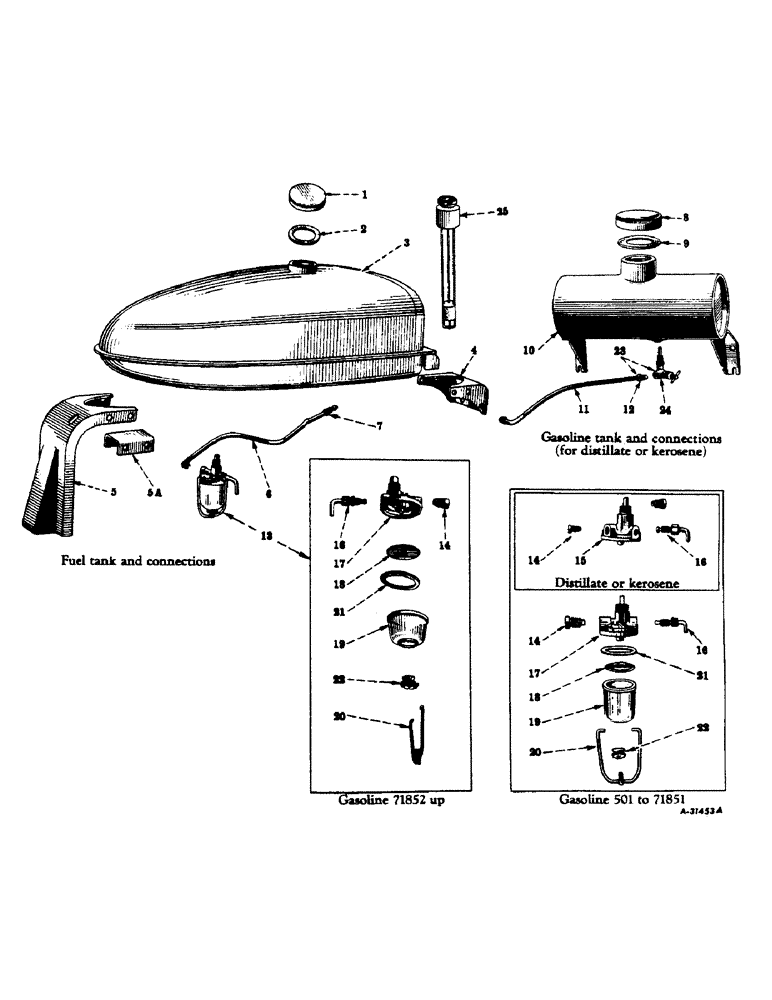

Запчасти Case IH FARMALL C (102) - CHASSIS, FUEL AND GASOLINE TANKS, SUPPORTS AND PIPING (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
23995DC
FILLER CAP
CAP, fuel tank filler, w/gasket, 23977DB
1шт.
2
23977DB
GASKET
fuel tank filler cap
1шт.
3
350615R93
TANK, fuel, w/cap, 23995DC (Order 356011R93 or 356584R92)
1шт.
103026
NUT,3/8"-24, G5
(Two required with touch-control) 3/8"-24, G5
4шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
181360
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
SCREW, cap, hex-hd., 3/8-24 NF x 3/4" (Two required with touch- control)
4шт.
BOLT,Hex, 3/8" - 24 x 1", Gr 5
SCREW, cap, hex-hd., 3/8-24 NF x 1" (For tractors not equipped with touch-control)
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, (Two required with touch-control) 3/8"
4шт.
4
350621R1
BRACKET, fuel tank support, front
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
181355
BOLT
SCREW, cap, hex-hd., 3/8-24 NF x 9/16"
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
5
49601D
BRACKET, fuel tank support, rear (For tractors not equipped with touch-control)
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
5a
350622R1
BRACKET, fuel tank support angle adapter (For tractors not equipped with touch-control)
2шт.
181360
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
SCREW, cap, hex-hd., 3/8-24 NF x 3/4"
4шт.
103026
NUT,3/8"-24, G5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
6
350623R11
FUEL TUBE
PIPE, strainer to carburetor, w/two nuts, 29899D (Gasoline)
1шт.
6
351622R11
PIPE, strainer to carburetor, w/two nuts, 29899D (Distillate or kerosene)
1шт.
7
222-503
TUBE NUT,1/2"-20
NUT, coupling, strainer to carburetor pipe
2шт.
8
23995DC
FILLER CAP
CAP, gasoline tank filler, w/gasket, 23977DB
1шт.
9
23997DB
GASKET, gasoline tank filler cap
1шт.
10
351637R94
TANK, gasoline, w/filler cap, 23995DC
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
11
351623R11
PIPE, gasoline tank to strainer, w/two nuts, 29899D (Distillate or kerosene)
1шт.
12
222-503
TUBE NUT,1/2"-20
NUT, coupling, gasoline tank to strainer pipe
2шт.
13
355142R92
STRAINER, gasoline, w/nut, 29899D (Will work for 51066DC or 51066DCX) (Gasoline), fuel, Imperial Brass
1шт.
13
51495DD
STRAINER ELEMENT
STRAINER, fuel (Distillate or kerosene), Imperial Brass
1шт.
14
222-503
TUBE NUT,1/2"-20
NUT, coupling (Gasoline), fuel strainer, Imperial Brass
1шт.
14
222-503
TUBE NUT,1/2"-20
NUT, coupling (Distillate or kerosene), fuel strainer, Imperial Brass
2шт.
15
52856D
BODY
strainer (Distillate or kerosene) (S/N 501 to 26622), fuel, Imperial Brass
1шт.
15
354143R91
STRAINER ELEMENT
BODY, w/baffle, strainer (Distillate or kerosene) (S/N 26623 up), fuel, Imperial Brass
1шт.
16
52855D
VALVE
STEM (S/N 501 to 26622), fuel strainer, Imperial Brass
1шт.
16
259403R91
COCK
STEM (S/N 26623 up), fuel strainer, Imperial Brass
1шт.
17
54486D
BODY, strainer (Gasoline) (S/N 501 to 26622), fuel, Imperial Brass
1шт.
17
259402R91
BODY, w/baffle, strainer (Gasoline) (S/N 26623 to 71851), fuel, Imperial Brass
1шт.
17
355141R91
BODY
w/baffle, strainer (Gasoline) (S/N 71852 up), fuel, Imperial Brass
1шт.
18
13194D
STRAINER ASSY.
SCREEN, strainer (Distillate or kerosene), fuel, Imperial Brass
1шт.
(Gasoline) (S/N 501 to 71851), fuel strainer, Imperial Brass
1шт.
18
49923D
FILTER SCREEN
SCREEN, strainer (Gasoline) (S/N 71852 up), fuel, Imperial Brass
1шт.
19
357957R1
BOWL
glass, strainer (Distillate or kerosene), fuel, Imperial Brass
1шт.
(Gasoline) (S/N 501 to 71851), fuel strainer, Imperial Brass
1шт.
19
357958R1
BOWL
glass, strainer (Gasoline) (S/N 71852 up), fuel, Imperial Brass
1шт.
20
17564D
HOLDER
BAIL (Distillate or kerosene), fuel strainer, Imperial Brass
1шт.
(Gasoline) (S/N 501 to 71851), fuel strainer, Imperial Brass
1шт.
20
49947D
COLLAR CLAMP
BAIL (Gasoline) (S/N 71852 up), fuel strainer, Imperial Brass
1шт.
21
355888R2
GASKET
strainer (Will work for 13193D) (Distillate or kerosene), fuel, Imperial Brass
1шт.
(Gasoline) (S/N 501 to 71851), fuel strainer, Imperial Brass
1шт.
21
49924D
GASKET
strainer (Gasoline) (S/N 71852 up), fuel, Imperial Brass
1шт.
22
17565DA
CUP
NUT, w/cup (Distillate or kerosene), fuel strainer, Imperial Brass
1шт.
(Gasoline) (S/N 501 to 71851), fuel strainer, Imperial Brass
1шт.
22
50061D
NUT
AND CUP (Gasoline) (S/N 71852 up), fuel strainer, Imperial Brass
1шт.
23
29910DX
VALVE, shut-off, gasoline tank, w/nut, 29899D (Distillate or kerosene), Imperial Brass
1шт.
24
29910D
VALVE, shut-off, gasoline tank (Distillate or kerosene), Imperial Brass
1шт.
25
365482R92
CAP, fuel gage filler, w/gasket, 23977DB (Special), shut-off valves, Imperial Brass
1шт.
59867D
HANDLE, shut-off valves, Imperial Brass
1шт.
222-503
TUBE NUT,1/2"-20
NUT, coupling, pipe, shut-off valves, Imperial Brass
1шт.
59871D
NUT, packing, shut-off valves, Imperial Brass
1шт.
59870D
PACKING, shut-off valves, Imperial Brass
2шт.
59876D
STEM, valve, shut-off valves, Imperial Brass
1шт.
59872D
WASHER, packing, shut-off valves, Imperial Brass
1шт.
356011R96
PACKAGE, service, fuel tank, w/mounting bracket (Will work for 350615R93) (Optional with 356584R95), Consists of, shut-off valves, Imperial Brass
1шт.
356008R21
BRACKET
shut-off valves, Imperial Brass
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
Shut-off valves, Imperial Brass Hex, 3/8"-16 x 3/4", G5, Full Thd
4шт.
181355
BOLT
SCREW, shut-off valves, Imperial Brass
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, , Shut-off valves, Imperial Brass 3/8"
6шт.
356010R96
TANK, shut-off valves, Imperial Brass
1шт.
356584R95
PACKAGE, service, fuel tank, w/mounting bracket (Will work for 350615R93) (Optional with 356011R96), Consists of, shut-off valves, Imperial Brass
1шт.
356495R1
BRACKET, shut-off valves, Imperial Brass
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
Shut-off valves, Imperial Brass Hex, 3/8"-16 x 3/4", G5, Full Thd
4шт.
NLS
NO LONGER SERVICED
Shut-off valves, Imperial Brass Hex, 3/8"-16 x 1", G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, , Shut-off valves, Imperial Brass 3/8"
6шт.
356010R96
TANK, shut-off valves, Imperial Brass
1шт.
