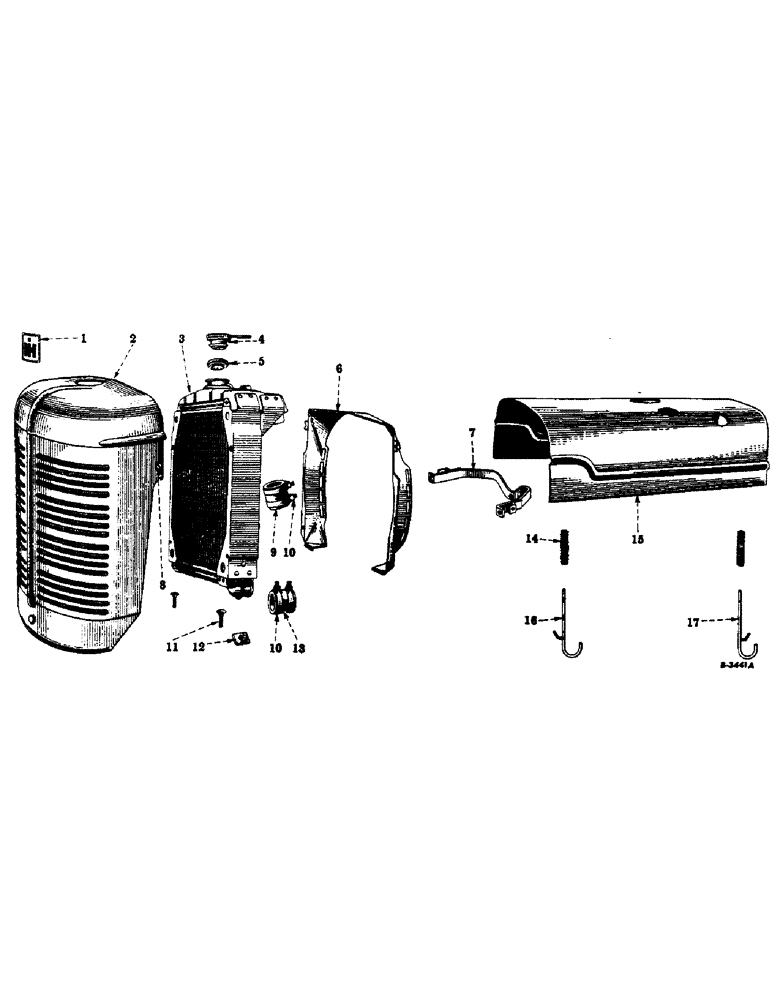

Запчасти Case IH FARMALL C (100) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD (12) - CHASSIS

1

352580R1

PRODUCT GRAPHIC

PLATE, name (IH)

1шт.

352581R1

SCREW, slotted, ck-fl-hd., no. 6 x 1/2"

1шт.

2

58140DAX

GRILLE, radiator

1шт.

3

RADIATOR, w/tube, 352780R1 and hose, 352781R1 (Order 354875R93) S/N, Serial Range: 501-58137

1шт.

3

352630R93

RADIATOR, w/tube, 352780R1 and hose, 352781R1 (Young radiator) (Optional with 352914R93) (S/N 58138 up)

1шт.

3

352914R92

RADIATOR (Order 354875R93) (S/N, Serial Range: 501-58137)

1шт.

3

352914R95

RADIATOR (IH) (Optional with 352630R93) (S/N 58138 up)

1шт.

4

353869R91

CAP

radiator filler, 67448DD or 356710R91, w/decal (Will work for 352631R91) (S/N, Serial Range: 501-21346)

1шт.

4

67448DD

CYLINDER END CAP

CAP, radiator filler (Optional with 356710R91) (S/N 21347 up)

1шт.

4

356710R91

RADIATOR CAP

CAP, radiator filler (Optional with 67448DD)

1шт.

5

352639R91

GASKET

radiator filler cap (Used with 67448DC) (S/N 21347 up)

1шт.

6

351182R2

HOUSING, fan

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24 NF

4шт.

217220

SCREW, cap, hex-hd., 5/16-24 NF x 3-3/4"

2шт.

186305

FLOOR

SCREW, cap, hex-hd., 5/16-24 NF x 4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

356357R12

BRACE, radiator (Will work for 351164R11)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

58141DA

SCREW, radiator grille fastener

3шт.

9

351162R1

HOSE, radiator inlet (2-3/8" I.D. x 3-3/8" long, 3 ply)

1шт.

10

357870R91

CLAMP

radiator hose (Will work for 91406HA)

4шт.

11

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

S, radiator mounting

2шт.

271506

DISC

hex., 7/16-20 NF

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

47240D

PAD

radiator

2шт.

13

23812D

HOSE

radiator outlet (2" I.D. x 3-3/4" long, 3 ply)

1шт.

14

48707DA

SPRING

hood clamp hook

4шт.

15

351090R11

HOOD, w/brackets (Gasoline)

1шт.

15

352051R11

HOOD, w/brackets (Kerosene or distillate)

1шт.

16

58146D

CLAMP

hood, L.H. front

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

16

58147D

CLAMP

hood, R.H. front

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

16

363669R91

CLAMP

hood, R.H. rear (Kerosene or distillate) (Will work for 60754D)

1шт.

17

351091R91

CLAMP, hood, L.H. rear

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

17

351092R91

CLAMP

hood, R.H. rear

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

354875R93

PACKAGE, radiator (Will work for 352630R92 and 352914R92) (Consists of one 352630R93 or 352914R95 radiator and fan housing reworking diagram, FZG-400) (S/N, Serial Range: 501-58137)

1шт.

352781R1

HOSE, connecting, overflow tube (Young radiator)

1шт.

352780R1

TUBE, lower overflow (Young radiator) 5/16" OD, 16-5/32, 7-9/16" Length

1шт.
