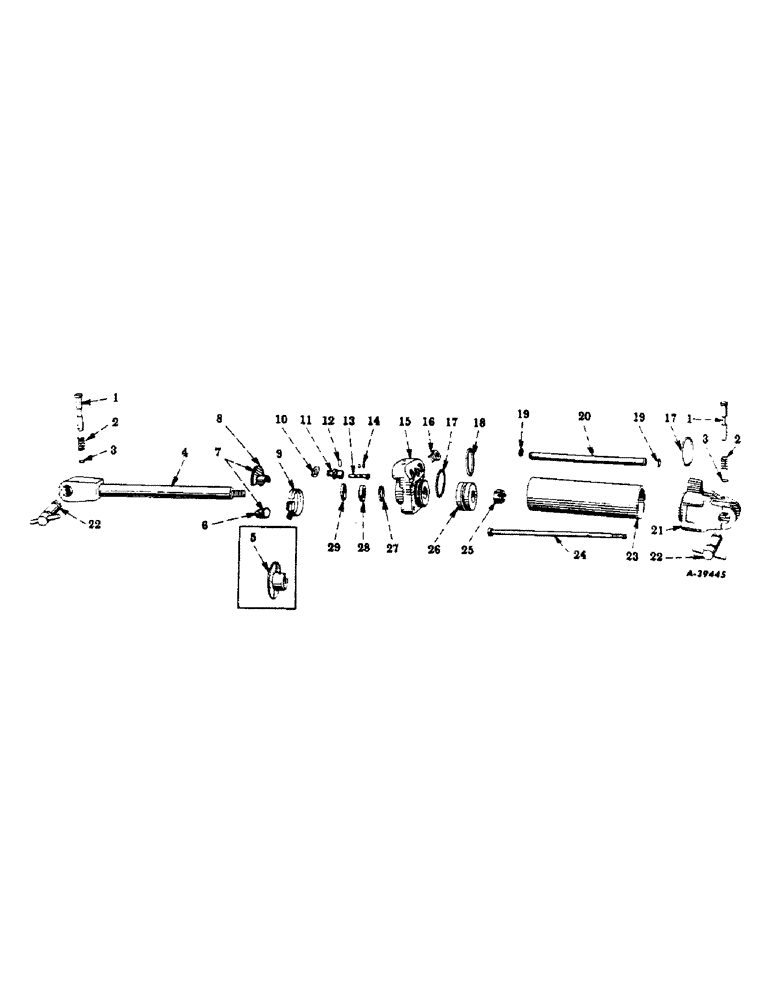

Запчасти Case IH FARMALL C (171) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER, 2-1/2 X 8 INCHES, WITH 3/8 INCH DIAMETER LIMIT STOP VALVE (07) - HYDRAULIC SYSTEM

359561R94

CYLINDER, hydraulic, 2-1/2 x 8" (Order 360994R91)

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

pivot pin lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

354045R31

ROD

piston

1шт.

102651

SLOTTED NUT

NUT, slotted, hex., 3/4-16 NF

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

5

354055R2

COLLAR, stroke limit (Flanged half) (Order 360380R91)

2шт.

6

360373R1

COLLAR, stroke limit (Flanged half)

1шт.

7

360380R91

COLLAR, stroke limit, 360372R1, w/collar, 360373R1 (Will work for two flanged halves, 354055R2)

1шт.

8

360372R1

COLLAR

stroke limit (Plain half)

1шт.

9

361085R91

CLAMP

stroke limit collar (Will work for 354056R91 and 360382R91) (Optional with 361087R91)

1шт.

9

361087R91

COLLAR, stroke limit (Will work for 354056R91 and 360382R91) (Optional with 361085R91)

1шт.

10

356820R1

PLATE, limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4 NC x 9/16"

2шт.

11

354043R2

RETAINER

limit stop valve

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, limit stop valve retainer

1шт.

13

354042R2

VALVE

limit stop (3/8" dia.)

1шт.

14

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

RING, seal, limit stop valve

2шт.

15

356816R31

HEAD, cylinder, front, w/two plug, 103874 and two plug, 143997

1шт.

144038

BUSHING, reducing, pipe, 1/2 x 1/4" 1/2" NPT Male x 1/4" NPT Fem

2шт.

103874

VALVE SPRING

PLUG, pipe, sq-socket, C.I., 1/2"

2шт.

143997

PLUG

pipe, sq-socket, stl., 1/4"

2шт.

50410DA

PLUG

pipe cylinder head, 1/8"

3шт.

16

144038

FOLLOWS REFERENCE NO. 15 1/2" NPT Male x 1/4" NPT Fem

1шт.

17

356818R1

GASKET

RING, seal, cylinder

2шт.

18

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING, seal, piston head

1шт.

19

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, cylinder return tube

2шт.

20

354834R11

SLEEVE

TUBE, cylinder return, w/two washers

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

356815R2

HEAD, cylinder rear

1шт.

50410DA

PLUG

pipe, cylinder head, 1/8"

1шт.

22

352231R11

PIN

cylinder pivot

2шт.

23

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder

1шт.

24

18063R1

SCREW, cap, hex-hd., 7/16-14 NC x 12" (Will work for 356819R1)

4шт.

25

102651

SLOTTED NUT

FOLLOWS REFERENCE NO. 4

1шт.

26

356821R1

PISTON

HEAD, piston

1шт.

27

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

gland, cylinder

1шт.

28

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, dust, piston rod

1шт.

29

354049R1

RETAINER

piston rod dust seal felt

1шт.
