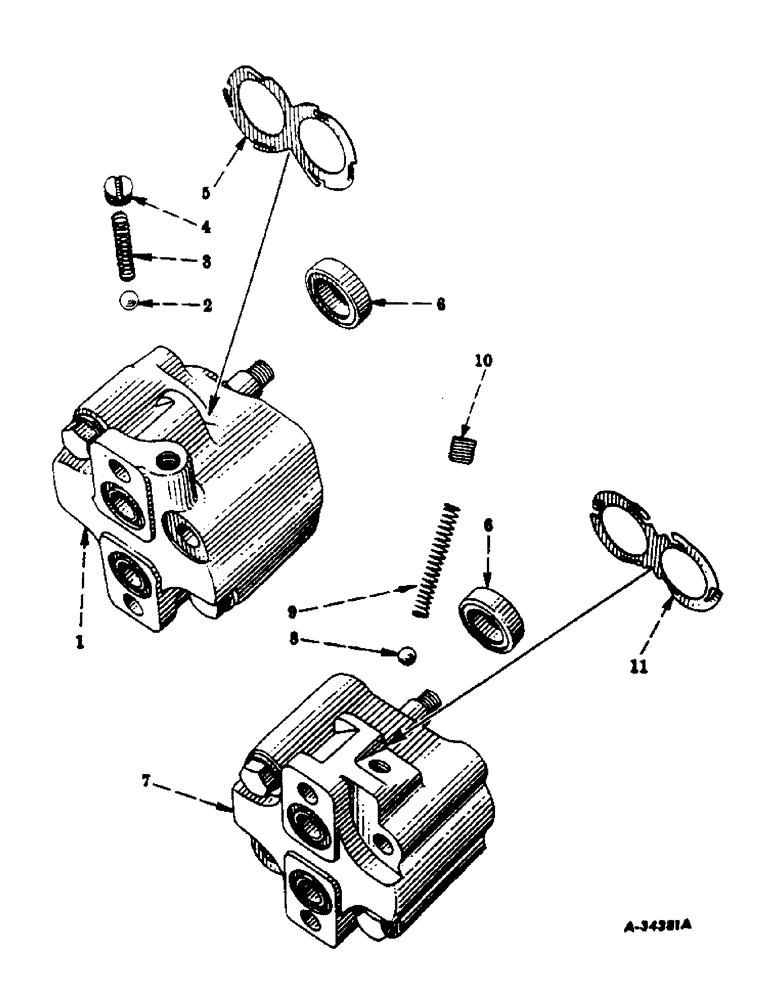

Запчасти Case IH FARMALL C (168) - HYDRAULIC SYSTEM, TOUCH-CONTROL, PUMP (07) - HYDRAULIC SYSTEM

1

360689R92

PUMP

touch-control, assembly (Pesco) (Will work for 350707R96, 355007R94 and 355370R93) (Optional with 360945R92), Composed of

1шт.

16008R1

BALL,1/4" Dia, Steel

1шт.

BODY, w/four bearings, two bolts, cover, two pump gears, and two washers (NSS)

1шт.

353183R91

OIL SEAL

OIL SEAL

1шт.

355362R91

PACKAGE

1шт.

361628R1

PLUG

1шт.

353186R1

SEAL

RING (NSS)

1шт.

353203R11

RING (NSS)

2шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW

1шт.

361625R1

SPRING

1шт.

361627R1

SPRING

1шт.

355202R1

WASHER

WASHER, fibre (NSS)

2шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 2-3/4"

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 3-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

16008R1

BALL,1/4" Dia, Steel

chrome stl., 1/4" dia. (Used only on Pesco pumps, 051012-080-02 and 051012-081-02)

1шт.

3

361627R1

SPRING, ball check (Used only on Pesco pumps, 051012-080-02 and 051012-081-02)

1шт.

4

361628R1

PLUG, ball check (Used only on Pesco pumps, 051012-080-02 and 051012-081-02)

1шт.

5

361625R1

SPRING, bearing cover (Used on all Pesco pumps)

1шт.

6

353183R91

OIL SEAL

OIL SEAL, pump shaft (Used only on Pesco pumps 051012-020-01, 051012-080-02, and 051012-081-02 and Thompson pump)

1шт.

7

360945R92

PUMP

touch-control, assembly (Thompson) (Will work for 350707R96, 355007R94, and 355370R93) (Optional with 360689R92), Composed of

1шт.

16009R1

BALL

1шт.

BODY, w/four bearings, two bolts, cover, and two pump gears (NSS)

1шт.

353183R91

OIL SEAL

OIL SEAL

1шт.

355362R91

PACKAGE

1шт.

361631R1

PLUG

1шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING (NSS)

1шт.

356818R1

GASKET

RING (NSS)

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

361629R1

SPRING

1шт.

361630R1

SPRING

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

16009R1

BALL

chrome stl., 9/32" dia., (Used on Thompson pumps)

1шт.

9

361630R1

SPRING, ball check (Used on Thompson pumps)

1шт.

10

361631R1

PLUG, ball check (Used on Thompson pumps)

1шт.

11

361629R1

SPRING

pressure plate (Used on Thompson pumps)

1шт.

355207R91

GASKET

PACKAGE, manifold and pump seal ring and gasket (Used on Pesco pumps 051012-020-01 thru 051012-020-07 and 051012-024-05 thru 051012-024-07), Consists of

1шт.

350706R2

GASKET

1шт.

350708R1

GASKET

1шт.

106749

KEY

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING

2шт.

353184R1

SEAL

RING (NSS)

2шт.

353186R1

SEAL

RING (NSS)

1шт.

353836R1

RING

(NSS)

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING (NSS)

2шт.

353185R1

SEAL

SEAL (NSS)

1шт.

355048R1

WASHER

(NSS)

2шт.

355202R1

WASHER

WASHER (NSS)

2шт.

355362R91

PACKAGE

touch-control pump mounting gasket, Composed of

1шт.

350706R2

GASKET

1шт.

350708R1

GASKET

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING

2шт.

360691R91

STRIPPER PACKAGE

PACKAGE, manifold and pump seal ring and gasket (Used only on Pesco pumps 051012-080-02 and 051012-081-02), Composed of

1шт.

350706R2

GASKET

1шт.

350708R1

GASKET

1шт.

106749

KEY

1шт.

353183R91

OIL SEAL

OIL SEAL

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING

2шт.

353186R1

SEAL

RING (NSS)

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING (NSS)

2шт.

355202R1

WASHER

WASHER (NSS)

2шт.

360957R91

GASKET KIT

PACKAGE, manifold and pump seal ring and gasket (Used only on Thompson pumps), Composed of

1шт.

350706R2

GASKET

1шт.

350708R1

GASKET

1шт.

106749

KEY

1шт.

353183R91

OIL SEAL

OIL SEAL

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING

2шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING (NSS)

1шт.

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

RING (NSS)

1шт.

353836R1

RING

seal, pump shaft (Used only on Pesco pumps 051012-020-02 thru 051012-020-07 and 051012-024-05 thru 051012-024-07)

1шт.
