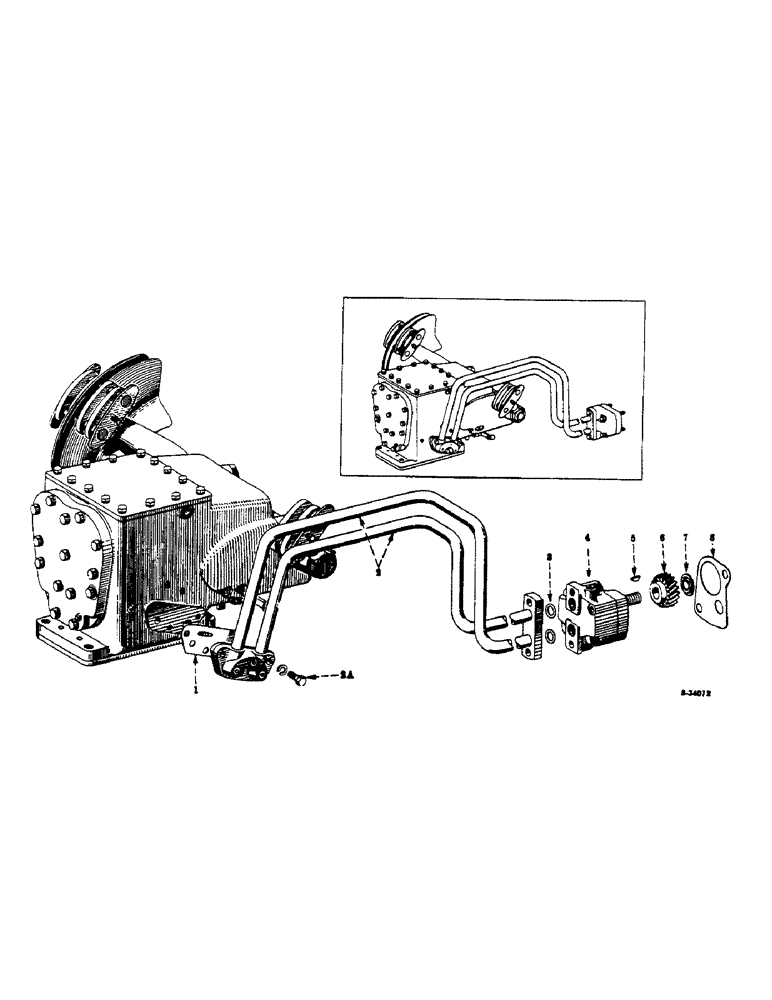

Запчасти Case IH FARMALL C (167) - HYDRAULIC SYSTEM, TOUCH-CONTROL PUMP, DRIVE GEAR, AND MANIFOLD TUBES (07) - HYDRAULIC SYSTEM

1

350706R2

GASKET

manifold rear flange (Not used on tractors equipped with hydraulic remote control attachment)

1шт.

2

350701R93

TUBE

S, manifold, w/two flanges, plug, 50410DA and two plugs, 50474DA

1шт.

2

356779R91

MANIFOLD

TUBES, manifold (Tractors equipped with hydraulic remote control attachment) (Illustrated with auxiliary control valve and connections) (A)

1шт.

103026

NUT,3/8"-24, G5

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4" (Tractor equipped with hydraulic remote control attachment) (A)

2шт.

181381

BOLT,Hex, 3/8" - 24 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 3/-24 NF x 2-1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (4 used on tractors equipped with remote control attachment) (A) 3/8"

2шт.

2a

353331R1

SCREW, cap, manifold rear flange (Will work for 179842) (Not used on tractors equipped with hydraulic remote control attachment)

3шт.

3

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, manifold front flange (Will work for 350429R1)

2шт.

4

PUMP, touch-control (For components see list of parts under details of "touch-control pump")

1шт.

5

106749

KEY

Woodruff, no. 3

1шт.

6

350709R1

GEAR

drive, touch-control pump (16 teeth)

1шт.

7

351818R1

WASHER

drive gear, touch-control pump

1шт.

8

350708R1

GASKET

touch-control pump

1шт.

50410DA

PLUG

pipe, 1/8" (Manifold flange, rear)

1шт.

50474DA

PLUG

pipe, 1/4" (Manifold flange, rear)

2шт.
