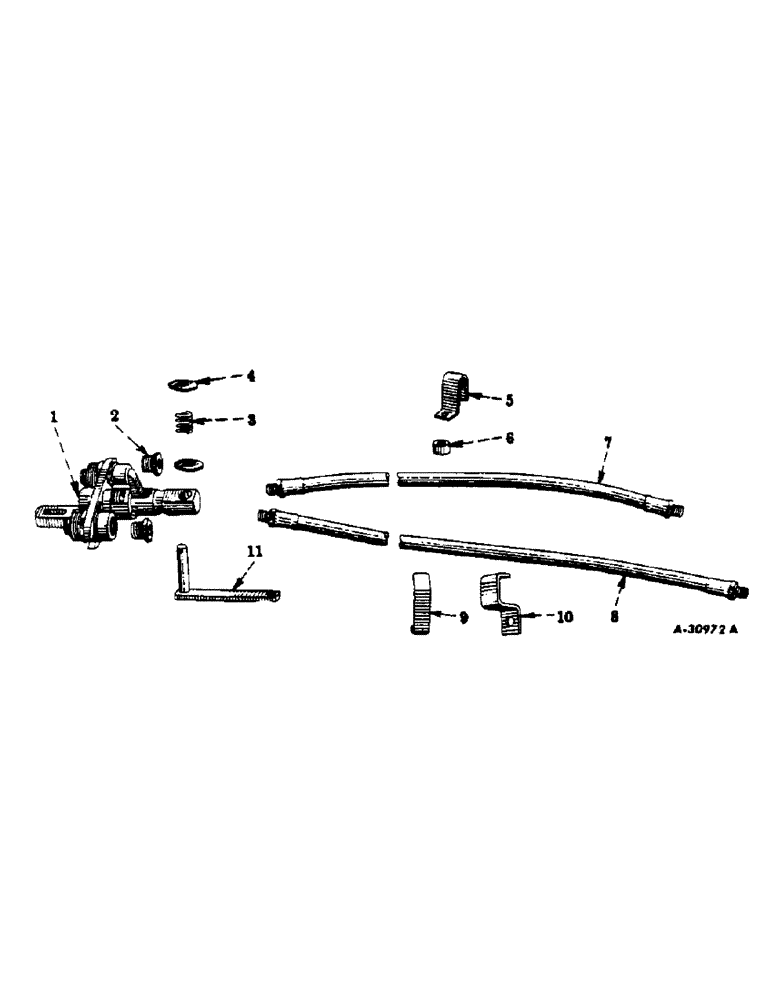

Запчасти Case IH FARMALL C (166) - HYD. SYSTEM, REMOTE CONTROL, SPECIAL, BREAK-AWAY COUPLING, FRONT SECTION, BRACKETS, HOSES & CLAMPS (07) - HYDRAULIC SYSTEM

1

364311R91

COUPLING, break-away, front section, assembly (For components see list of parts under details of break-away coupling) (Will work for 353215R91)

1шт.

2

144038

BUSHING, reducing, pipe, 1/2 x 1/4" 1/2" NPT Male x 1/4" NPT Fem

2шт.

3

353213R2

SPRING

break-away coupling bracket

1шт.

4

PO10535

WASHER

FOLLOWS REFERENCE NO. 11

1шт.

5

356835R1

BRACKET, auxiliary control valve hose

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex-hd., 3/8-16 NC x 1-7/8"

1шт.

6

356836R1

SPACER, auxiliary control valve hose bracket

1шт.

7

356807R91

HOSE, control valve to break-away coupling, front section, 1/4" I.D. x 54" long (Will work for 357952R91)

1шт.

8

356833R91

HOSE, control valve to break-away coupling, front section, 1/4" I.D. x 54" long (Will work for 357955R91)

1шт.

9

356809R1

CLAMP, auxiliary control valve hose (Used with one piece battery box)

1шт.

10

360383R1

CLAMP, auxiliary control valve hose (Used with two piece battery box)

1шт.

11

356837R11

BRACKET, break-away coupling

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 1-3/4"

1шт.

PO10535

WASHER

plain, 17/32" I.D. x 1-1/4" O.D. x no. 11 ga.

2шт.

368710R1

CAP

dust, break-away coupling front section (Illustrated with break-away coupling) (Will work for 355190R3)

2шт.

356834R12

GUARD, hose, auxiliary control valve (Illustrated with hydra- creeper attachment)

1шт.
