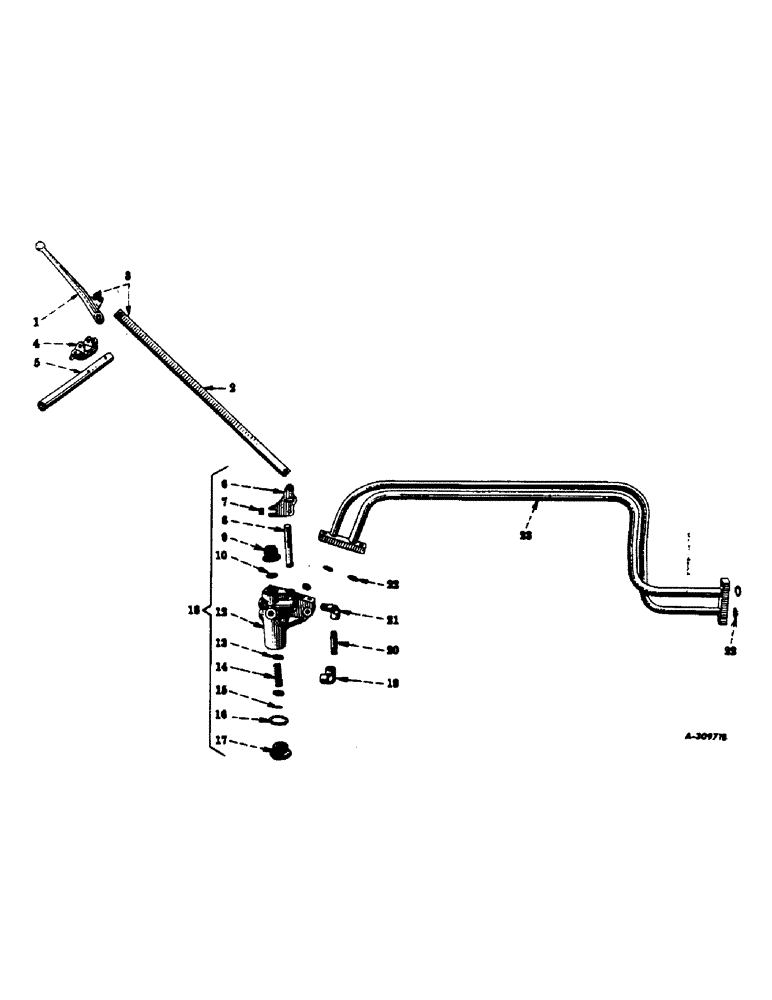

Запчасти Case IH FARMALL C (163) - HYDRAULIC SYSTEM, REMOTE CONTROL, SPECIAL, AUXILIARY CONTROL VALVE, LEVER, ROD AND MANIFOLD TUBES (07) - HYDRAULIC SYSTEM

1

356830R4

LEVER, auxiliary control valve

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, rod end, dld., 3/8 x 1-25/32"

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

2

360379R1

CHANNEL

LINK, connecting, auxiliary control valve remote control

1шт.

1161Y

PIN, rod end, 5/16 x 23/32"

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

3

360381R91

LINK, 360379R1, w/handle, 356830R4 and two pin, 1161Y

1шт.

4

356831R1

BRACKET, auxiliary control valve lever

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

657731R1

PIPE, basket (Auxiliary) Control valve lever support (For tractors with cotton picker mounting attachment) (Note A)

1шт.

6

356791R2

LEVER

auxiliary control valve

1шт.

7

356793R1

GUIDE, auxiliary control valve lever

1шт.

357557R1

LOCK PIN,1/4" x 5/8", Slotted

Pin, 1/4" x 5/8", Slotted

1шт.

8

356800R1

POST

auxiliary control valve lever

1шт.

357557R1

LOCK PIN,1/4" x 5/8", Slotted

Pin, 1/4" x 5/8", Slotted

2шт.

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

9

356790R1

INSULATOR

BOOT, auxiliary control valve

1шт.

10

356784R91

SEAL

OIL SEAL, auxiliary control valve

1шт.

12

356782R21

BODY, auxiliary control valve, assembly, Composed of

1шт.

356782R2

BODY (NSS)

1шт.

356784R91

SEAL

OIL SEAL

1шт.

444691

PLUG

1шт.

356786R1

PLUG (NSS)

1шт.

361383R1

PLUG (NSS)

1шт.

356783R1

VALVE (NSS)

1шт.

444691

PLUG

drain, hex., socket, stl., 1/4" (Optional with 362355R3)

1шт.

362355R3

PLUG

drain, sq-socket, stl., 1/4" (Optional with 444691)

1шт.

13

356796R1

WASHER

auxiliary control valve

2шт.

14

356795R1

SPRING

auxiliary control valve

1шт.

15

356797R1

RING, snap, auxiliary control valve

1шт.

16

356799R1

GASKET

auxiliary control valve bottom cap

1шт.

17

356798R1

CAP, auxiliary control valve bottom

1шт.

18

356788R92

VALVE, auxiliary control valve, assembly (Reference nos. 6 to 17 inclusive), Composed of

1шт.

356782R21

BODY

1шт.

356790R1

INSULATOR

BOOT

1шт.

356798R1

CAP

1шт.

356799R1

GASKET

1шт.

356793R1

GUIDE

1шт.

356791R2

LEVER

1шт.

357557R1

LOCK PIN,1/4" x 5/8", Slotted

Pin, 1/4" x 5/8", Slotted

3шт.

622258R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

356800R1

POST

1шт.

356797R1

RING

1шт.

356795R1

SPRING

1шт.

356796R1

WASHER

2шт.

179846

LEVER

hex-hd., 3/8-16 NC x 1-7/8"

1шт.

19

454109

ELBOW

automotive pipe, cd-pltd., 90 degrees x 1/4" (Optional with 444480) (A)

1шт.

19

444480

ELBOW

automotive pipe, brs., 90 degrees x 1/4" (Optional with 454109) (A)

1шт.

20

192053

NIPPLE, pipe, 1/4 x 2"

1шт.

21

454085

ELBOW, street, automotive, cd-pltd., 90 degrees x 1/4" (Optional with 444504)

1шт.

21

444504

ELBOW, street, automotive, brs., 90 degrees x 1/4" (Optional with 454085)

1шт.

22

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, hydraulic lift manifold flange

4шт.

23

356779R91

MANIFOLD

TUBE, manifold

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

356803R1

GASKET

auxiliary control valve

1шт.

356803R1

GASKET

auxiliary control valve plate (Note B)

1шт.

357209R1

PLATE, auxiliary control valve (Note B)

1шт.

357874R2

SCREW, cap, auxiliary control valve

2шт.
