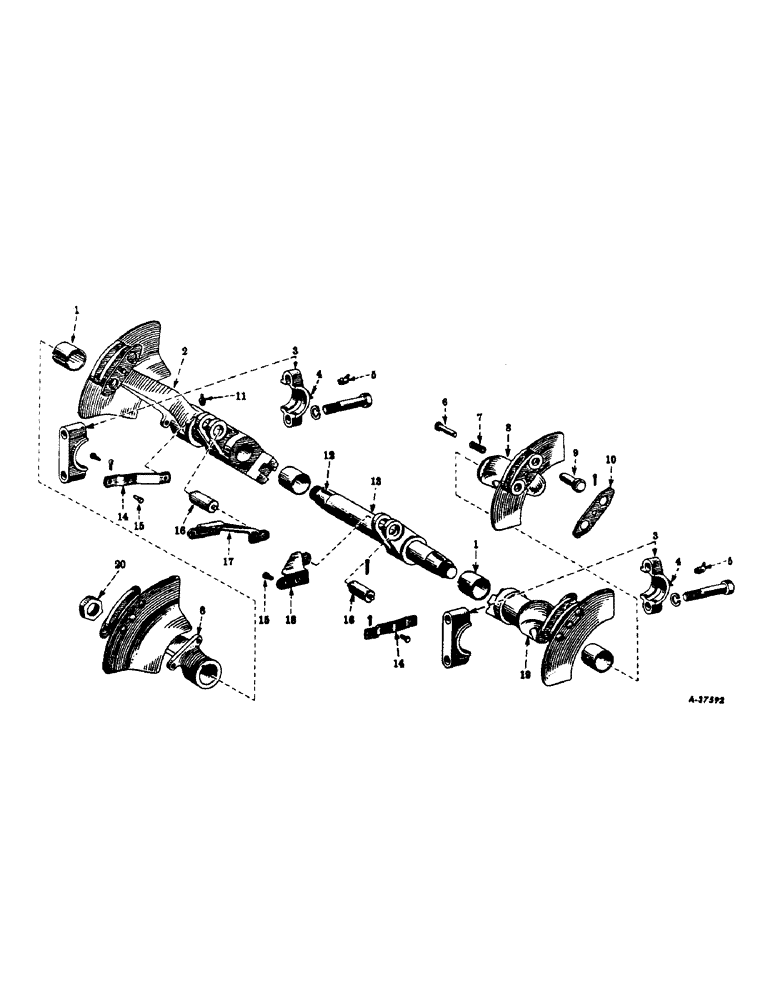

Запчасти Case IH FARMALL C (161) - HYDRAULIC SYSTEM,TOUCH-CONTROL, 4-ARM, ROCKSHAFT, ROCKSHAFT ARMS,BEARINGS,OPERATING LINK AND BRACE (07) - HYDRAULIC SYSTEM

1

350693R1

BUSHING

rockshaft inner arm (A)

4шт.

2

351401R21

ARM, inner, rockshaft, L.H., w/two bushings, 350693R1 (A)

1шт.

3

350914R91

BEARING, rockshaft support (Order 359567R92) (A)

2шт.

3

350914R93

BEARING

rockshaft support (Part of package, 359567R92) (A)

2шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

SCREW, cap, hex-hd., 5/8-11 NC x 3-1/2" (A)

4шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, cap, hex-hd., 5/8-11 NC x 3-1/2" (A), Course Threads

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A) 5/8"

4шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

lubricating, 67-1/2 degree elbow, 1/8" (Optional with 109460) (Used in bearing and cap with threaded fitting hole) (A)

2шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubricating, 67-1/2 degree elbow, 1/8" (Optional with 109350) (Used in bearing and cap with threaded fitting hole) (A)

2шт.

5

443571

FITTING

lubrication, drive type, 67-1/2 degree elbow, 3/16" (Optional with 12309R1) (Used in bearing and cap with plain fitting hole) (A)

2шт.

5

12309R1

FITTING, lubrication, drive type, 67-1/2 degree elbow, 3/16" (Optional with 443571) (Used in bearing and cap with plain fitting hole) (A)

2шт.

6

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN, rockshaft arm clevis pin lock (A)

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), (A) 1/8" x 7/8"

4шт.

7

350144R1

VALVE SPRING

SPRING, rockshaft arm clevis pin lock pin (A)

4шт.

8

350919R11

ARM, rockshaft, outer (A)

2шт.

9

350142R1

KEY

PIN, rockshaft arm clevis (A)

8шт.

10

350188R2

BAR

LOCK, rockshaft arm clevis pin (A)

4шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, drive type, straight, 3/16" (Optional with 15239E) (Used in arm with plain fitting hole) (A)

1шт.

11

15239E

FITTING

lubrication, drive type, straight, 3/16" (Optional with 443566) (Used in arm with plain fitting hole) (A)

1шт.

12

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, no. 127 (A)

2шт.

13

351400R2

ROCKSHAFT (A)

1шт.

14

350677R2

LINK, operating control valve (A)

2шт.

110501

SCREW

slotted-rd-hd., no. 10-24 NC x 5/8" (A)

4шт.

110633

NUT,#10-24

(A) #10-24

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, (A) #10

4шт.

15

350680R2

PIN

control valve operating link (A)

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A) 3/32" x 3/4"

2шт.

16

350662R1

PIN

connecting rod (A)

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

PIN, cotter, 3/16 x 1-1/4" (A)

4шт.

17

350678R1

BRACE, control valve operating link, L.H (A)

1шт.

18

350679R1

BRACE

control valve operating link, R.H (A)

1шт.

19

351402R11

ARM, rockshaft, inner R.H. w/two bushings, 350693R1 (A)

1шт.

20

15347D

NUT, rockshaft (Will work for 115781) (A)

2шт.

350917R3

BEARING, rockshaft support, R.H. (Not used with 4-arm rockshaft) (See 3-arm rockshaft)

1шт.

359567R92

BEARING

PACKAGE, service, rockshaft support (Consists of bearing, 350914R93, bearing, 350917R3 and four screws, 271569) (A)

1шт.

351399R93

ROCKSHAFT, touch-control assembly (A), Composed of

1шт.

350919R21

ARM

2шт.

351401R21

ARM

1шт.

351402R11

ARM

1шт.

350914R93

BEARING

2шт.

443571

FITTING

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING

2шт.

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY

2шт.

350188R2

BAR

LOCK

4шт.

115781

NUT

2шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

350142R1

KEY

PIN

8шт.

354400R2

ROCKSHAFT

1шт.

350144R1

VALVE SPRING

SPRING

4шт.
