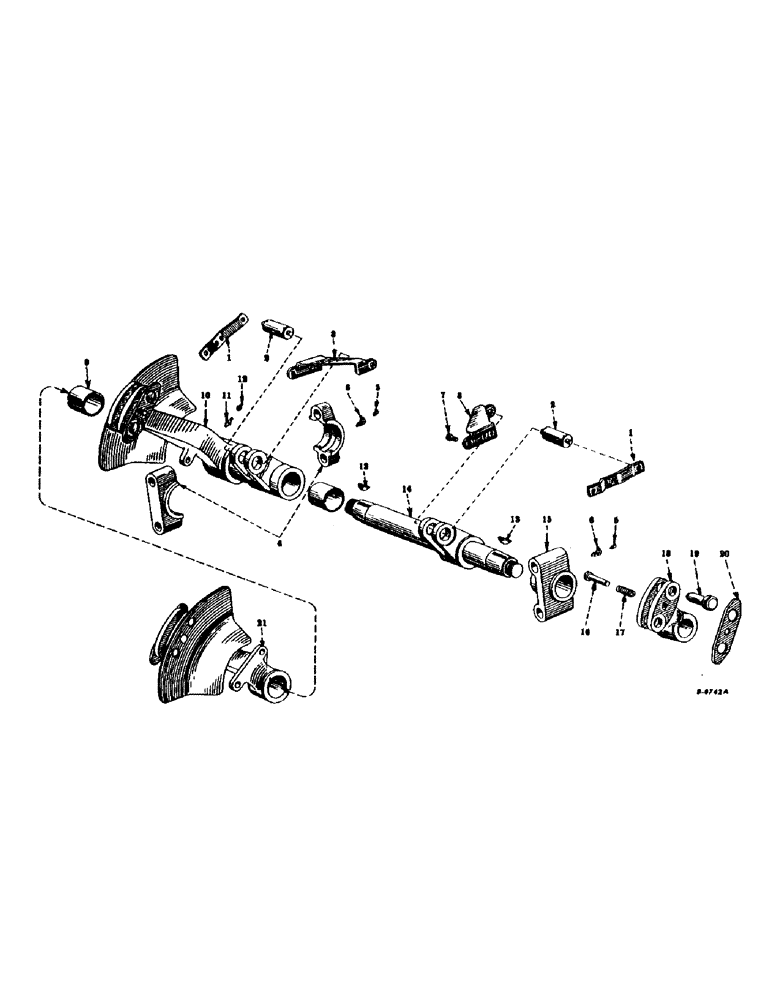

Запчасти Case IH FARMALL C (158) - HYDRAULIC SYSTEM,TOUCH-CONTROL, 3-ARM, ROCKSHAFT, ROCKSHAFT ARMS, BEARINGS,OPERATING LINK AND BRACE (07) - HYDRAULIC SYSTEM

1

355632R91

WEAR PAD

LINK, operating, control valve, 350677R2, w/pin, 350680R2 (Will work for 350677R1) (S/N 501 to 66910) (A)

2шт.

1

350677R2

LINK, operating, control valve (S/N 66911 up)

2шт.

110633

NUT,#10-24

4шт.

110501

SCREW

slotted-rd-hd., no. 10-24 NC x 5/8"

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

2

350662R1

PIN

connecting rod

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

3

350678R1

BRACE, control valve, operating link, L.H.

1шт.

4

350914R91

BEARING, rockshaft support, L.H. base, w/cap (Has 2-5/16" thick hold-down pads) (Order 359567R92) (A)

1шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

SCREW, cap, hex-hd., 5/8-11 NC x 3-1/2" (A)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A) 5/8"

2шт.

4

350914R93

BEARING

rockshaft support L.H. base, w/cap (Has 2-9/16" thick hold-down pads) (Part of package, 359567R92)

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, cap, hex-hd., 5/8-11 NC x 3-3/4", Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

271284

YOKE

lubrication, 67-1/2 degree elbow, 1/8" (Optional with 109460) (Used in bearing and cap with threaded fitting hole) (A)

2шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (Optional with 109350) (Used in bearing and cap with threaded fitting hole) (A)

2шт.

6

443571

FITTING

lubrication, drive type, 67-1/2 degree elbow, 3/16" (Optional with 12309R1) (Used in bearing and cap with plain fitting hole) (A)

2шт.

6

12309R1

FITTING, lubrication, drive type, 67-1/2 degree elbow, 3/16" (Optional with 443571) (Used in bearing and cap with plain fitting hole) (A)

2шт.

7

350680R2

PIN

control valve operating link

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

8

350679R1

BRACE

control valve operating link, R.H.

1шт.

9

350693R1

BUSHING

rockshaft inner arm

2шт.

10

363217R11

ARM, rockshaft, inner, L.H. w/two bushings, 350693R1 and guard (Will work for 350918R21)

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, drive type, straight, 3/16" (Optional with 15239E) (Used in arm with plain fitting hole) (A)

1шт.

11

15239E

FITTING

lubrication, drive type, straight, 3/16" (Optional with 443566) (Used in arm with plain fitting hole) (A)

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (Used in arm with threaded fitting hole) (A) 1/8"-27 x .66 lg

1шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461) (Used in arm with threaded fitting hole) (A)

1шт.

13

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff no. 127

2шт.

14

350913R2

ROCKSHAFT

1шт.

15347D

NUT, rockshaft (Will work for 115781)

2шт.

15

350917R1

BEARING, rockshaft support, R.H. (Has 2-5/16" thick mounting pads) (Order 359567R92) (A)

1шт.

179937

BOLT,Hex, 5/18" - 11 x 3 1/2"

SCREW, cap, hex-hd., 5/8-11 NC x 3-1/2" (A)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A) 5/8"

2шт.

15

350917R3

BEARING, rockshaft support, R.H. (Has 2-9/16" thick mounting pads) (Part of package, 359567R92)

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, cap, hex-hd., 5/8-11 NC x 3-3/4", Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN, std-hd., drilled, 1/4 x 1-5/8"

3шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

3шт.

17

350144R1

VALVE SPRING

SPRING, rockshaft clevis pin lock pin

3шт.

18

350919R2

ARM

rockshaft, R.H.

1шт.

19

350142R1

KEY

PIN, rockshaft clevis

6шт.

20

350188R2

BAR

LOCK, rockshaft clevis pin

3шт.

21

350919R21

ARM

rockshaft, outer, L.H., w/guard

1шт.

359567R92

BEARING

PACKAGE, service, strengthened rockshaft support bearing, 350914R93 w/bearing, 350917R3 and four screw, 271569 (Will work for 350914R91 and 350917R1) (A)

1шт.

350688R93

ROCKSHAFT, touch-control, assembly, Composed of

1шт.

363217R11

ARM

1шт.

350919R21

ARM

1шт.

350919R2

ARM

1шт.

350914R93

BEARING

1шт.

350917R3

BEARING

1шт.

443571

FITTING

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING

1шт.

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY

2шт.

350188R2

BAR

LOCK

3шт.

15347D

NUT

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

3шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN

3шт.

350142R1

KEY

PIN

6шт.

350913R2

ROCKSHAFT

1шт.

350144R1

VALVE SPRING

SPRING

3шт.
