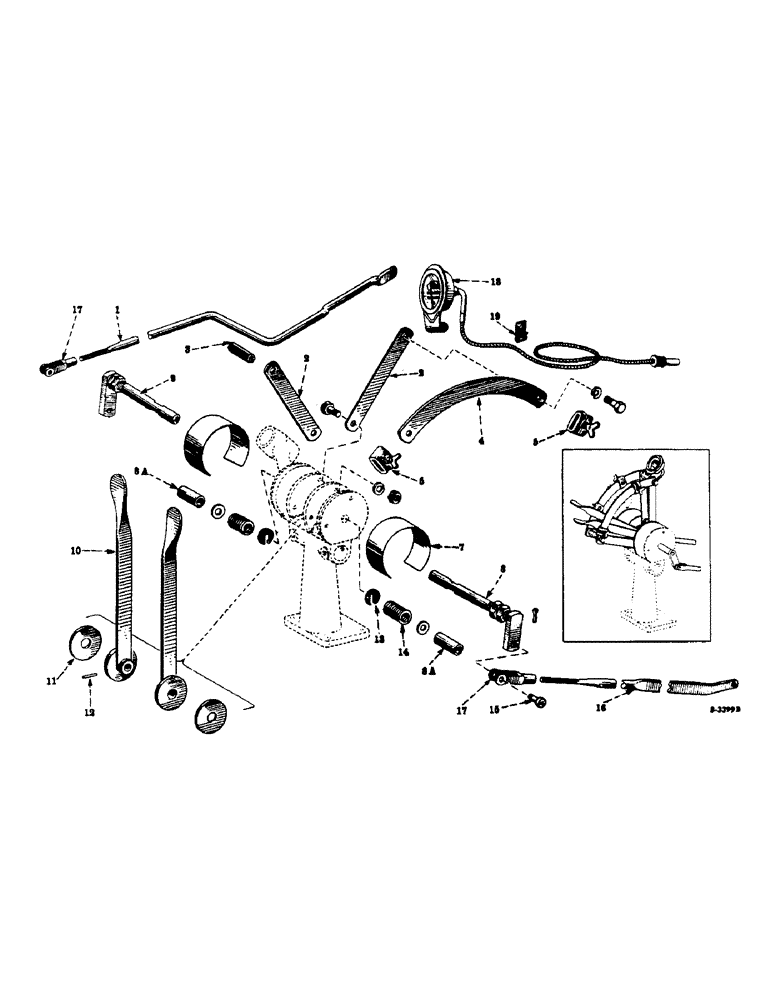

Запчасти Case IH FARMALL C (155) - HYDRAULIC SYSTEM, TOUCH CONTROL LEVERS, SHAFT, ARMS AND RODS (07) - HYDRAULIC SYSTEM

1

353192R11

ROD, touch-control, L.H. (S/N 501 to 35151, not +) (A)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24 NF (A)

2шт.

1

354375R2

ROD, touch-control, L.H. (S/N 35152 up, also +)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF

1шт.

2

350711R1

ARM, touch-control quadrant support

4шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF

4шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-28 NF x 3/4"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

354138R1

SPACER

touch-control quadrant support arm (One used with heat indicator) (S/N 39085 up)

2шт.

3

351129R1

SPACER

touch-control quadrant support arm (Order 354138R1 also screw, 181325, washer, 103319 and nut, 103024) (S/N 501 to 39084) (A)

2шт.

4

350712R1

SECTOR

QUADRANT, touch-control

2шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF (S/N 39085 up)

2шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, cap, hex-hd., 1/4-28 NF x 5/8" (S/N 501 to 39084) (A)

4шт.

181325

BOLT,Hex, 1/4" - 28 x 2 1/2", Gr 5

(S/N 39085 up) Hex, 1/4"-28 x 2 1/2", G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (S/N 39085 up) 1/4"

2шт.

(S/N 501 to 39084) (A)

4шт.

5

350717R91

INDICATOR

STOP, indicator, touch-control, w/thumb screw (Will work for 350713R91)

4шт.

7

351403R1

COVER, touch-control and steering shaft bracket support

2шт.

8

351406R91

SHAFT, hand contrl lever, R.H. (S/N 501 to 35151, not +) (A)

1шт.

8

354369R91

SHAFT, hand control lever, R.H. (S/N 35152 to 58663, also +) (A)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A) 3/32" x 3/4"

1шт.

Q1510

WASHER

steel, plain, 7/16" (A)

1шт.

8

354744R91

SHAFT, hand control lever, R.H. (S/N 58664 up)

1шт.

Q1510

WASHER

steel, plain, 7/16"

1шт.

8a

354747R1

SPACER, hand control lever shaft (S/N 58664 up)

2шт.

9

351405R91

SHAFT, hand control lever, L.H (S/N 501 to 35151, not +) (A)

1шт.

9

354368R91

SHAFT, hand control lever, L.H. (S/N 35152 to 58663, also +) (A)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A) 3/32" x 3/4"

1шт.

Q1510

WASHER

steel, plain, 7/16" (A)

1шт.

9

354743R91

SHAFT, hand control lever, L.H. (S/N 58664 up)

1шт.

Q1510

WASHER

steel, plain, 7/16"

1шт.

10

350719R13

LEVER

hand control

2шт.

11

350912R1

DISC, friction, hand control lever (S/N 501 to 35151, not +) (A)

2шт.

11

63090D

WASHER,13.1mm ID x 41.27mm OD x 3.97mm Thk

DISC, friction, hand control lever (S/N 35152 up, also +)

2шт.

12

142486

PIPE

PIN, groove, no. 1, 1/8 x 3/4" (S/N 501 to 35151, not +) (A)

2шт.

12

17157R1

LOCK PIN,5/32" x 3/4", Slotted

Pin, , hand control lever (S/N 35152 up, also +) 5/32" x 3/4", Slotted

2шт.

13

351128R1

WASHER

RETAINER, control lever shaft spring

2шт.

14

350724R1

SPRING, friction, hand control lever (S/N 501 to 58663) (A)

2шт.

14

354746R1

SPRING

friction, hand control, lever (S/N 58664 up)

2шт.

15

53368VA

PIN, end, 1/4 x 5/8" (S/N 501 to 35151, not +) (A)

2шт.

15

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, end, 1/4 x 51/64" (S/N 35152 up, also +)

2шт.

13713C

PIN, cotter 1/16 x 7/16"

2шт.

16

353193R11

ROD, touch-control, R.H. (S/N 501 to 35151, not +) (A)

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16 - 24 NF (A)

2шт.

16

354373R2

ROD, touch-conrol, R.H. (S/N 35152 up, also +)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF

1шт.

17

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE, touch-control rod (S/N 35152 up, also +)

2шт.

18

357694R91

INDICATOR

PACKAGE, field, hydraulic lift head indicator, Consists of

1шт.

61813D

CLIP

1шт.

355841R91

GAUGE

INDICATOR

1шт.

356466R91

INDICATOR

1шт.

355844R91

SCREEN

STRAINER

1шт.

355847R1

SUPPORT

2шт.

359526R1

SUPPORT

1шт.

19

61813D

CLIP

cable heat indicator (Used with 357694R91)

1шт.

355874R1

CLIP, cable, heat indicator (Used with 357694R91)

2шт.
