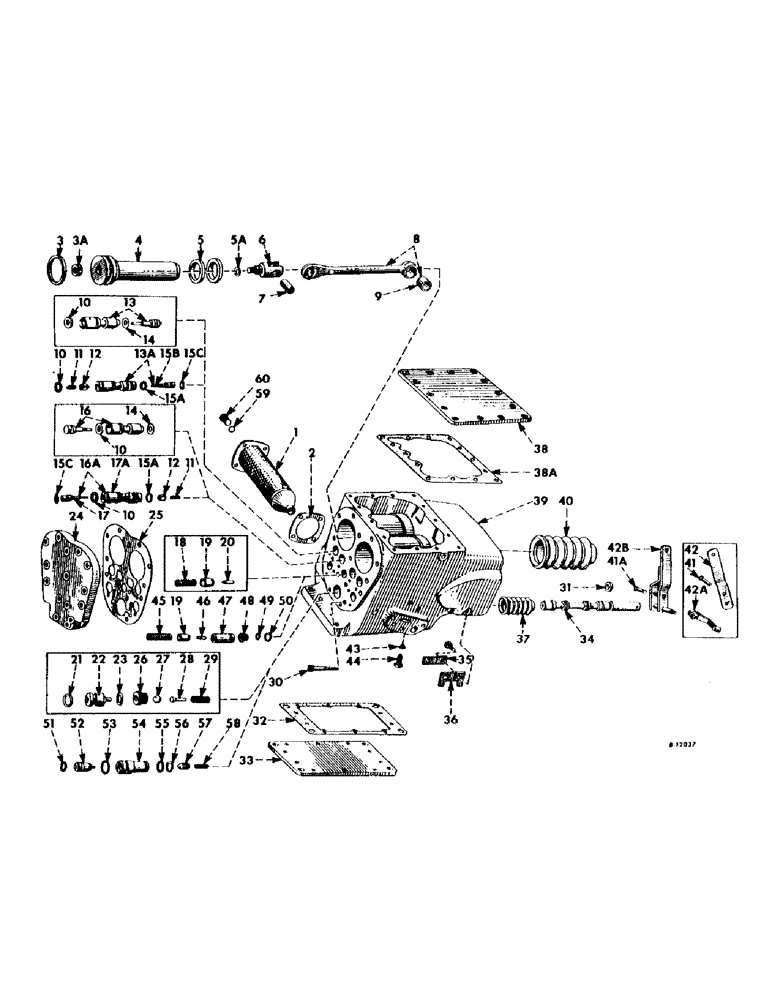

Запчасти Case IH FARMALL C (148) - HYDRAULIC SYSTEM, CYL. BLOCK & HEAD, PISTONS, RODS, REGULATOR & CHECK VALVES & CONNECTIONS (07) - HYDRAULIC SYSTEM

351384R99

TOUCH-CONTROL, assembly (S/N 501 to 41999), Composed of

1шт.

364659R91

BLOCK

1шт.

351399R93

ROCKSHAFT

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, Course Threads

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

354350R99

TOUCH-CONTROL, assembly (S/N 42000 up), Composed of

1шт.

364659R91

BLOCK

1шт.

350688R93

ROCKSHAFT

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, Course Threads

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

1

354355R91

STRAINER ASSY.

STRAINER, oil, cylinder block (For tractors not equipped with heat indicator) (Will work for 350647R91 and 355849R91)

1шт.

1

355844R91

SCREEN

STRAINER, cylinder block oil (For tractors equipped with heat indicator) (A)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20 NC x 9/16"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

350651R1

GASKET

cylinder block oil strainer

1шт.

3

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING, seal, piston head

2шт.

3a

354513R1

NUT, connecting rod yoke (With washer, 103334 will work for 145013)

2шт.

103334

LOCK WASHER

WASHER, lock, 5/8"

2шт.

4

355730R91

PISTON, 355348R91, w/ring, 352221R1 and yoke, 355353R1 (Will work for 350654R92, 350660R1 and 354387R92) (S/N 501 to 76204) (A)

2шт.

4

355348R91

PISTON (Optional with 357372R91) (S/N 76205 up)

2шт.

4

357372R91

PISTON

(Optional with 355348R91) (S/N 76205 up)

2шт.

5

350658R1

O-RING

SEAL, piston sleeve

4шт.

5a

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, connecting rod yoke (S/N 76205 up)

2шт.

6

350660R1

YOKE, connecting rod (w/o seal ring groove) (Order 355730R91 see reference no. 4) (S/N 501 to 76204) (A)

2шт.

6

355353R1

YOKE

connecting rod (w/groove for seal ring) (S/N 76205 up)

2шт.

7

350661R1

PIN, connecting, rod yoke

2шт.

8

350659R11

ROD

connecting, w/bushing, 350019R1

2шт.

9

350019R1

BUSHING

connecting rod

2шт.

10

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve bushing, center

4шт.

11

350668R1

VALVE SPRING

SPRING, check valve

4шт.

12

354057R2

VALVE

check (Will work for 350664R1) (A)

4шт.

13

ACTUATOR AND BUSHING (Has no identifying grooves) (Check valve, rear) - (Order 355365R91) (S/N 501 to 31954) (A)

2шт.

13a

355365R91

VALVE

ACTUATOR and BUSHING, check valve, rear, assembly (Will work for two 350666R21) (S/N 501 to 31954), (A) Composed of

2шт.

353953R1

SHAFT

ACTUATOR

1шт.

355369R1

VALVE

BUSHING

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING

2шт.

355967R1

O-RING,0.364" ID x 0.003" Width

RING

1шт.

354057R2

VALVE

1шт.

14

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, check valve bushing, end (13/16" O.D.) (For seal ring groove at end of bushing) (S/N 501 to 31954) (A)

4шт.

14

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve bushing (7/8" O.D.) (For seal ring groove on body of bushing) (S/N 501 to 31954) (A)

4шт.

15

355369R1

VALVE

BUSHING, check valve (w/one identifying groove), Rear (Will work for 353740R1) (S/N 31955 up)

2шт.

15a

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve bushing (7/8" O.D.) (S/N 31955 up)

4шт.

15b

353953R1

SHAFT

ACTUATOR, check valve, rear (S/N 31955 up)

2шт.

15c

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, check valve actuator (Will work for 252672R1) (S/N 31955 up)

4шт.

16

ACTUATOR AND BUSHING (Has no identifying grooves) (Check valve front) - (Order 355364R91) (S/N 501 to 31954) (A)

2шт.

16a

355364R91

ACTUATOR AND BUSHING, check valve, front, assembly (Will work for 350665R21) (S/N 501 to 31954) (A), Composed of

2шт.

353953R1

SHAFT

ACTUATOR

1шт.

355368R1

VALVE

BUSHING

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING

2шт.

355967R1

O-RING,0.364" ID x 0.003" Width

RING

1шт.

354057R2

VALVE

1шт.

17

353953R1

SHAFT

ACTUATOR, check valve, front (w/no identifyng grooves) (S/N 31955 up)

2шт.

17a

355368R1

VALVE

BUSHING, check valve, front (w/two identifying grooves) (Will work for 353738R1) (S/N 31955 up)

2шт.

18

15258E

SPRING

safety valve (Same as 350081R1) (Note A) (A)

1шт.

19

361342R1

SLEEVE

safety valve (Will work for 351868R1)

1шт.

20

351867R1

PISTON

safety valve (Note A) (A)

1шт.

21

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, pressure regulator valve piston (Note A) (A)

1шт.

22

352940R21

PISTON ASSY.

PISTON, pressure regulator valve (Note A) (A)

1шт.

23

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, pressure regulator valve seat (Note A) (A)

1шт.

24

354459R91

HEAD, cylinder, 354384R11 w/fourteen screws, 354385R1 (Will work for 3/4" thick head - 350652R1) (Used with block, 350644R1 (NSS) (S/N 501 to 35151, nut) (A)

1шт.

353330R1

BOLT (SPREADER)

SCREW, cylinder head (3/8" dia. x 1-3/8" long for 3/4" thick cylinder head) (A)

14шт.

24

354384R11

HEAD, cylinder, w/plug, 50474DA (1-1/16" thick requires - 3/8" screws) (Used with block, 350644R1 (NSS) (S/N 35152 to 36228, also) (A)

1шт.

354385R1

SCREW, cylinder head (3/8" dia. x 1-3/4" long for 1-1/16" thick cylinder head) (A)

14шт.

24

354353R11

HEAD, cylinder, w/plug, 50474DA (1-1/16" thick - requires 7/16" screws) (Used on all blocks except 350644R1 (NSS) (S/N 36229 up)

1шт.

50474DA

PLUG

pipe cylinder head

1шт.

354388R1

BOLT (SPREADER),Hex, 7/16" - 14 x 1 3/4", Gr 8

SCREW, cylinder head (7/16" dia.)

14шт.

25

353771R2

GASKET

cylinder head (Has 3/8" screw holes) (Will work for 350653R1) (Used with block, 350644R1) (NSS) (S/N 501 to 36228) (A)

1шт.

25

354354R3

CYLINDER HEAD GASKET

cylinder head (Has 7/16" screw holes) (Used on all blocks except 350644R1 (NSS) (S/N 36229 up)

1шт.

26

352025R1

FITTING

SEAT, pressure regulator valve (Note A) (A)

1шт.

27

16018R1

BALL

chrome stl., 9/16" dia. (Pressure regulator valve) (Note A) (A)

1шт.

28

350084R2

SEAT

RIDER, pressure regulator valve ball (Note A) (A)

1шт.

29

352026R2

SPRING

pressure regulator valve ball rider (Note A) (A)

1шт.

30

353853R41

ORIFICE

PLUG AND SCREEN, pressure regulator valve orifice (Will work for 351156R1) (Optional with 355372R92)

1шт.

30

355372R92

PLUG AND SCREEN, pressure regulator valve orifice (Will work for 351156R1) (Optional with 353853R41)

1шт.

31

350672R1

O-RING,0.482" ID x 0.153" Width

RING, seal, control valve

2шт.

32

350646R1

GASKET

cylinder block bottom cover

1шт.

33

350645R1

COVER, cylinder block bottom

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

34

VALVE, control (Not serviced separately, order cylinder block assembly)

2шт.

50410DA

PLUG

control valve

2шт.

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW, set, hex-socket, cup-point, 1/4-20 NC x 3/8"

2шт.

35

354360R1

BLOCK, tapping, control valve operating lever stop (Not used on blocks, 355349R1 and R2 (NSS) (S/N 36229 up)

2шт.

35

351697R1

LOCK, control valve operating lever stop (Used on blocks, 350644R1 (NSS) (S/N, Serial Range: 501-36228)

2шт.

36

351696R1

STOP

control valve operating lever (2-1/2" long) (S/N 501 to 35151 not) (A)

3шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

179814

SPACER

(A) Hex, 5/16"-18 x 5/8", G5

4шт.

36

354674R1

STOP

control valve operating lever (Not used on 355349R21) (S/N 35152 up also)

2шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

191244

SCREW,5/16" - 24 x 7/8"

cap, hex-socket-hd., 5/16-24 NF x 7/8"

4шт.

37

364832R2

CYLINDER END CAP

BOOT, control valve (Rubber) (Will work for leather boot, 351753R3)(replaces 364832R1)

2шт.

68251D

WIRE, lkg. no. 18 ga. x 4" long (Used only with leather boot)

2шт.

351812R1

WTRE, lkg. no. 18 ga. x 6-1/2" long (Used only with leather boot)

2шт.

38

355351R1

COVER, cylinder block top (With plain holes) (For open top cylinder blocks) (A)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(A) Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

38

357637R1

COVER, hydraulic cylinder block top (w/cks. holes) (For open top cylinder blocks)

1шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

machine, slotted-fl-hd., 5/16-18 NC x 3/4"

14шт.

38a

355352R1

GASKET

hydraulic cylinder block top cover (For open top cylinder blocks)

1шт.

39

354734R97

BLOCK, cylinder, assembly (Will work for 350644R13 and block, 350644R1 (NSS) (S/N 501 to 36228) (A), Composed of

1шт.

362451R92

BLOCK

1шт.

360474R1

BUSHING

1шт.

360475R1

BUSHING

1шт.

360725R1

VALVE BODY

BUSHING

1шт.

357637R1

COVER

1шт.

354354R3

CYLINDER HEAD GASKET

1шт.

355352R1

GASKET

1шт.

354353R11

HEAD

1шт.

360724R11

PISTON ASSY.

PISTON

1шт.

361341R3

PISTON ASSY.

PISTON

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING

1шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

RING

1шт.

354388R1

BOLT (SPREADER),Hex, 7/16" - 14 x 1 3/4", Gr 8

SCREW

14шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

14шт.

360476R1

VALVE SPRING

SPRING

1шт.

360727R1

SPRING WASHER

SPRING

1шт.

360728R1

VALVE SPRING

SPRING

1шт.

361340R2

VALVE SPRING

SPRING

1шт.

360726R1

LOCK VALVE

VALVE

1шт.

39

357646R96

BLOCK, cylinder, assembly (Will work for 354352R21 and blocks, 354352R1 and R2) (S/N 36229 up) (A), Composed of

1шт.

362451R92

BLOCK

1шт.

360474R1

BUSHING

1шт.

360475R1

BUSHING

1шт.

360725R1

VALVE BODY

BUSHING

1шт.

357637R1

COVER

1шт.

354354R3

CYLINDER HEAD GASKET

1шт.

355352R1

GASKET

1шт.

360724R11

PISTON ASSY.

PISTON

1шт.

361341R3

PISTON ASSY.

PISTON

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

RING

1шт.

114663

SCREW,Sl Flat Hd, 5/16" - 18 x 3/4"

14шт.

360476R1

VALVE SPRING

SPRING

1шт.

360727R1

SPRING WASHER

SPRING

1шт.

360728R1

VALVE SPRING

SPRING

1шт.

361340R2

VALVE SPRING

SPRING

1шт.

360726R1

LOCK VALVE

VALVE

1шт.

39

360633R93

BLOCK, cylinder, assembly (Will work for 355349R21, 357657R31 and blocks, 355349R1 and R2 (NSS), 357657R1 and R3 (NSS) (A), Composed of

1шт.

362451R92

BLOCK

1шт.

360474R1

BUSHING

1шт.

360475R1

BUSHING

1шт.

360725R1

VALVE BODY

BUSHING

1шт.

354354R3

CYLINDER HEAD GASKET

1шт.

360724R11

PISTON ASSY.

PISTON

1шт.

361341R3

PISTON ASSY.

PISTON

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING

1шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

RING

1шт.

360476R1

VALVE SPRING

SPRING

1шт.

360727R1

SPRING WASHER

SPRING

1шт.

360728R1

VALVE SPRING

SPRING

1шт.

361340R2

VALVE SPRING

SPRING

1шт.

360726R1

LOCK VALVE

VALVE

1шт.

39

362451R92

BLOCK, cylinder, assembly (Will work for blocks, 357657R4 and R5 (NSS), Composed of

1шт.

357657R5

BLOCK (NSS)

1шт.

3405H

GASKET

1шт.

50410DA

PLUG

18шт.

172592

SUPPORT

1шт.

359875R1

PLUG

1шт.

103867

PLUG

1шт.

350672R1

O-RING,0.482" ID x 0.153" Width

RING

2шт.

354269R1

SIEVE

SCREW

2шт.

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW

2шт.

354264R91

VALVE

2шт.

354537R1

VALVE (NSS)

2шт.

3405H

GASKET

filler plug (Used with 7/8" plug)

1шт.

365101R1

PLUG

cylinder block (Will work for 50410DA) (S/N 501 to 35151, not) (A)

18шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

(S/N 35152 up, also) (B)

16шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

63556R1

PLUG

expansion, 2" (4 used with closed top cylinder blocks)

1шт.

103867

PLUG

pipe, sq-hd., C.I., 3/8" (2 used with block, 357657R4)

1шт.

217-442

PLUG,3/4" - 14

pipe, sq-hd., C.I., 3/4" (Filler plug) (A)

1шт.

359875R1

PLUG

filler (For 7/8" hole) (Will work for 110279H and 356905R1)

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13 NC x 1-3/4"

4шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(For fuel tank supports) (B) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B) 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A) 1/2"

4шт.

39

364659R91

BLOCK, cylinder, assembly (Will work for 354351R99), Composed of reference numbers 1 to 58 inclusive, as listed in "B" column also

1шт.

350678R1

BRACE

1шт.

350679R1

BRACE

1шт.

350677R2

LINK

2шт.

110633

NUT,#10-24

4шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

350662R1

PIN

2шт.

350680R2

PIN

2шт.

355857R1

PLUG

1шт.

110501

SCREW

4шт.

355848R1

WASHER

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

40

364833R1

INSULATOR

BOOT, piston sleeve 1-1/4 in OD (Rubber) (Will work for leather boot, 351754R3)(replaces 364832R1 boot 1-1/2 in OD)

2шт.

19526D

WIRE, lkg. no. 18 ga. x 10" long (Used only with leather boot)

2шт.

68251D

WIRE, lkg., no. 18 ga. x 4" long (Used only with leather boot)

2шт.

41

350674R1

PIN, control valve (1-1/2" long) (S/N 501 to 35151, not) (A)

2шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

137130

PIN

cotter, 1/16 x 7/16" (A)

2шт.

41a

354358R1

PIN

control valve (1-11/16" long) (S/N 35152 up, also)

2шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

42

350675R11

LEVER, operating control valve, w/hub (S/N 501 to 35151, not) (A)

2шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

42a

350681R1

YOKE, control rod adjustable (S/N 501 to 35151, not) (A)

2шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

351695R1

PIN, adjustable yoke (A)

2шт.

137130

PIN

cotter, 1/16 x 7/16" (A)

2шт.

42b

354366R92

LEVER

AND PIN, control valve operating (S/N 35152 up, also)

2шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

43

354269R1

SIEVE

SCREEN, relief valve (S/N 35152 up, also) (A)

2шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

44

354264R91

VALVE

relief, w/plug, poppet, and spring (S/N 35152 up, also) (A)

2шт.

NOTE B: Used with blocks, (NSS) 357657R4 and R5 + 9208 thru 9210, 20447 thru 20449, 27899, 28402 thru 28404, 29251, 29252, 30909 thru 30913, 31733, 32031, 33172, 33765 thru 33771, 33773, 33774, 33776, 33777, 33916 thru 33920, 34154 thru 34166, 34223, 34316 thru 34318, 34321, 34322, 34496 thru 34514, 34533 thru 34536, 34538 thru 34540, 34587, 34601, 34636 thru 34645, 34722 thru 34731, 34752 thru 34790, 34792, 34794, 34797, 34808 thru 34821, 34823, 34824, 34832, 34841 thru 34867, 34876 thru 34884, 34893, 34

1шт.

45

361340R2

VALVE SPRING

SPRING, safety valve (Note B)

1шт.

46

361341R2

ELEC CONNECTOR

PISTON, safety valve (Note B)

1шт.

47

360474R1

BUSHING

outer, safety valve (Note B)

1шт.

48

360475R1

BUSHING

inner, safety valve (Note B)

1шт.

49

355966R1

O-RING,0.424" ID x 0.103" Width

RING, seal, safety valve inner bushing (Note B)

1шт.

50

360476R1

VALVE SPRING

SPRING, tension, safety valve bushing (Note B)

1шт.

51

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING, seal, pressure regulator valve piston (Note B)

1шт.

52

360724R11

PISTON ASSY.

PISTON, pressure regulator valve, w/retainer, rod, and spring (Note B)

1шт.

53

352024R2

O-RING,0.551" ID x 0.07" Width

RING, seal, rear, pressure regulator valve bushing (Note B)

1шт.

54

360725R1

VALVE BODY

BUSHING, pressure regulator valve (Note B)

1шт.

55

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING, seal, front, pressure regulator valve bushing (Note B)

1шт.

56

360727R1

SPRING WASHER

SPRING, tension, pressure regulator valve (Note B)

1шт.

57

360726R1

LOCK VALVE

VALVE, check, pressure regulator (Note B)

1шт.

58

360728R1

VALVE SPRING

SPRING, pressure regulator check valve (Note B)

1шт.

59

355848R1

WASHER, oil strainer flange boss (For tractors equipped with heat indicator) (A)

1шт.

60

355857R1

PLUG, oil strainer flange (For tractors not equipped with heat indicator) (A)

1шт.

350727R1

CLIP, governor control rod (Illustrated with governor controls) (A)

1шт.

365843R1

FLUID, hydraulic (Quart can) (Will work for 355382R1) (A)

1шт.

365622R1

TUBE

FLUID, hydraulic touch control (Gallon can) (Will work for 359450R1) (A)

1шт.

370951R1

HYTRAN FLUID "PLUS"

FLUID, hydraulic (Five gallon can) (A)

1шт.

354007R96

GASKET KIT

PACKAGE, service, cylinder block gasket and seal ring (A), Consists of

1шт.

350646R1

GASKET

1шт.

350651R1

GASKET

1шт.

350706R2

GASKET

1шт.

353771R2

GASKET

1шт.

354354R3

CYLINDER HEAD GASKET

1шт.

355352R1

GASKET

1шт.

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

RING

2шт.

355966R1

O-RING,0.424" ID x 0.103" Width

RING

1шт.

355967R1

O-RING,0.364" ID x 0.003" Width

RING

4шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING

4шт.

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

RING

2шт.

350658R1

O-RING

RING

4шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING

10шт.

350672R1

O-RING,0.482" ID x 0.153" Width

RING

2шт.

352024R2

O-RING,0.551" ID x 0.07" Width

RING

2шт.
