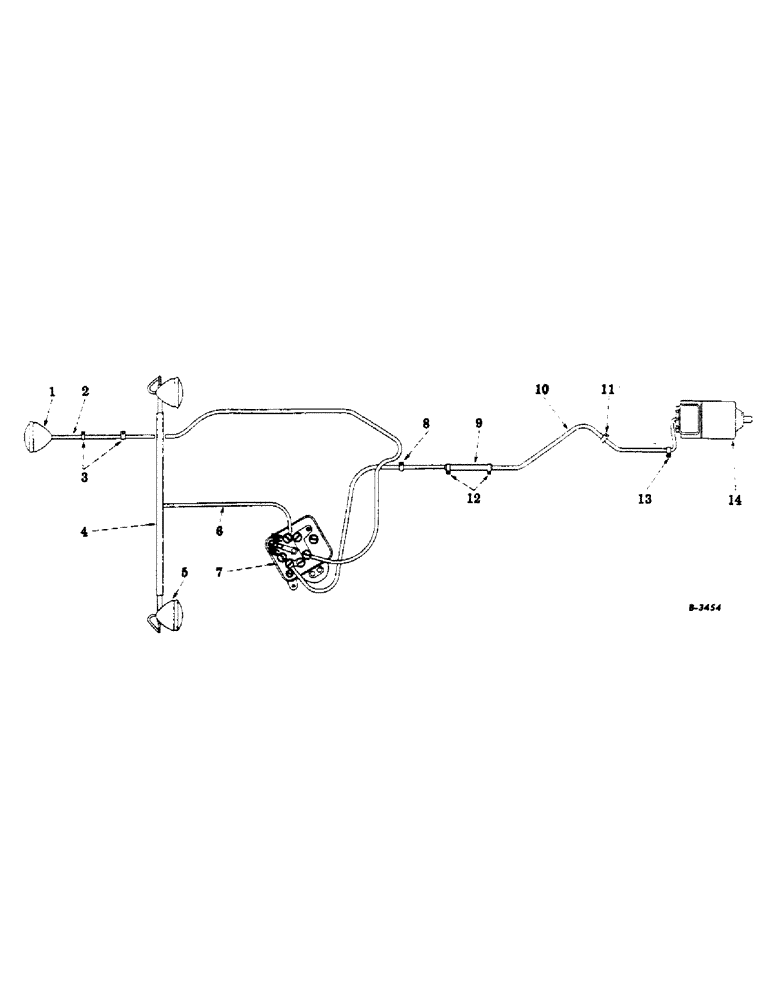

Запчасти Case IH FARMALL C (094) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING, BOSCH "NO-BATTERY" GENERATOR (06) - ELECTRICAL SYSTEMS

1

45640DB

LAMP

LIGHT, rear (Conventional) (For components see list of parts under detail of "headlight or rear light unit")

1шт.

2

358111R91

CABLE, lighting switch to rear light (Will work for 30710DX and 358118R91)

1шт.

3

60938D

CLIP (On underside of rear frame cover)

1шт.

4

351443R2

PIPE, headlight support

1шт.

139705

SCREW, set, hex-socket-hd., dog-pt., 1/4-20 NC x 1/2"

2шт.

5

45640DB

LAMP

HEADLIGHT (Conventional) (For components see list of parts under detail of "headlight or rear light unit")

1шт.

6

351917R92

CABLE

lighting, Serial Range: switch-headlights

1шт.

7

SWITCH, lighting, assembly (Delco-Remy 1994036) (For components see list of parts under detail of "lighting switch unit")

1шт.

8

60938D

CLIP (On battery box rear hold-down bolt)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

351911R1

SHIELD, cable

1шт.

10

358565R91

CABLE, generator to lighting switch (Will work for 384435DX)

1шт.

11

350742R1

CLIP (On air cleaner support bracket lower bolt)

2шт.

12

350741R1

CLIP (On touch-control cylinder block bolts)

2шт.

12

351673R1

CLIP

(On clutch housing) (For tractors not equipped with touch-control)

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

351913R1

CLIP (On generator bracket rear bolt)

1шт.

14

GENERATOR, assembly (No longer supplied for service) (See generator Bosch "no-battery" type and connections)

1шт.
