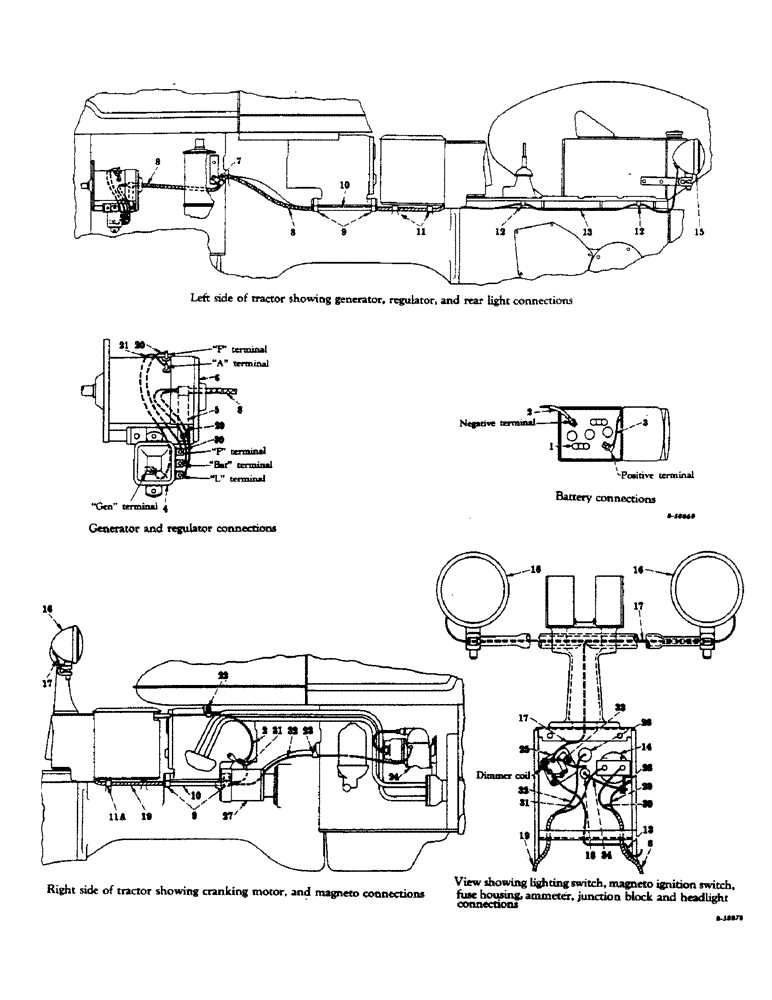

Запчасти Case IH FARMALL C (090) - ELECTRICAL SYSTEM, LIGHTING AND STARTING, MAGNETO IGNITION, SPECIAL (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
355196R93
SPARE PART BATTERY (Auto-Lite IMS-85R) (Note A)
1шт.
1
354210R91
SPARE PART BATTERY (Globe union 61 P) (Note A)
1шт.
2
350735R91
CABLE
CABLE, battery to cranking motor, w/bolt, 356062R91
1шт.
3
350736R91
CABLE
CABLE, battery to ground, w/bolt, 356062R91
1шт.
4
360898R91
REGULATOR
REGULATOR, voltage, assembly (For components see list of parts under detail of "voltage regulator") (Will work for 354234R91) (Note B)
1шт.
5
351913R1
SPARE PART CLIP, cable harness (On generator bracket rear bolt)
1шт.
6
GENERATOR, assembly (See "generator and connections")
1шт.
220065
NUT, hex., 5/16-18 NC (Note B)
1шт.
179819
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5
BOLT, (Note B) Hex, 5/16"-18 x 1 1/8", G5
2шт.
7
350742R1
SPARE PART CLIP, cable harness (On lower air cleaner mounting bolt)
1шт.
8
354243R92
HARNESS
HARNESS, cable, w/two cables (Note B)
1шт.
9
350741R1
SPARE PART CLIP, cable harness (On touch-control cylinder block mounting bolt)
4шт.
10
351911R1
SPARE PART SHIELD, cable harness
2шт.
11
355847R1
SPARE PART SUPPORT, cable harness (On battery box rear hold-down bolt) (For tractors equipped with touch-control)
2шт.
11a
60938D
SPARE PART CLIP, cable harness (On battery box rear hold-down bolt) (Two used for tractors not equipped with touch-control)
1шт.
12
61813D
CLIP
SPARE PART CLIP, rear light cable (On underside of rear frame cover)
2шт.
179834
SCREW,Hex, 3/8" - 16 x 9/16"
SCREW, cap, hex-hd., 3/8-16 NC x 9/16"
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
13
358118R91
CABLE
SPARE PART CABLE (Switch to rear light) (Will work for 30710DX and 30930DX)
1шт.
14
42383DC
AMMETER
AMMETER (AC 1501438) (Optional with 354473R91)
1шт.
14
351145R91
AMMETER
AMMETER (Rochester) (Order 354473R91)
1шт.
14
354473R91
AMMETER
AMMETER (Rochester 4010-C-6) (Optional with 42383DC)
1шт.
120614
NUT,Hex, #10 - 32
NUT, #10-32
4шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
15
45640DB
LAMP
LIGHT, rear, conventional, assembly (For components see list of parts under detail of "headlight or rear light unit")
2шт.
15
357884R91
LIGHT, rear, sealed beam, assembly (For components see list of parts under detail of "headlights or rear light")
2шт.
114774
NUT, hex., 1/2-13 NC
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
16
45640DB
LAMP
HEADLIGHT, conventional, assembly (For components see list of parts under detail of "headlight or rear light unit")
1шт.
16
357884R94
LAMP
HEADLIGHT, sealed beam, assembly (For components see list of parts under detail of "headlights or rear light")
1шт.
114774
NUT, hex., 1/2-13 NC
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
17
351917R92
CABLE
HARNESS (Headlight)
1шт.
18
351355R91
HOLDER
HOUSING, fuse (Optional with 354006R91) (Note B)
1шт.
18
354006R91
HOLDER
HOUSING, fuse (Optional with 351355R91) (Note B)
1шт.
18
354232R91
BOX
HOUSING, fuse (Bussman Mfg. Co.) (Will work for 354233R91) (Note A)
1шт.
19
358109R92
HARNESS
CABLE (Ignition and lighting) (Will work for 351915R91)
1шт.
20
358116R92
SPARE PART CABLE, generator "F" terminal to regulator "F" terminal (Will work for 354230R11)
1шт.
21
358115R91
CABLE
CABLE, generator "A" terminal to regulator "GEN" terminal (Will work for 354229R11)
1шт.
22
351914R1
CLIP
CLIP, battery cable (On fuel tank rear mounting bolt)
1шт.
23
351871R1
SPARE PART CLIP, on clutch housing bolt (Not part of attachment)
1шт.
24
351218R91
MAGNETO, assembly (Not part of attachment) (For components see list of parts under details of "magneto")
1шт.
25
SWITCH, lighting, assembly (For components see list of parts under detail of "lighting switch unit")
1шт.
26
54207DB
SWITCH
SWITCH, magneto ignition, assembly (Not part of attachment) (For components see list of parts under detail of "ignition switch")
1шт.
27
355794R91
SPARE PART MOTOR, cranking (Delco-Remy 1107093) (For components see list of parts under detail of "cranking motor")
1шт.
27
104221A2GV
STARTER MOTOR
Value, 6V, 10MT Inertia
1шт.
27
104221A2R
REMAN-STARTER
Remanufactured Starter 6 volt, 10MT intertia
1шт.
27
104221A1C
CORE-STARTER
Return Number, Starter 6 volt, 10MT inertia
1шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
BOLT, hex-hd., 1/2-13 NC x 1-1/4"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
28
42915D
BLOCK
BLOCK, junction, instrument panel (Note A)
1шт.
110503
SCREW, slotted-rd-hd., no. 10-24 NC x 7/8" (Note A)
1шт.
120217
LOCK WASHER,#10
WASHER, LOCK, (Note A) #10
1шт.
29
CABLE, regulator "L" terminal to ignition switch (Order 354243R91)
1шт.
30
CABLE, regulator "BAT" terminal to ammeter (Order 354243R91)
1шт.
31
CABLE, ammeter to cranking motor (Order 351915R91)
1шт.
32
CABLE, ignition switch to magneto (Order 351915R91)
1шт.
33
CABLE, fuse housing to lighting switch (Used with 354232R91)
1шт.
34
CABLE, fuse housing to junction block (Used with 354232R91)
1шт.
49291D
V-BELT,0.53" W
Generator
1шт.
49288DA
SPARE PART BRACE, generator
1шт.
220066
NUT, hex., 3/8-16 NC
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
95-11034
WASHER,1/4"
WASHER, steel, plain, 11/32" ID x 11/16" OD x 0.065" Thk
1шт.
354238R94
SPARE PART BRACKET, generator (Note A)
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
BOLT, cap, hex-hd., 3/8-16 NC x 7/8" (Note A)
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, (Note A) 3/8"
2шт.
250466R92
SPARE PART CLAMP, ammeter (AC 857408)
1шт.
352154R91
SPARE PART CLAMP, ammeter (Rochester RM-4000-3)
1шт.
350920R1
CLAMP
CLAMP, headlight or rear light
3шт.
351673R1
CLIP
CLIP (For 1/2" bolt) (For tractors not equipped with touch-control)
4шт.
179879
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
BOLT, Hex, 1/2"-13 x 3/4", G5, Full Thd
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
350633R3
CLIP
CLIP, choke rod, front (For tractors equipped with touch-control)
1шт.
179792
BOLT,Hex, 1/4" - 20 x 9/16"
SCREW, cap, hex-hd., 1/4-20 NC x 9/16"
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
352147R1
CLIP, choke rod, front (For tractors not equipped with touch-control)
1шт.
25-114
NUT,1/4"-28, G5
NUT, hex., 1/4-28 NF
1шт.
181311
BOLT,Hex, 1/4" - 28 x 5/8", Gr 5
SCREW, cap, hex-hd., 1/4-28 NF x 5/8"
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
354379R1
SPARE PART CLIP, choke rod (Will work for 352148R1)
2шт.
181307
BOLT,Hex, 1/4" - 28 x 3/8", Gr 5
SCREW, cap, hex-hd., 1/4-28 NF x 3/8"
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
366325R1
SPARE PART CLIP, starting switch pull rod (Will work for 352146R1)
1шт.
181307
BOLT,Hex, 1/4" - 28 x 3/8", Gr 5
SCREW, cap, hex-hd., 1/4-28 NF x 3/8"
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
8639D
SPARE PART LEVER, choke rod
1шт.
100661
SCREW, slotted-fil-hd., no. 10-32 NF x 5/8"
1шт.
106497
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
350738R1
SPARE PART LEVER, starting switch
1шт.
351443R2
SPARE PART PIPE, headlight support
1шт.
139705
SCREW, set, hex-socket-hd., dog-pt., 1/4-20 NC x 1/2"
2шт.
6812D
PULLEY
PULLEY, generator
1шт.
351444R1
SPARE PART ROD, choke
1шт.
112526
SPARE PART PIN, cotter, 1/16 x 3/8"
1шт.
366324R1
SPARE PART ROD, starting switch pull
1шт.
351814R2
SPARE PART RUBBER, battery hold-down, long
2шт.
51714D
SPARE PART RUBBER, battery hold-down, short
2шт.
49069D
SPACER
SPACER, head or rear light
3шт.
354260R1
SPACER,1/8" Pipe x 7/16"
SPACER, instrument panel junction block (Note A)
1шт.
351752R11
SPARE PART SUPPORT, rear light
1шт.
181336
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5
BOLT, Hex, 5/16"-24 x 3/4", G5, Full Thd
2шт.
352265R1
SPARE PART WASHER, ammeter clamp mounting (Rochester 4000-28-C)
2шт.
