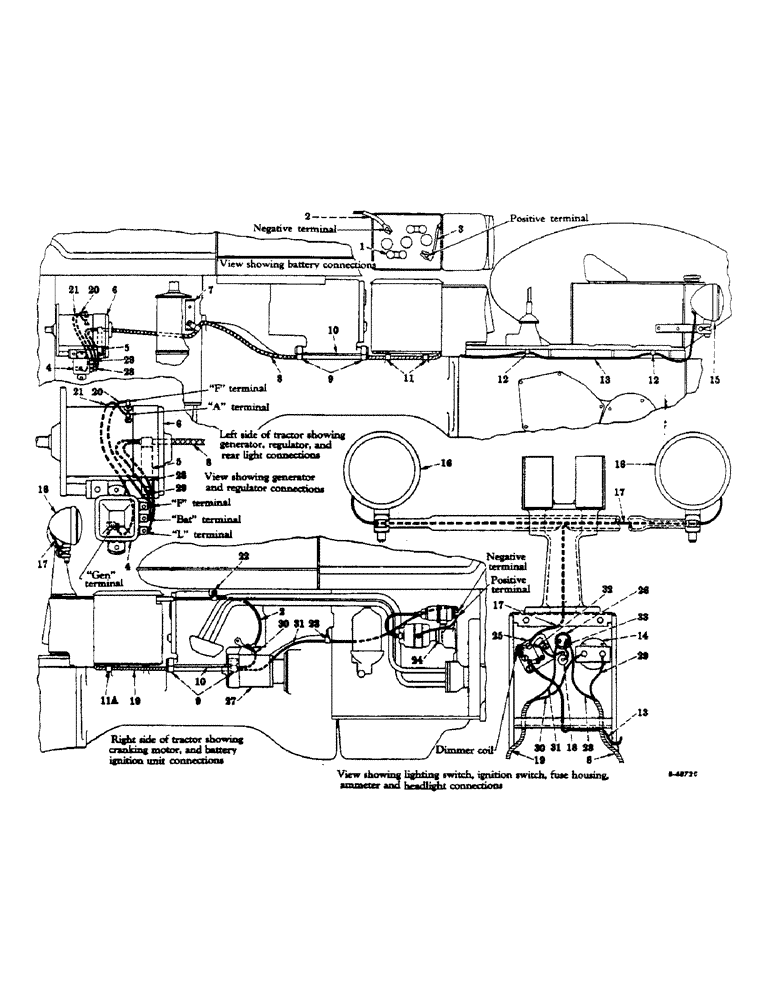

Запчасти Case IH FARMALL C (087) - ELECTRICAL SYSTEM, LIGHTING AND STARTING, BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

1

355196R93

SPARE PART BATTERY (See note)

1шт.

1

354210R91

SPARE PART BATTERY (See note)

1шт.

2

350735R91

CABLE

CABLE, battery to cranking motor, w/bolt, 356062R91

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer

1шт.

3

350736R91

CABLE

CABLE, battery to ground, w/bolt, 356062R91

1шт.

356062R91

BOLT

BOLT, terminal, w/nut, sleeve and washer

1шт.

4

360898R91

REGULATOR

REGULATOR, voltage (Will work for 354234R91) (For components see list of parts under details of "voltage regulator")

1шт.

5

351913R1

SPARE PART CLIP, cable harness (On generator bracket rear bolt)

1шт.

6

354237R91

SPARE PART GENERATOR, assembly (For components see list of parts under details of "generator")

1шт.

7

350742R1

SPARE PART CLIP, cable harness (On lower air cleaner mounting bolt)

1шт.

8

354243R92

HARNESS

HARNESS, cable, w/two cables

1шт.

9

350741R1

SPARE PART CLIP, cable harness (On touch-control cylinder block mounting bolt)

4шт.

10

351911R1

SPARE PART SHIELD, cable harness

2шт.

11

355847R1

SPARE PART SUPPORT, cable harness (On battery box rear hold-down bolt) (For tractors equipped with touch-control)

2шт.

11a

60938D

SPARE PART CLIP, cable harness (On battery box rear hold-down bolt) (Two used for tractors not equipped with touch-control)

1шт.

12

61813D

CLIP

SPARE PART CLIP, rear light cable (On underside of rear frame cover)

2шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

SCREW, cap, hex-hd., 3/8-16 NC x 9/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

358118R91

CABLE

SPARE PART CABLE, (Switch to rear light) (Will work for 30693DX and 30710DX)

1шт.

14

42383DC

AMMETER

AMMETER (Optional with 354473R91)

1шт.

14

354473R91

AMMETER

AMMETER (Optional with 42383DC)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

45640DB

LAMP

LIGHT, rear conventional (Guide lamp 873-24) (For components see list of parts under detail of "headlight or rear light unit")

1шт.

15

357884R94

LAMP

LIGHT, rear, sealed beam, assembly (Guide lamp 926115) (For components see list of parts under detail of "headlights or rear light")

1шт.

16

45640DB

LAMP

HEADLIGHT conventional (For components see list of parts under detail of "headlight or rear light unit")

2шт.

16

357884R91

HEADLIGHT, sealed beam, assembly (For components see list of parts under detail of "headlights or rear light")

2шт.

17

351917R92

CABLE

HARNESS, headlight

1шт.

18

354232R91

BOX

HOUSING, fuse (Bussman Mfg. Co.) (Will work for 354233R91)

1шт.

19

358109R92

HARNESS

CABLE (Ignition and lighting) (Will work for 351915R91)

1шт.

20

358116R92

SPARE PART CABLE, generator "F" terminal to regulator "F" terminal (Will work for 354230R11)

1шт.

21

358112R92

CABLE

CABLE, generator "A" terminal to regulator "GEN" terminal (Will work for 354229R11 or 358115R91)

1шт.

22

351914R1

CLIP

CLIP, battery cable (On fuel tank rear mounting bolt)

1шт.

23

351871R1

SPARE PART CLIP, battery ignition switch cable (On clutch housing bolt)

1шт.

24

353870R91

UNIT, battery ignition, assembly (For components see list of parts under detainls of "battery ignition unit")

1шт.

25

SWITCH, lighting, assembly (Delco-Remy 1994038) (For components see list of parts under detail of "lighting switch unit")

1шт.

26

62801DC

SWITCH

SWITCH, battery ignition (For components see list of parts under detail of "switch unit")

1шт.

27

355794R91

SPARE PART MOTOR, cranking (Delco-Remy 1107093) (For components see list of parts under detail of "cranking motor")

1шт.

27

104221A2GV

STARTER MOTOR

Value, 6V, 10MT Inertia

1шт.

27

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia

1шт.

27

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT, hex-hd., 1/2-13 NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

CABLE, regulator "L" terminal to ignition switch (Order 354243R91)

1шт.

29

CABLE, regulator "BAT" terminal to ammeter (Order 354243R91)

1шт.

30

CABLE, ammeter to cranking motor (Order 351915R91)

1шт.

31

CABLE, ignition switch to coil (Order 351915R91)

1шт.

32

CABLE, fuse housing to lighting switch (Used with 354232R91)

1шт.

33

CABLE, fuse housing to ignition switch (Used with 354232R91)

1шт.

250466R92

SPARE PART CLAMP, ammeter (AC857408)

1шт.

352154R91

SPARE PART CLAMP, ammeter (Rochester RM-4000-3)

1шт.

106653

FUSE

FUSE type AGC, 20 amp.

1шт.

29332D

LOOM, switch to rear light cable

1шт.

27618D

RING, clamp, switch to rear light cable loom

2шт.

352265R1

SPARE PART WASHER, ammeter clamp mounting (Rochester 4000-28-C)

2шт.
