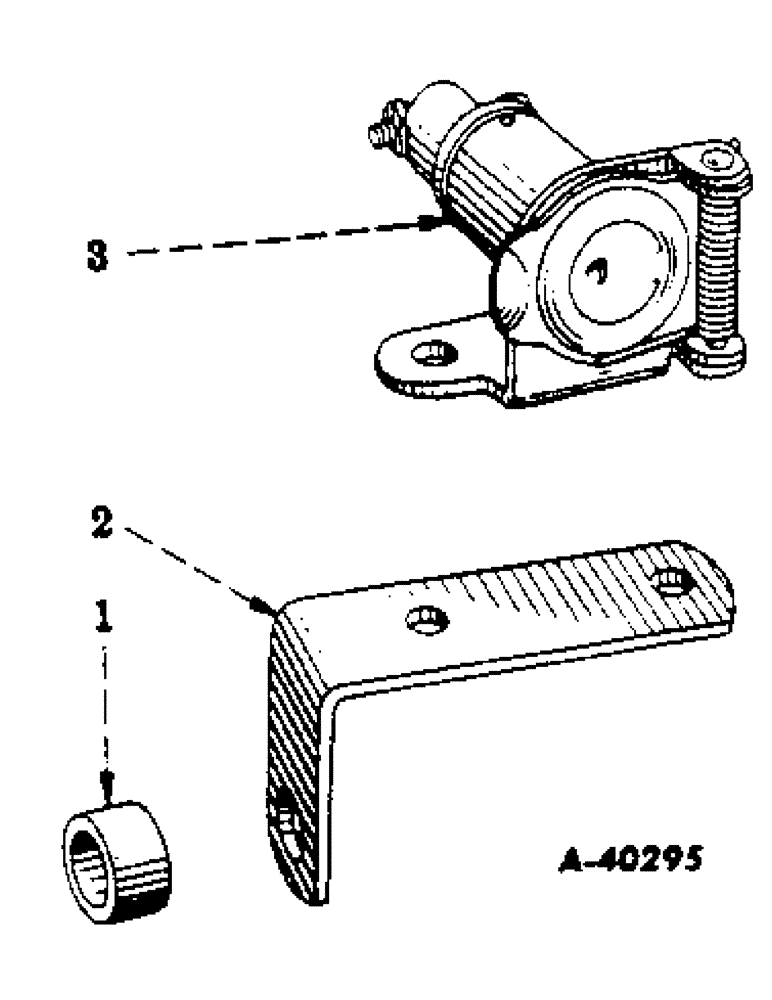

Запчасти Case IH FARMALL C (085) - ELECTRICAL SYSTEM, ELECTRICAL BREAK-AWAY CONNECTOR SOCKETS, SPECIAL (06) - ELECTRICAL SYSTEMS

363923R91

PACKAGE, electrical break-away connector socket (For tractors equipped with lighting and starting) (Used in conjunction with safety lamp package, 363914R91) (Consists of parts listed in this unit)

1шт.

1

364171R1

BRACKET

SPACER, socket mounting bracket (9/16" long)

1шт.

2

364004R1

BRACKET, break-away connector socket mounting

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

362002R92

SOCKET

electrical break-away connector, w/cap, two screws and spring

1шт.

114378

NUT, hex., 1/4-20 NC

2шт.

120572

SCREW, mach., slotted-truss-hd., 1/4-20 NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

CABLE, break-away connector socket to rear light (Order cable, 358572R92, terminal, (No. 10) and sleeve, 364003R1)

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

TERMINAL, electrical, type B, brs., no. 10

1шт.

CABLE, break-away connector socket to ground terminal (Order cable, 358572R92, terminal (7/16") and sleeve, 364003R1)

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

TERMINAL, electricla, type B, brs., 7/16"

1шт.

358572R92

1шт.

CABLE, w/two sleeves and terminals (To make two-break-away connector socket cables from this cable, measure and cut length needed for each cable from each end terminal, then assemble one sleeve, 364003R1 and one terminal, no. 10 or 7/16" to complete each cable)

1шт.

103026

NUT,3/8"-24, G5

(See note) 3/8"-24, G5

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24 x 1-1/2" (See note)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(See note) Hex, 3/8"-16 x 1", G5

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

(See note) Hex, 7/16"-14 x 3 3/4", G5

1шт.

364002R1

SPACER,3/8" Pipe x 1"

socket mounting bracket (1" long) (See note)

1шт.

TERMINAL, electrical, type B, brs., no. 10 (See note)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See note) 3/8"

1шт.
