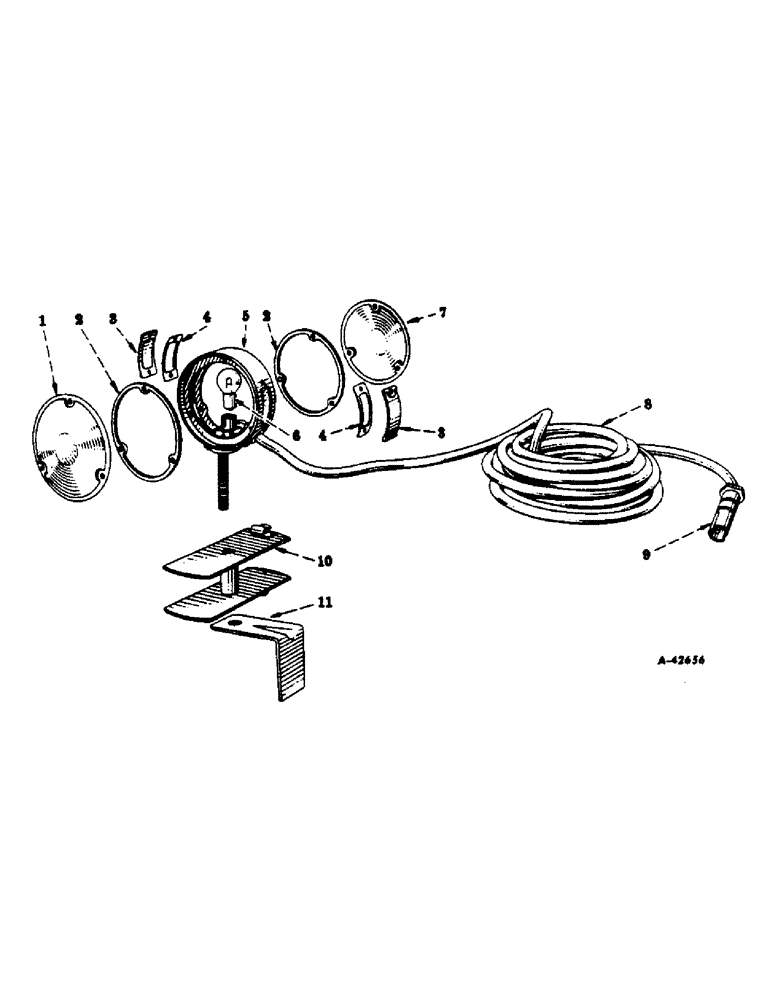

Запчасти Case IH FARMALL C (084) - ELECTRICAL SYSTEM, SAFETY LIGHT, FOR TRACTORS EQUIPPED WITH SAFTEY LIGHT PACKAGE (06) - ELECTRICAL SYSTEMS

367813R91

LIGHT, safety assembly (6 volt)

1шт.

1

120578R1

LENS, safety light (Red)

1шт.

455377

SCREW, slotted-rd-hd., cd-pltd., no. 6-32 NC x 1/2"

3шт.

2

120576R1

GASKET, safety light lens

2шт.

3

365754R1

LENS, safety light outlook

2шт.

145181

BRACKET

SCREW, tapping, slotted-pan-hd., cd-pltd., no. 6-20 x 5/16"

4шт.

4

365755R1

GASKET, safety light outlook lens

2шт.

5

BODY, safety light (Not serviced separately - order safety light assembly)

1шт.

120365

NUT, hex., cd-pltd., 7/16-14 NC

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

6

103642

GLAND,#1129, Type C-6, 6V

LAMP, no. 1129 (6 volt)

1шт.

7

120577R1

LENS, safety light (Amber)

1шт.

455377

SCREW, slotted-rd-hd., cd-pltd., no. 6-32 NC x 1/2"

3шт.

8

365752R91

CABLE, safety light (22 ft.)

1шт.

9

364559R91

PLUG

break-away connector socket (For used with 21/64" O.D. cable)

1шт.

10

365753R91

SPOOL, safety light

1шт.

11

365756R1

BRACKET, safety light mounting, w/clip

1шт.
