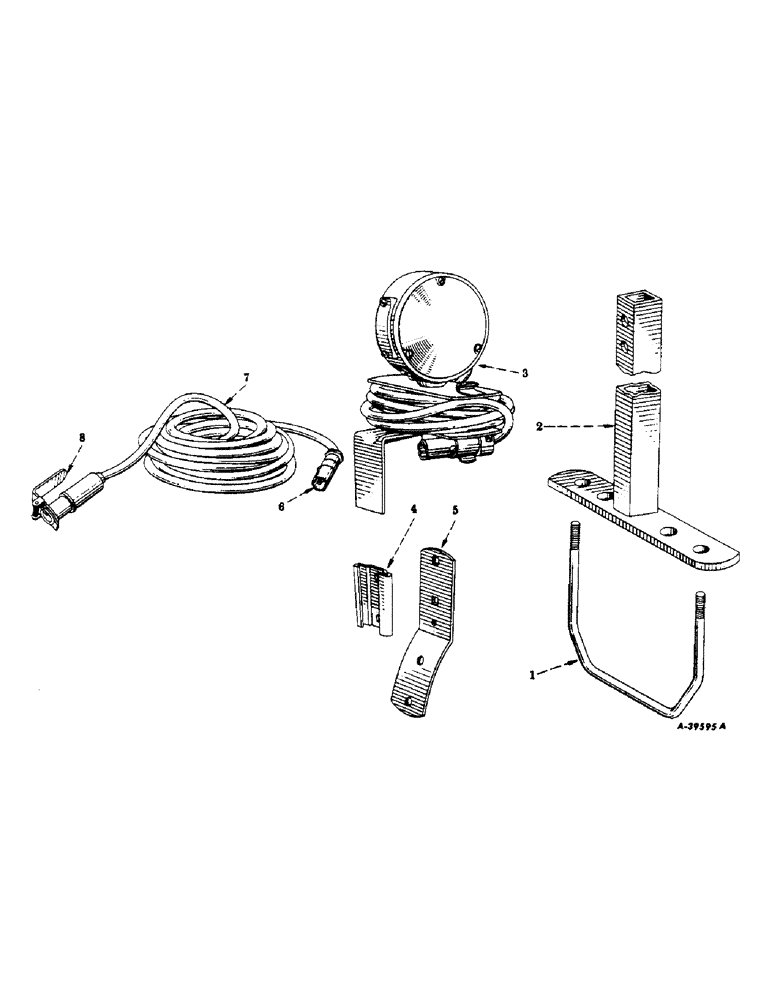

Запчасти Case IH FARMALL C (082) - ELECTRICAL SYSTEM, SAFETY LIGHT, EXTENSION CABLE AND SUPPORTS, SPECIAL (06) - ELECTRICAL SYSTEMS

363914R91

PACKAGE, safety light (6 volt) (For tractors equipped with electrical break-away connector socket) (Consists of parts listed in this unit except as noted)

1шт.

1

364291R1

BOLT, "U" safety lamp support (Note A)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20 NC (Note A)

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

364290R11

SUPPORT, safety lamp (Note A)

1шт.

27480R1

CARRIAGE BOLT,5/16" x 2", Gr 5

BOLT, carriage, short sq-neck., 5/16-18 NC x 2" (Note A)

2шт.

9635082

NUT,5/16" - 18, Gr 5

(Note A) 5/16"-18, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Note A) 5/16"

2шт.

3

367813R91

LIGHT, safety, assembly (6 volt) (For components see list of parts under details of "safety light")

1шт.

4

363919R1

SOCKET

safety light bracket

1шт.

14990R1

BOLT

carriage, sq-nk., 5/16-18 NC x 5/8"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

363920R1

BRACKET, safety light

1шт.

120376

NUT,5/16"-18, G5

2шт.

142849

SCREW, machine, slotted-truss-hd., cd-pltd., 5/16-18 NC x 1-1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

364559R91

PLUG

break-away connector socket (For use with 21/64" O.D. cable) (Used with the extension cable) (Note B)

1шт.

7

365444R91

CABLE, extension, twenty-four ft., w/plug, 364559R91 and socket, 365446R91) (Special) (For tractors equipped with electrical break-away connector socket) (Note B)

1шт.

8

365446R91

SOCKET/RECEPTACLE

SOCKET, break-away connector, w/cap, cover and spring (Used with the extension cable) (Note B)

1шт.
