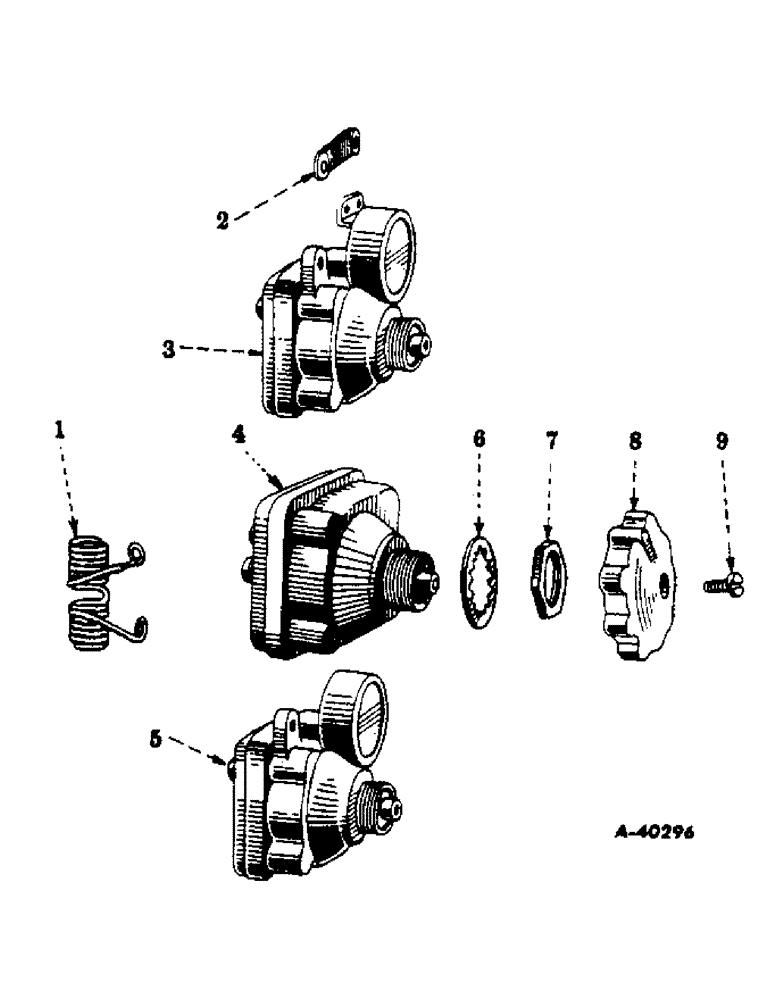

Запчасти Case IH FARMALL C (081) - ELECTRICAL SYSTEM, LIGHTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

COIL, resistance, lighting switch dimmer (6 volt) (Mfr. no 814545)

1шт.

1882994

SCREW, dimmer coil attaching (Mfr. no 1882994)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

2

RESISTANCE, generator field (A) (Mfr. no 1878070)

1шт.

SCREW, generator resistance attaching (A) (Mfr. no 1864099)

2шт.

WASHER, lock, generator resistance attaching screw (A) (Mfr. no 1873844)

2шт.

3

SWITCH, lighting (Not serviced separately - order switch assembly) (A)

1шт.

SCREW, terminal (5/16" long) (A) (Mfr. no 1864099)

1шт.

SCREW, terminal (3/8" long) (A) (Mfr. no 1882994)

4шт.

WASHER, lock, terminal screw (A) (Mfr. no 183844)

5шт.

4

SWITCH, lighting (Not serviced separately - order switch assembly) (B)

1шт.

SCREW, terminal (3/8" long) (B) (Mfr. no 1882994)

4шт.

WASHER, lock, terminal screw (B) (Mfr. no 1873844)

4шт.

5

SWITCH, lighting (Not serviced separately - order switch assembly) (C)

1шт.

SCREW, terminal (3/8" long) (C) (Mfr. no 1882994)

4шт.

WASHER, lock, terminal screw (C) (Mfr. no 1873844)

4шт.

6

WASHER, lock, internal-tooth, 11/16" (Mfr. no 141706)

1шт.

7

NUT, mounting lighting switch (Mfr. no 1882012)

1шт.

8

KNOB, lighting switch (See note) (Mfr. no 1882013)

1шт.

8

KNOB, lighting switch (Not illustrated) (This part is included in the switch assembly that is also used on other tractors) (B) (Mfr. no 1930685)

1шт.

9

SCREW, mounting lighting switch knob (Mfr. no 1864099)

1шт.

WASHER, lock, medium, cd-pltd., no. 8 (Mfr. no 121841)

1шт.
