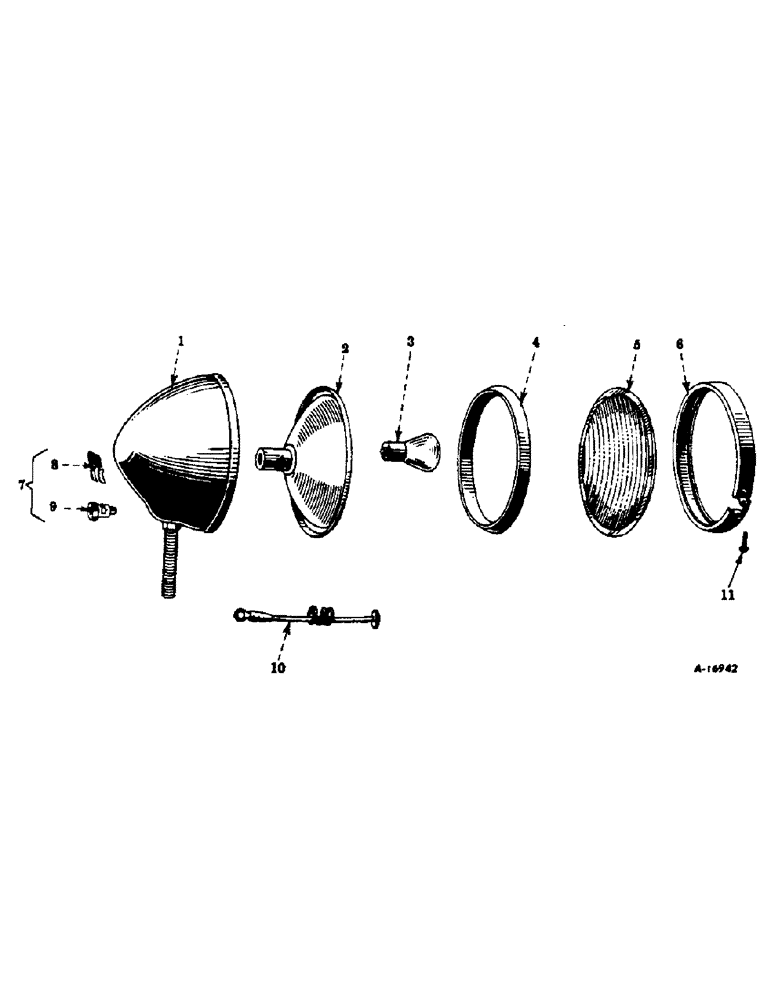

Запчасти Case IH FARMALL C (075) - ELECTRICAL SYSTEM, HEADLIGHT OR REAR LIGHT, CONVENTIONAL (06) - ELECTRICAL SYSTEMS

45640DB

LAMP

HEADLIGHT OR REAR LIGHT (Conventional) assembly (6 volt)

1шт.

1

53522DA

BODY

1шт.

2

53523D

REFLECTOR

1шт.

3

B50206

LAMP

no. 1133 (6 volt)

1шт.

4

53527D

GASKET

1шт.

5

50478R1

LENS

1шт.

6

53525DA

MOLDING

MOULDING

1шт.

7

68417D

INSULATOR

PLATE, terminal, assembly, Composed of

1шт.

79407H

PLATE

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

2шт.

79408H

SPRING

1шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

8

79408H

SPRING, terminal plate

1шт.

9

79407H

PLATE

terminal

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

slotted-rd-hd., cd-pltd., no. 8-32 NC x 5/16"

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

10

53524D

CABLE

1шт.

11

53526D

SCREW

moulding

1шт.
