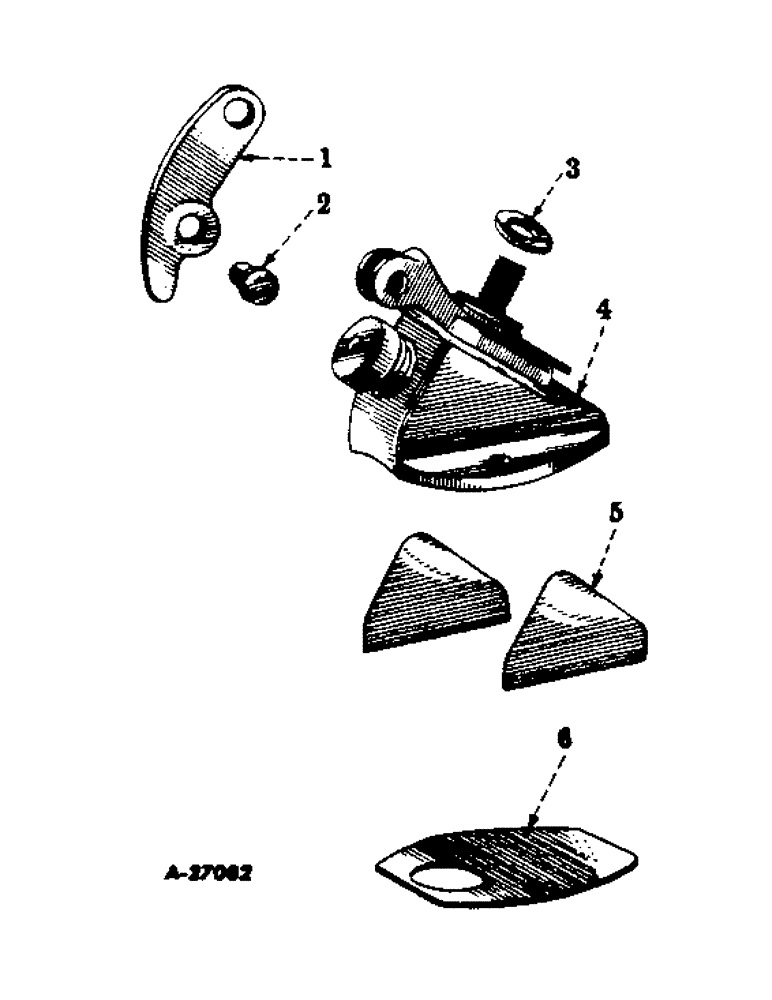

Запчасти Case IH FARMALL C (073) - ELECTRICAL SYSTEM, STARTING SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

SWITCH, starting, assembly (Composed of parts listed in this unit except as noted) (Mfr. no 1918405)

1шт.

1

LEVER, starting switch (Used with die case switch) (Mfr. no 1918322)

1шт.

1

350738R1

LEVER, starting switch (Used with sheet metal switch) (See note)

1шт.

2

PIN, switch lever (Mfr. no 1880254)

1шт.

PIN, cotter, cd-pltd., 1/16 x 7/16" (Mfr. no 137133)

1шт.

3

WASHER, plain, 3/8" I.D. x 11/16" O.D. x 1/32" (Mfr. no 142186H)

1шт.

NUT, hex., cd-pltd., 3/8-16 NC (Mfr. no 134566)

1шт.

WASHER, lock, light, 3/8" (Mfr. no 11073)

1шт.

4

SWITCH (Order 1918405)

1шт.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32 NF x 1/4" (See note) (Mfr. no 1322892)

2шт.

WASHER, lock, medium, no. 10 (See note) (Mfr. no 106497)

2шт.

5

INSULATION, side, starting switch (Mfr. no 816911)

2шт.

6

GASKET, starting switch (See note) (Mfr. no 1912376)

1шт.
