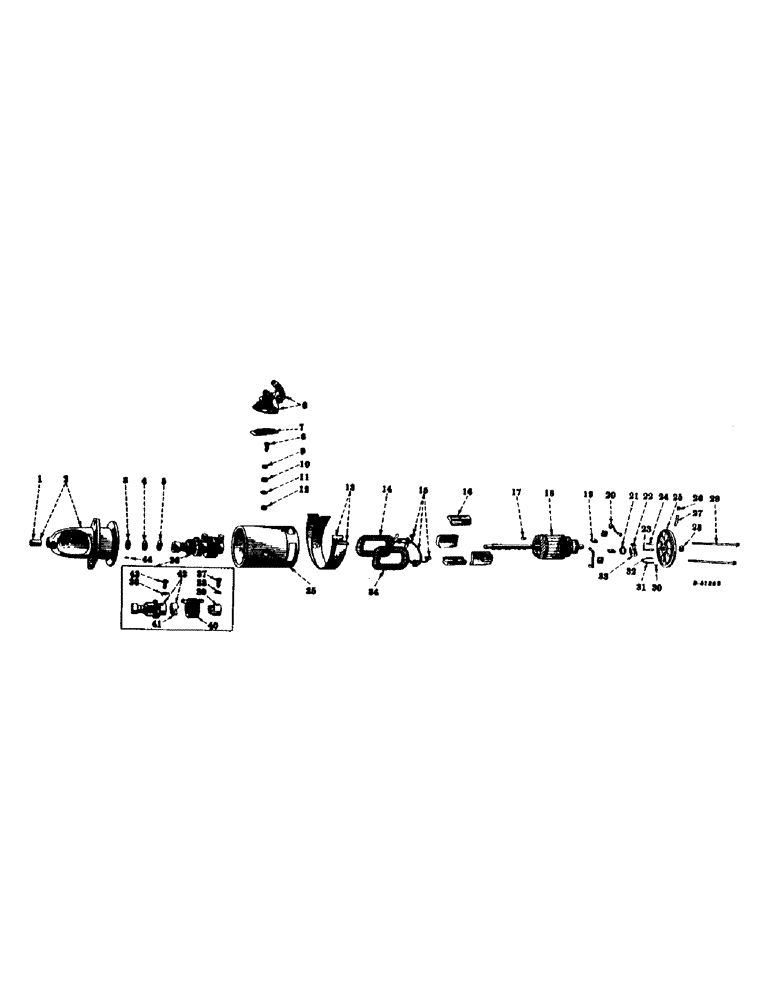

Запчасти Case IH FARMALL C (070) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

355794R91

SPARE PART MOTOR, cranking (Will work for 251384R91) (Mfr. no. 1107093)

1шт.

104221A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT intertia

1шт.

104221A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT inertia

1шт.

251384R91

MOTOR, cranking, assembly (Order 355794R91) (This motor has the same service parts as 1107093) (Mfr. no. 1107067)

1шт.

1

BUSHING, drive housing (Not serviced separately - order 1910093)

1шт.

2

HOUSING, drive w/bushing (Mfr. no 1910093)

1шт.

3

WASHER, space, drive end (1/16" x 63/64" O.D.) (Mfr. no 833602)

1шт.

4

WASHER, space, drive end (3/32" x 1-1/16" O.D.) (Mfr. no 1849774)

1шт.

5

WASHER, spacer, drive end (1/16" x 1-1/16" O.D.) (Mfr. no 809815)

1шт.

6

SWITCH, starting, assembly (For components see list of parts under details of "starting switch") (Mfr. no 1918405)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32 NF x 1/4" (Mfr. no 132892)

2шт.

.

WASHER, lock, medium, no. 10 (Mfr. no 132892)

2шт.

7

GASKET, starting switch (Mfr. no 1912376)

1шт.

8

STUD, terminal field (Mfr. no 821524)

1шт.

9

WASHER, insulating, terminal stud (Mfr. no 1904669)

2шт.

10

WASHER, insulating, terminal stud (Mfr. no 1861076)

2шт.

11

WASHER, terminal stud, plain (1/32" thick) (Mfr. no 812622)

2шт.

11

WASHER, terminal stud, plain (1/16" thick) (Mfr. no 805790)

1шт.

12

NUT, terminal stud (Mfr. no 805258)

1шт.

13

BAND, cover, w/nut, 120614 and screw, 132926 (Mfr. no 1886923)

1шт.

.

NUT, hex., no. 10-32 NF (Mfr. no 120614)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32 NF x 1-1/4" (Mfr. no 132926)

1шт.

14

COIL, field (Upper) (Mfr. no 812407)

1шт.

15

LEAD, and field connector, brush (Mfr. no 819362)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32 NF x 1/4" (Mfr. no 132892)

2шт.

.

WASHER, lock, no. 10 (Mfr. no 106497)

2шт.

16

SHOE, pole (Mfr. no 810601)

4шт.

.

SCREW, pole shoe (Mfr. no 1881869)

4шт.

17

KEY, Woodruff, no. 6 (Mfr. no 124546)

1шт.

18

ARMATURE (Mfr. no 818002)

1шт.

19

BRUSH (Mfr. no 811553)

4шт.

.

SCREW, slotted-rd-hd., blued, no. 6-32 NC x 1/2" (Mfr. no 115903)

4шт.

.

WASHER, lock, no. 6 (Mfr. no 106495)

4шт.

20

LEAD, brush ground (Mfr. no 813554)

2шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 8-32 NC x 1/4" (Mfr. no 122159)

2шт.

.

WASHER, lock, no. 8 (Mfr. no 121841)

2шт.

21

WASHER, space, commutator end (Mfr. no 833602)

1шт.

22

SPRING, brush (Mfr. no 813521)

4шт.

23

PIN, brush holder hinge, w/insulation (Mfr. no 812016)

2шт.

24

PIN, brush holder stop, w/insulation (Mfr. no 812015)

2шт.

25

FRAME, commutator end, assembly, Composed of (Mfr. no 1881625)

1шт.

.

FRAME (NSS)

1шт.

.

OILER (Mfr. no 1880642)

1шт.

.

PIN (Mfr. no 809062)

1шт.

.

PIN (Mfr. no 812015)

2шт.

.

PIN (Mfr. no 812016)

2шт.

.

PIN (Mfr. no 817313)

2шт.

.

PIN (Mfr. no 817314)

2шт.

.

PLUG (Mfr. no 1865182)

1шт.

.

WICK (Mfr. no 802691)

1шт.

26

OILER, commutator, w/cap and spring (Mfr. no 1880642)

1шт.

27

WICK, oil, commutator end (Mfr. no 802691)

1шт.

28

PLUG, expansion, commutator end frame (Mfr. no 1865182)

1шт.

29

BOLT, thru (Mfr. no 80905)

2шт.

.

WASHER, lock, medium, cd-pltd., 1/4" (Mfr. no 120380)

2шт.

30

PIN, dowel, commutator end (Mfr. no 809062)

1шт.

31

PIN, brush holder hinge (Mfr. no 817313)

2шт.

32

PIN, brush holder stop (Mfr. no 8717314)

2шт.

33

HOLDER, brush (Mfr. no 810226)

4шт.

34

COIL, field (Lower) (Mfr. no 812406)

1шт.

35

FRAME (Not serviced separately - order cranking motor assembly)

1шт.

36

DRIVE, motor, assembly, Composed of (Mfr. no 1868804)

1шт.

.

GEAR AND SHAFT (Mfr. no 1855629)

1шт.

1848530

HEAD (Mfr. no 1848530)

1шт.

.

SCREW (Mfr. no 1848530)

1шт.

.

SCREW (Mfr. no 1850811)

1шт.

.

SPRING (Mfr. no 1860639)

1шт.

.

WASHER (Mfr. no 805057)

2шт.

37

SCREW, motor drive spring (Mfr. no 1850811)

1шт.

38

WASHER, lock, drive spring screw (Mfr. no 805057)

2шт.

39

HEAD, motor drive (Mfr. no 1848530)

1шт.

40

SPRING, motor drive (Mfr. no 1860639)

1шт.

41

SLEEVE, motor drive (Mfr. no 1849782)

1шт.

42

GEAR AND SHAFT, motor drive, w/sleeve, 1849782 and spring (Mfr. no 1855629)

1шт.

43

SCREW, motor drive spring (Mfr.no 1850810)

1шт.

44

PIN, dowel, drive end (Mfr. no 809593)

1шт.
