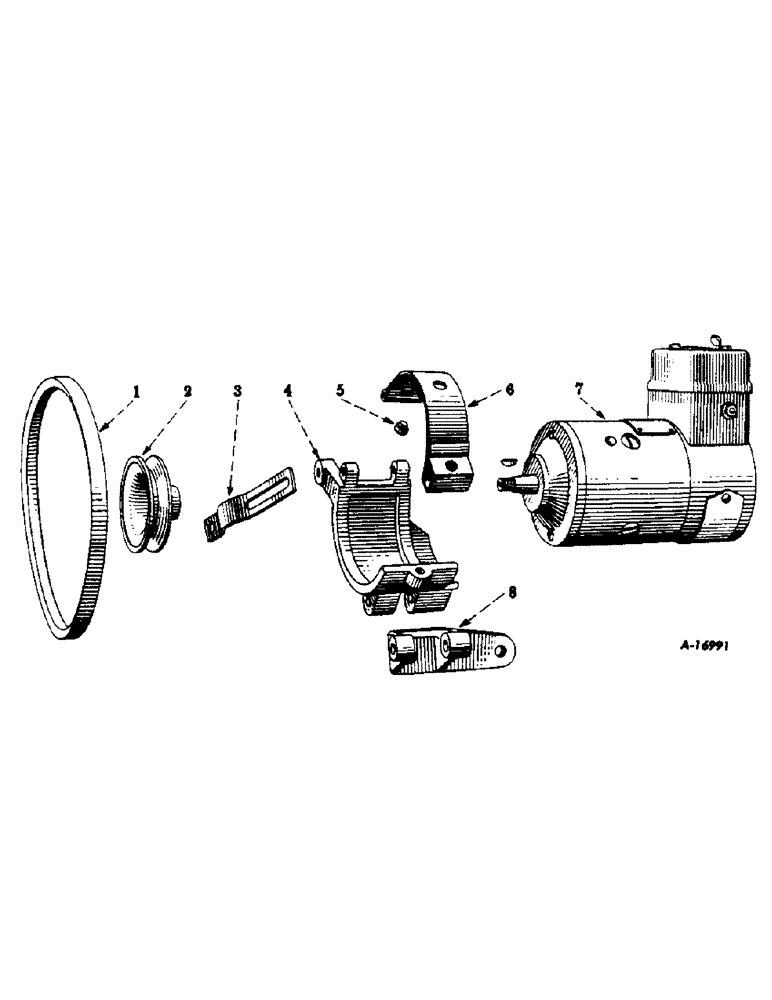

Запчасти Case IH FARMALL C (068) - ELECTRICAL SYSTEM, GENERATOR, BOSCH "NO-BATTERY" TYPE, AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

52318DA

V-BELT,0.55" W

Generator 0.55" W

1шт.

2

9191D

PULLEY, generator

1шт.

3

61469DA

BRACE, generator

1шт.

220066

NUT, hex., 3/8-16 NC

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11034

WASHER,1/4"

steel, plain, 5/16"

1шт.

4

9190D

SADDLE, generator

1шт.

103026

NUT,3/8"-24, G5

1шт.

186312

BOLT

SCREW, cap, hex-hd., 3/8-24 NF x 4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

28309D

PIN, dowel, generator

1шт.

6

26080DB

STRAP, generator

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

181326

SCREW, cap, hex-hd., 1/4-28 NF x 2-3/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

61875D

GENERATOR, assembly, w/o pulley (Bosch no. ARJF 75/6-900-A16) (No longer supplied for service) (See note)

1шт.

8

9189D

BRACKET, generator

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
