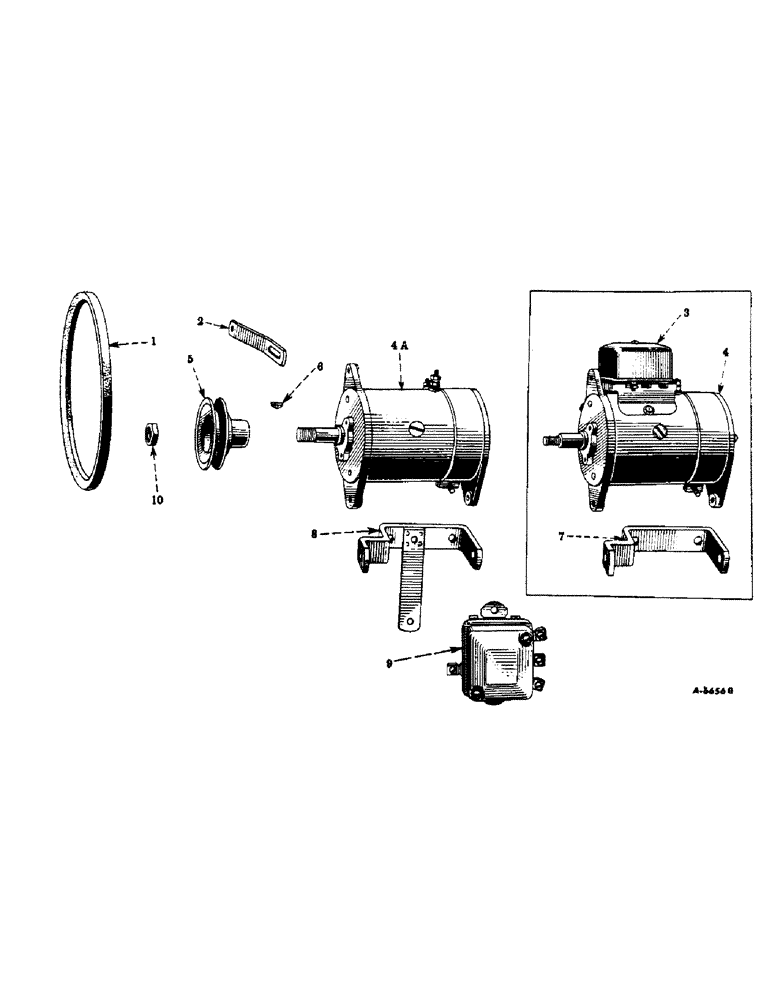

Запчасти Case IH FARMALL C (061) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY, AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

49291D

V-BELT,0.53" W

Generator 0.53" W

1шт.

2

49288DA

BRACE, generator

1шт.

2

60714DA

SUPPORT

BRACE, generator (Used on tractors equipped with water pump attachment)

1шт.

102635

NUT,3/8"-16, G5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

(Used on tractors equipped with water pump attachment) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.

1шт.

3

46412D

GENERATOR

RELAY, generator, assembly (Note A)

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, slotted-rd-hd., cd-pltd., no. 10-32 NF x 3/8" (Note A)

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, lock, external tooth, cd-pltd., no. 10 (Note A)

2шт.

120391

WASHER,#10

cd-pltd., 7/32" I.D. x 1/2" O.D. x no. 18 ga. (Note A)

2шт.

4

356936R91

GENERATOR

assembly (Will work for 45634D) (Note A), Composed of

1шт.

356938R91

CABLE

1шт.

356939R91

CABLE

1шт.

356937R91

GENERATOR

1шт.

46412D

GENERATOR

RELAY

1шт.

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW

2шт.

120391

WASHER,#10

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER

2шт.

4

356937R91

GENERATOR

assembly (For components see list of parts under detail of "generator") (Note A)

1шт.

220065

NUT, hex., 5/16-18 NC (Note A)

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, (Note A) 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), (Note A) 3/32" x 1"

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Note A) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Note A) 5/16"

2шт.

Q1520

WASHER

steel, plain, 1/2" (Note A)

1шт.

4a

354237R91

GENERATOR, assembly (For components see list of parts under detail of "generator") (Note B)

1шт.

220065

NUT, hex., 5/16-18 NC (Note B)

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

(Note B) Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Note B) 5/16"

2шт.

5

6812D

PULLEY

generator

1шт.

6

103905

KEY

Woodruff, no. 5

1шт.

7

49287DD

BRACKET, generator (Note A)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16 NC x 7/8" (Note A)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note A) 3/8"

2шт.

8

354238R94

BRACKET, generator (Note B)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16 NC x 7/8" (Note B)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note B) 3/8"

2шт.

9

360898R91

REGULATOR

voltage assembly (Will work for 354234R91) (Note B) (For components see list of parts under detail of "voltage regulator")

1шт.

179789

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

cap, hex-hd., 1/4-20 NC x 5/16" (Note B)

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (Note B) 1/4"

2шт.

10

NUT, armature shaft (Delco-Remy 1914308)

1шт.

WASHER, lock, armature shaft nut (Delco-Remy 804000)

1шт.

356938R91

CABLE, generator "A" terminal to ground (Used with generator, 356937R91) (Note A)

1шт.

356939R91

CABLE, generator "F" terminal to relay "F" terminal (Used with generator, 356937R91) (Note A)

1шт.
