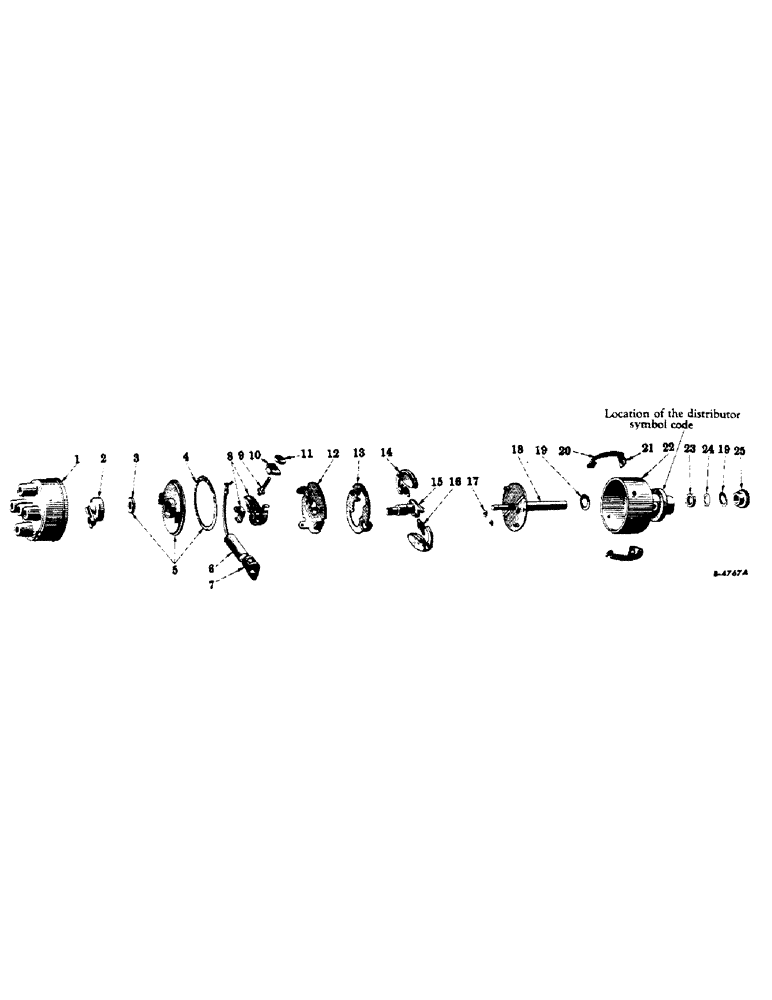

Запчасти Case IH FARMALL C (051) - ELECTRICAL SYSTEM, BATTERY IGNITION DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR, assembly ("J" symbol) (Will work for 353890R92, "A" symbol) (See note)

1шт.

107304C91

DISTRIBUTOR

assembly (replacement distributor for 357935R91)

1шт.

For components refer to Figure 051A

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP, distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

felt, breaker cover

1шт.

4

352284R2

GASKET

breaker cover

1шт.

5

353900R11

COVER

breaker, w/seal, 353901R2 and gasket, 352284R2

1шт.

6

353903R92

CONDENSER

1шт.

7

353905R1

CLAMP

condenser

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

1шт.

121841

LOCK WASHER,#8

1шт.

8

353172R91

BREAKER

PACKAGE, breaker arm and stationary point

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

1шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor, terminal

1шт.

11

251538R1

WASHER

insulating, terminal

1шт.

12

352277R11

PLATE

breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

1шт.

121841

LOCK WASHER,#8

1шт.

13

352301R1

GUARD

governor weight

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

slotted-fil-hd., cd-pltd., no. 8-32 NC x 3/16"

2шт.

121841

LOCK WASHER,#8

2шт.

14

353915R91

ARM

weight

2шт.

15

355724R91

PACKAGE

CAM, w/felt, 355460R1 (Will work for 353908R91)

1шт.

16

358106R91

SPRING

governor spring (Used on "A" symbol distributor. Will work for 353918R1. (See note)

1шт.

16

358108R91

SPRING

SET, governor spring (Consists of two springs) (Used on "J" symbol distributor)

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

353928R91

SHAFT

distributor (Used on "A" symbol distributor) (See note)

1шт.

18

354901R91

SHAFT

distributor (Used on "J" symbol distributor) (See note)

1шт.

19

352298R1

THRUST WASHER

thrust, distributor

2шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

2шт.

121841

LOCK WASHER,#8

2шт.

22

353898R11

HOUSING

distributor, w/oil seal, 252739R1, retainer, 353899R1 and plug, 125947)

1шт.

125947

STUD

pipe, slotted, cd-pltd., 1/8"

1шт.

23

353899R1

STOP

RETAINER, oil seal, distributor shaft

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

distributor shaft

1шт.

25

353902R1

GEAR

distributor

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

355460R1

FELT SEAL

FELT, cam oil hole (For 5/32" cam bore)

1шт.

352302R1

FELT

cam oil hole (For 9/32" cam bore)

1шт.

21372D

GREASE, distributor or magneto (1 oz. tube) (Not part of distributor assembly)

1шт.

21394D

WASHER

stationary point and terminal

3шт.
