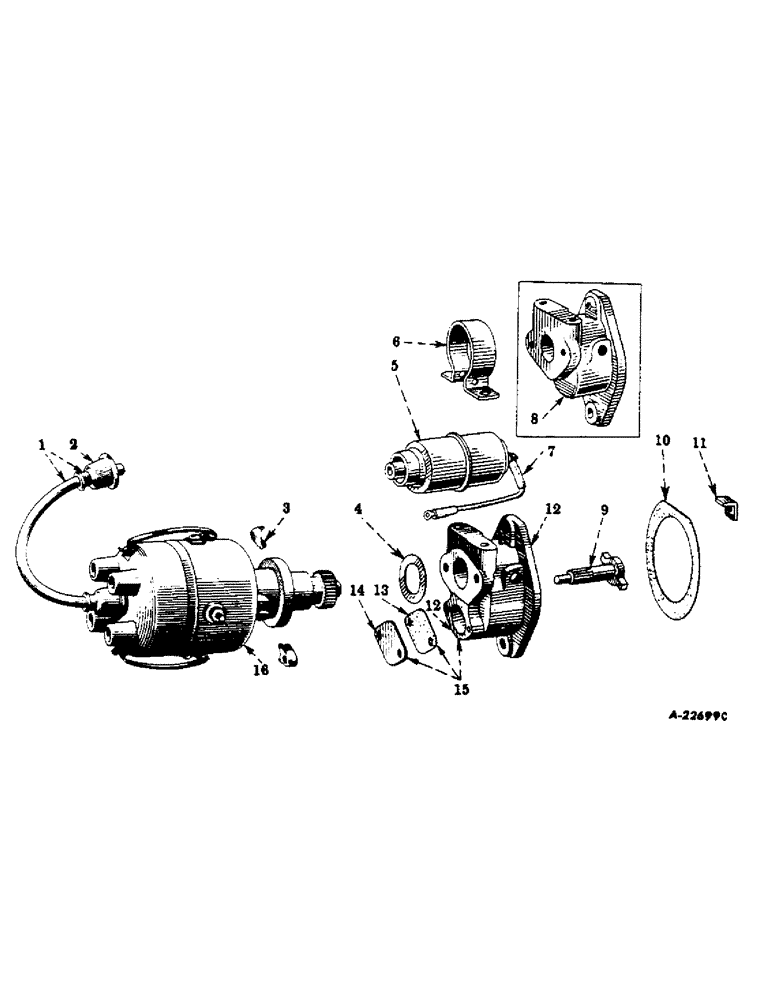

Запчасти Case IH FARMALL C (049) - ELECTRICAL SYSTEM, BATTERY IGNITION UNIT (06) - ELECTRICAL SYSTEMS

UNIT, battery ignition (Ref. 353870R92) (Less reference nos. 10 and 11)

1шт.

1

356686R92

CABLE

secondary, coil to distributor, w/two nipples, 251553R1

1шт.

2

251553R1

BOOT

NIPPLES

2шт.

3

353937R1

CLIP

CLAMP, distributor

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, cap, hex-hd., cd-pltd., 5/16-18 NC x 7/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

distributor

1шт.

5

353874R91

COIL

ignition (6 volt)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

353889R1

CLAMP

coil

1шт.

120611

NUT,#10 - 32

square, cd-pltd., no. 10-32 NF

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slotted-rd-hd., cd-pltd., no. 10-32 NF x 1-1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, plain, cd-pltd., 11/32 I.D. x 11/16" O.D. x no. 16 ga.

2шт.

7

357929R92

ELECTRIC CABLE

CABLE, primary, coil to distributor (Will work for 353942R11)

1шт.

8

353933R11

HOUSING, distributor drive (w/o hole for tachometer drive) (Order 363749R91)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 1-1/8"

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex-hd., 3/8-16 NC x 1-7/8"

1шт.

9

353934R11

SHAFT

distributor drive, w/integral gear (16 teeth)

1шт.

10

46168DB

GASKET

distributor drive housing (Will work for 55780DD (NSS)

1шт.

11

46868D

CLIP

mounting, distributor

1шт.

12

363763R11

HOUSING, distributor drive, w/bushing (With hole for tachometer drive)

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 1-1/8" (Lower)

1шт.

179846

LEVER

hex-hd., 3/8-16 NC x 1-7/8" (Upper)

1шт.

13

363765R1

GASKET

distributor drive housing hole cover (Used with 363763R11)

1шт.

14

363764R1

COVER

distributor drive housing hole (Used with 363711R11, reference no. 12)

1шт.

435429

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32 NF x 9/16" Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

363749R91

HOUSING

distributor drive, assembly (Will work for 353933R11), Composed of

1шт.

363764R1

COVER

1шт.

363765R1

GASKET

1шт.

363763R11

HOUSING

1шт.

435429

SCREW Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR, assembly (Will work for 353890R92) (For components see list of parts under details of "Battery ignition distributor")

1шт.

353938R92

PACKAGE, battery ignition (Tractors equipped with magnetos and electric starting and/or lighting), Consists of

1шт.

56683D

CABLE

1шт.

46868D

CLIP

1шт.

46168DB

GASKET

1шт.

251553R1

BOOT

NIPPLE

4шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW

1шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

SCREW

1шт.

62801DC

SWITCH

1шт.

353870R92

UNIT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
