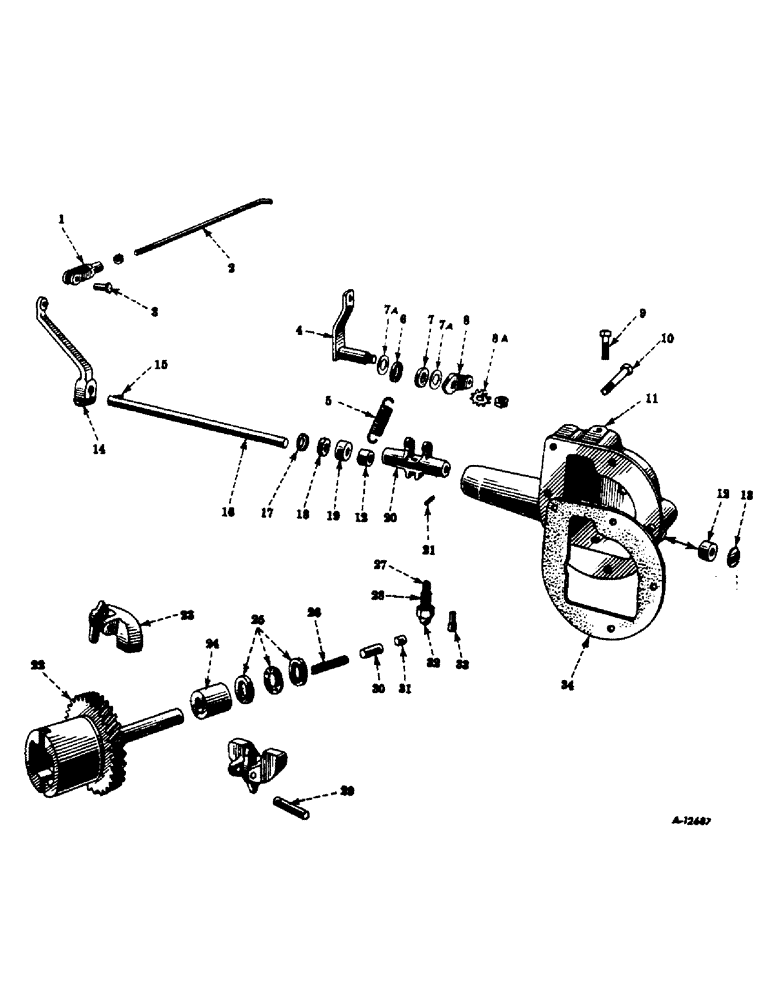

Запчасти Case IH FARMALL C (043) - ENGINE, GOVERNOR AND CONNECTIONS (01) - ENGINE

1

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, adjustable rod end (Same as 17730D)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF

1шт.

2

43617DA

ROD

governor connecting

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, rod end, 1/4 x 51/64"

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

4

46947DAXB

LEVER

governor speed change, w/shaft

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

5

69235D

SPRING

governor

1шт.

6

46950D

RETAINER

governor speed change lever shaft seal (Order 149345R91)

1шт.

7

46949D

SEAL

governor speed change lever shaft (Order 149345R91)

1шт.

7

149345R91

OIL SEAL

OIL SEAL, governor speed change shaft (Will work for 46949D and 46950D)

1шт.

7a

355476R1

SPRING WASHER

governor spring lever (One used with oil seal - ref. no. 7)

2шт.

8

355477R91

LEVER

governor spring (Will work for 51491DAX)

1шт.

8a

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

1шт.

9

41359D

STOP, governor speed change lever (Used with 6340DX)

1шт.

220064

NUT

hex., 1/4-20 NC

1шт.

9

357432R2

BOLT

STOP, governor speed change lever (Used with 6340DAX)

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

54041D

BOLT, governor housing

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

357433R91

HOUSING, governor, 6340DAX, w/nut, 218438 and stop, 357432R1 (Will work for 6340DX)

1шт.

11

6340DAX

HOUSING

governor, assembly, Composed of

1шт.

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING

2шт.

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

1шт.

6340DA

HOUSING (NSS)

1шт.

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN

1шт.

49220D

STOP

PIN

1шт.

172531

PLUG,Exp, 3/4"

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING, governor rockshaft (Torrington BH68)

2шт.

13

172531

PLUG,Exp, 3/4"

expansion, 3/4"

1шт.

14

6507DA

ARM

governor rockshaft

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., 1/4-20 NC x 7/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

106958

KEY

Woodruff, no. 1

1шт.

16

46943DA

SHAFT

ROCKSHAFT, governor

1шт.

17

43483D

SEAL RETAINER

RETAINER, governor rockshaft seal

1шт.

18

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL, governor rockshaft

1шт.

19

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

governor rockshaft

1шт.

20

352522R1

LEVER

governor rockshaft

1шт.

21

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, 1/8" x 5/8", Type A

1шт.

22

6339DAX

GEAR

PINION, magneto and governor, w/pin (33 teeth)

1шт.

23

351778R1

WEIGHT

governor

2шт.

24

49325D

BUSHING

SLEEVE, thrust, governor

1шт.

25

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BEARING, ball, governor thrust (Aetna ED2293) (Optional with 55314D)

1шт.

25

55314D

BEARING

ball, governor thrust (Nice 5971) (Optional with 43481D)

1шт.

26

49218DA

SPRING

governor shaft bumper

1шт.

27

28078D

VALVE SPRING

SPRING, governor bumper

1шт.

28

31804DA

BODY

governor bumper spring

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

29

46924D

PIN

governor weight

2шт.

108628

PIN

cotter, 1/16 x 7/8"

2шт.

30

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN, governor shaft bumper

1шт.

31

49220D

STOP

PIN, governor shaft stop

1шт.

32

50046D

CAP, governor bumper spring body

1шт.

33

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN, retainer, governor rockshaft lever

1шт.

34

45875D

GASKET

governor housing

1шт.

356746R91

PACKAGE, governor, assembly, Consists of

1шт.

6507DA

ARM

1шт.

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BEARING

1шт.

31804DA

BODY

1шт.

54041D

BOLT

1шт.

45875D

GASKET

1шт.

6340DAX

HOUSING

1шт.

106958

KEY

1шт.

46947DAXB

LEVER

1шт.

51491DA

LEVER

1шт.

352522R1

LEVER

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

129-531

NUT,Crown, 7/16"-14

1шт.

149345R91

OIL SEAL

OIL SEAL

1шт.

46924D

PIN

1шт.

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN

1шт.

108628

PIN

1шт.

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, 1/8" x 5/8", Type A

1шт.

6339DAX

GEAR

PINION

1шт.

43483D

SEAL RETAINER

RETAINER

1шт.

46943DA

SHAFT

ROCKSHAFT

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL

1шт.

49325D

BUSHING

SLEEVE

1шт.

28078D

VALVE SPRING

SPRING

1шт.

49218DA

SPRING

1шт.

69235D

SPRING

1шт.

357432R2

BOLT

STOP

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER

1шт.

355476R1

SPRING WASHER

1шт.

351778R1

WEIGHT

2шт.
