Запчасти Case IH FARMALL C (040) - ENGINE, CARBURETOR, ZENITH MODEL, 67 X 7 (01) - ENGINE

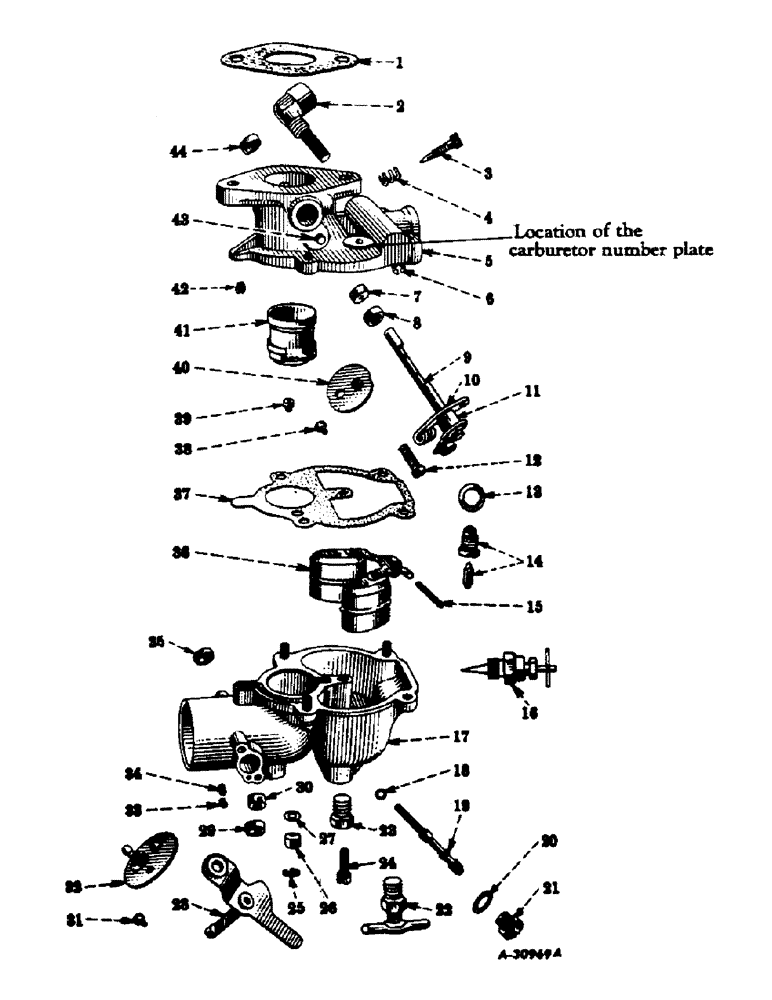

Схема запчастей Case IH FARMALL C - (040) - ENGINE, CARBURETOR, ZENITH MODEL, 67 X 7 (01) - ENGINE
9
44
7
39
13
32
40
29
18
36
10
34
12
20
19
41
16
42
27
4
28
14
21
2
5
24
15
6
33
25
37
23
8
43
38
3
30
31
17
22
35
11
26
1

Артикул

Название

Примечание

Количество

355485R92

CARBURETOR, assembly (Gasoline) (Optional with Carter, 354184R91) (Will work for 251182R92)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

24520D

GASKET

carburetor

1шт.

2

53796D

ELBOW

w/strainer

1шт.

3

13873D

NEEDLE

VALVE, needle, idle adjusting

1шт.

4

12472D

SPRING

idle adjusting needle valve

1шт.

5

357142R92

BODY, throttle, assembly, Composed of

1шт.

BODY (NSS)

1шт.

53789D

BRACKET

1шт.

54061D

PIN

1шт.

357144R1

LARGE PLATE

PLATE

1шт.

53797D

PLUG

1шт.

42191D

RETAINER

1шт.

145371

SCREW

2шт.

357155R91

SCREW

2шт.

62170

SCREW

SHAFT

1шт.

54062D

WASHER

1шт.

21210D

WASHER

1шт.

6

53789D

BRACKET, float

1шт.

145371

SCREW, drive rd-hd., cd-pltd., no. 2 x 1/4"

2шт.

7

21210D

WASHER

packing, throttle shaft

1шт.

8

42191D

RETAINER

packing, throttle, shaft

1шт.

9

62170D

SHAFT, throttle, w/lever, screw, 12455D and pin, 135645H

1шт.

10

54062D

WASHER

throttle lever

1шт.

11

135645H

PIN, taper

1шт.

12

12455D

SCREW, throttle stop

1шт.

13

53792D

WASHER

fuel valve

1шт.

14

353241R91

VALVE

fuel

1шт.

15

62174D

PIN

AXLE, float

1шт.

16

53786D

ADJUSTER

VALVE, needle main jet adjustment, w/body and sleeve (Distillate or kerosene)

1шт.

17

357143R91

BOWL

fuel, assembly, Composed of

1шт.

BOWL (NSS)

1шт.

53797D

PLUG

1шт.

40535D

PLUG

RETAINER

1шт.

42191D

RETAINER

1шт.

12469D

WASHER

1шт.

21210D

WASHER

1шт.

40534D

WASHER

1шт.

18

357153R1

WASHER, fibre, discharge jet

1шт.

19

357145R91

JET, main disharge (Gasoline) (Used with 355485R92)

1шт.

19

357886R91

JET, main discharge (Distillate or kerosene)

1шт.

19

364554R91

JET, main discharge (Gasoline) (Used with 356299R1)

1шт.

20

12433D

WASHER

fibre, main passage

1шт.

21

16825D

PLUG

lower (Main jet passage) (Gasoline)

1шт.

22

53791D

COCK, drain (Distillate or kerosene)

1шт.

23

54063D

PLUG

drain (Gasoline)

1шт.

24

357154R91

SCREW, Serial Range: bowl-body

4шт.

25

40535D

PLUG

drip

1шт.

26

40534D

WASHER

FELT, drip plug

1шт.

27

12469D

WASHER, drip plug

1шт.

28

357148R91

LEVER

SHAFT, choke valve, w/lever

1шт.

29

42191D

RETAINER

packing, choke shaft

1шт.

30

21210D

WASHER

packing choke shaft

1шт.

31

357155R91

SCREW, choke valve plate w/lock washer

2шт.

32

357147R91

PLATE, choke valve

1шт.

33

357150R1

PIN, friction, choke lever

1шт.

34

357149R1

SPRING

friction, choke lever

1шт.

35

53797D

PLUG

choke shaft hole

1шт.

36

53783D

FLOAT

1шт.

37

357151R1

GASKET

, Serial Range: bowl-body

1шт.

38

357155R91

SCREW, throttle valve plate w/lock washer

2шт.

39

69624D

JET, well vent (Distillate or kerosene)

1шт.

39

352894R1

JET, well vent (Gasoline) (Used with 355485R92)

1шт.

39

69624D

JET, well vent (Gasoline) (Used with 356299R91)

1шт.

40

357144R1

LARGE PLATE

PLATE, throttle valve

1шт.

41

62171D

VENTURI (Distillate or kerosene)

1шт.

41

352890R1

VENTURI

(Gasoline)

1шт.

42

352891R1

JET, idling

1шт.

42

360004R1

JET, idling (Used with 356299R91)

1шт.

43

54061D

PIN, throttle lever stop

1шт.

44

53797D

PLUG

throttle shaft hole

1шт.

350633R3

CLIP

choke rod, front (Tractors equipped with touch-control)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20 NC x 9/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

352147R1

CLIP, choke rod, front (Tractors not equipped with touch-control)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, cap, hex-hd., 1/4-28 NF x 5/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

354379R1

CLIP, choke rod, rear

2шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28 NF x 3/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

357152R91

GASKET KIT

SET, Consists of

1шт.

357151R1

GASKET

1шт.

12433D

WASHER

1шт.

53792D

WASHER

1шт.

357153R1

WASHER

1шт.

351444R1

ROD, choke

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

Выбрано товаров: 89
