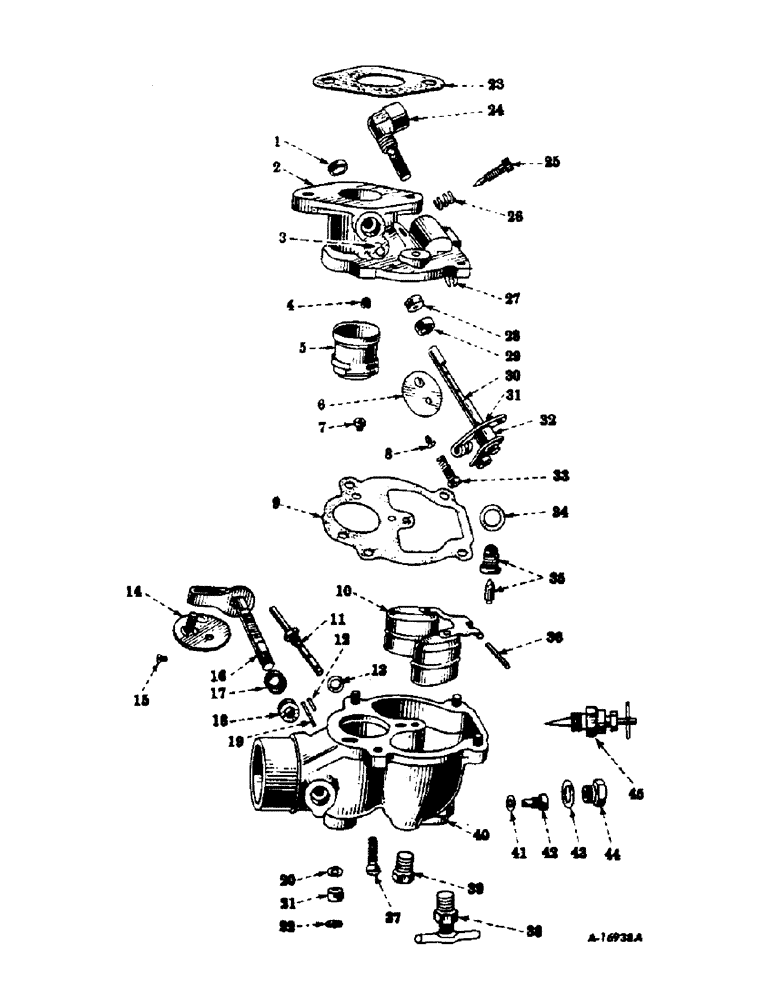

Запчасти Case IH FARMALL C (036) - ENGINE, CARBURETOR, ZENITH MODEL, 161 X 7 (01) - ENGINE

251182R92

CARBURETOR

assembly (Gasoline) (Order 355485R92)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

352046R93

CARBURETOR

assembly (Distillate or kerosene) (Special) (Optional with carter carburetor, 354185R92)

1шт.

220065

NUT, hex., 5/16-18 NC

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

53797D

PLUG

throttle shaft hole

1шт.

2

352886R92

BODY, throttle, assembly, Composed of

1шт.

BODY (NSS)

1шт.

53789D

BRACKET

1шт.

54061D

PIN

1шт.

53797D

PLUG

1шт.

42191D

RETAINER

1шт.

145371

SCREW

2шт.

21210D

WASHER

1шт.

3

547061D

PIN, throttle stop

1шт.

4

352891R1

JET, idling

1шт.

5

352889R1

VENTURI (Gasoline)

1шт.

5

352890R1

VENTURI

(Distillate or kerosene)

1шт.

6

62169D

PLATE, throttle valve

1шт.

7

55603D

VENT, well (Gasoline)

1шт.

7

352894R1

VENT, well (Distillate or kerosene)

1шт.

8

31858D

SCREW, throttle valve plate

2шт.

426217

FUEL FILTER

WASHER, lock, no. 5

2шт.

9

53788DA

GASKET

GAKSET, Serial Range: bolt-body

1шт.

10

53783D

FLOAT

1шт.

11

352892R91

JET, main discharge (Gasoline)

1шт.

11

352893R91

JET, main discharge (Distillate or kerosene)

1шт.

12

53799D

PIN, locating, choke valve plate lever

1шт.

13

31847D

WASHER, main discharge jet

1шт.

14

352895R91

PLATE, choke valve

1шт.

15

31858D

SCREW, choke valve plate

2шт.

426217

FUEL FILTER

WASHER, lock, no. 5

2шт.

16

55802D

SHAFT ASSY.

SHAFT, choke valve, w/lever

1шт.

17

42191D

RETAINER

packing, choke valve shaft

2шт.

18

21210D

WASHER

packing, choke valve shaft

2шт.

19

54060D

PIN, stop, choke valve

1шт.

20

12469D

WASHER, drip plug, inner

1шт.

21

40534D

WASHER

FELT, drip plug

1шт.

22

40535D

PLUG

drip

1шт.

23

24520D

GASKET

carburetor

1шт.

24

53796D

ELBOW

w/strainer

1шт.

25

13873D

NEEDLE

VALVE, needle, idler adjusting

1шт.

26

12472D

SPRING

idler adjusting needle valve

1шт.

27

53789D

BRACKET, float

1шт.

145371

SCREW, drive rd-hd., cd-pltd., no. 2 x 1/4"

1шт.

28

21210D

WASHER

packing, throttle shaft

1шт.

29

42191D

RETAINER

packing, throttle shaft

1шт.

30

62170D

SHAFT, throttle, w/lever, screw, 12455D and pin, 135645H

1шт.

31

54062D

WASHER

throttle lever

1шт.

32

135645H

PIN, taper

1шт.

33

12455D

SCREW, throttle stop

1шт.

34

53792D

WASHER

fuel valve

1шт.

35

353241R91

VALVE

fuel w/seat (Will work for 53782D)

1шт.

36

62174D

PIN

AXLE, float

1шт.

37

132119

SCREW

bowl to body (Same as 12460D)

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

38

53791D

COCK, drain (Distillate or kerosene)

1шт.

39

54063D

PLUG

drain (Gasoline)

1шт.

40

352887R91

BOWL, fuel, assembly, Composed of

1шт.

BOWL (NSS)

1шт.

40534D

WASHER

FELT

1шт.

53799D

PIN

1шт.

54060D

PIN

1шт.

40535D

PLUG

1шт.

42191D

RETAINER

2шт.

12469D

WASHER

1шт.

21210D

WASHER

2шт.

41

12435D

SEALING WASHER

WASHER, main jet

1шт.

42

53802D

JET, main

1шт.

43

12433D

WASHER

lower plug (Gasoline)

1шт.

43

12433D

WASHER

main jet adjustment (Distillate or kerosene)

1шт.

44

16825D

PLUG

lower (Gasoline) (Main jet passage)

1шт.

45

53786D

ADJUSTER

VALVE, needle, main jet adjustment (Distillate or kerosene)

1шт.

350633R3

CLIP

choke rod, front (Tractors equipped with touch-control)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20 NC x 9/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

352147R1

CLIP, choke rod, front (Tractors not equipped with touch-control)

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, cap, hex-hd., 1/4-28 NF x 5/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

354379R1

CLIP, choke rod, rear

2шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28 NF x 3/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

352896R91

GASKET KIT

SET, Consists of

1шт.

53788DA

GASKET

1шт.

12433D

WASHER

(352046R93 only)

1шт.

12433D

WASHER

(251182R92 only)

1шт.

12435D

SEALING WASHER

WASHER

1шт.

31847D

WASHER

1шт.

53792D

WASHER

1шт.

53794D

WASHER (Not used on 251182R92 or 352046R93)

1шт.

355262R91

KIT

PACKAGE, overhaul, carburetor, Consists of

1шт.

62174D

PIN

AXLE

1шт.

53796D

ELBOW

1шт.

40534D

WASHER

FELT

1шт.

24520D

GASKET

1шт.

53788DA

GASKET

1шт.

62170D

SHAFT

1шт.

53797D

PLUG

1шт.

40535D

PLUG

1шт.

42191D

RETAINER

3шт.

31858D

SCREW

4шт.

NLS

NO LONGER SERVICED

4шт.

12472D

SPRING

1шт.

13873D

NEEDLE

VALVE

1шт.

353241R91

VALVE

1шт.

12433D

WASHER

1шт.

12433D

WASHER

1шт.

12435D

SEALING WASHER

WASHER

1шт.

12469D

WASHER

1шт.

21210D

WASHER

3шт.

31847D

WASHER

1шт.

53792D

WASHER

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

426217

FUEL FILTER

WASHER

4шт.

351444R1

ROD, choke

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.
