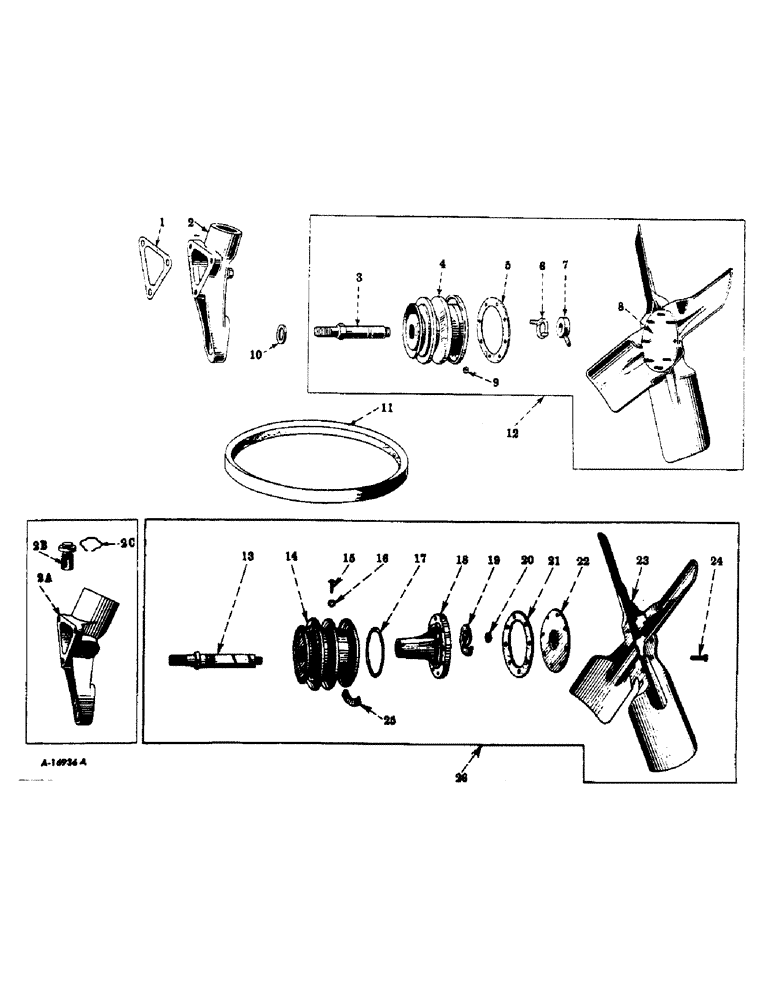

Запчасти Case IH FARMALL C (026) - ENGINE, FAN, SERVICE PRODUCTS (01) - ENGINE

1

43294D

GASKET

fan bracket

1шт.

2

251177R1

BRACKET, fan and water outlet

1шт.

2a

257353R2

BRACKET, fan and water outlet (Used with tractors with water pump)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 1-1/8"

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2b

257440R91

THERMOSTAT

(165 degrees to 195 degrees) (Used with tractors equipped with water pump)

1шт.

2c

257441R2

SEGMENT

RING, thremostat retainer (Used with tractors equipped with water pump)

1шт.

3

25957DA

STUD

SPINDLE, fan

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

4

28318DA

HUB, fan

1шт.

5

11154VA

GASKET

fan hub

1шт.

6

12470VA

WASHER, thrust (Bronze)

1шт.

7

62786VX

NUT, thrust, w/oil tube

1шт.

8

32984DA

FAN

1шт.

103101

CLEVIS

NUT, square, no. 10-32 NF

8шт.

100660

SCREW,Slotted Fil Hd, #10-32 x 1/2"

slotted, fil-hd., no. 10-32 NF x 1/2"

8шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

9

32606H

PLUG, special oil retaining

1шт.

10

43293D

WASHER

fan shaft

1шт.

11

46869D

V-BELT,0.78" W

Fan (Regular duty) (Tractors without water pump) 0.78" W

1шт.

11

368083R1

BELT

fan (Cog type) (Heavy duty) (Tractors without water pump)

1шт.

11

60712D

V-BELT,0.66" W x 35.38" L

Fan (Regular duty) (Tractors with water pump) 0.66" W x 35.38" L

1шт.

11

368084R1

BELT

fan (Cog type) (Heavy duty) (Tractors with water pump)

1шт.

12

28821DB

FAN AND HUB, assembly (Optional with 70136D), Composed of

1шт.

32984DA

FAN

1шт.

11154VA

GASKET

1шт.

28318D

HUB

1шт.

62786VX

NUT

1шт.

103101

CLEVIS

NUT

8шт.

32606H

PLUG

1шт.

100660

SCREW,Slotted Fil Hd, #10-32 x 1/2"

8шт.

25957D

SPINDLE

1шт.

12470VA

WASHER

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

13

SPINDLE, fan (Order 251647R91), Schwitzer-Cummins

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

Fan, Schwitzer-Cummins Jam, 5/8"-18, G5

1шт.

14

HUB, fan (Order 251645R91), Schwitzer-Cummins

1шт.

15

70206D

SCREW, oil retaining, fan, Schwitzer-Cummins

1шт.

16

70208D

GASKET

oil retaining screw, fan, Schwitzer-Cummins

1шт.

17

70207D

GASKET

fan hub, Schwitzer-Cummins

1шт.

18

BEARING, fan (Order 251647R91), Schwitzer-Cummins

1шт.

19

IMPELLER, oil (Order 251647R91), fan, Schwitzer-Cummins

1шт.

20

70209D

NUT

lock, fan, Schwitzer-Cummins

1шт.

21

70200D

GASKET

fan bearing, Schwitzer-Cummins

1шт.

22

70204D

CAP

fan bearing, Schwitzer-Cummins

1шт.

23

70212D

FAN

Schwitzer-Cummins

1шт.

23

70214D

FAN

(Used with tractors equiped with water pump), Schwitzer-Cummins

1шт.

24

70202D

SCREW, cap, fan, Schwitzer-Cummins

8шт.

106498

LOCK WASHER,#12

Washer, Lock, , Fan, Schwitzer-Cummins #12

8шт.

25

70203D

NUT, double, fan, Schwitzer-Cummins

4шт.

26

70136D

FAN

AND HUB, assembly (Optional with 28821DB), Composed of, Schwitzer-Cummins

1шт.

70212D

FAN

Schwitzer-Cummins

1шт.

251645R91

HUB

assembly, fan, Schwitzer-Cummins

1шт.

70203D

NUT, fan, Schwitzer-Cummins

4шт.

70202D

SCREW, fan, Schwitzer-Cummins

8шт.

251647R91

SPINDLE AND BEARING, fan, Schwitzer-Cummins

1шт.

106498

LOCK WASHER,#12

Washer, Lock, , Fan, Schwitzer-Cummins #12

8шт.

251645R91

HUB

assembly, Composed of, fan, Schwitzer-Cummins

1шт.

70200D

GASKET

fan, Schwitzer-Cummins

1шт.

70207D

GASKET

fan, Schwitzer-Cummins

1шт.

70208D

GASKET

fan, Schwitzer-Cummins

1шт.

HUB (NSS), fan, Schwitzer-Cummins

1шт.

70206D

SCREW, fan, Schwitzer-Cummins

1шт.

251647R91

SPINDLE AND BEARING, assembly, Composed of, fan, Schwitzer-Cummins

1шт.

BEARING (NSS), fan, Schwitzer-Cummins

1шт.

70204D

CAP

fan, Schwitzer-Cummins

1шт.

70200D

GASKET

fan, Schwitzer-Cummins

1шт.

70207D

GASKET

fan, Schwitzer-Cummins

1шт.

IMPELLER (NSS), fan, Schwitzer-Cummins

1шт.

70209D

NUT

fan, Schwitzer-Cummins

1шт.

SPINDLE (NSS), fan, Schwitzer-Cummins

1шт.
