Запчасти Case IH FARMALL C (014) - ENGINE, CRANKSHAFT AND RELATED PARTS, AND STARTING CRANK (01) - ENGINE

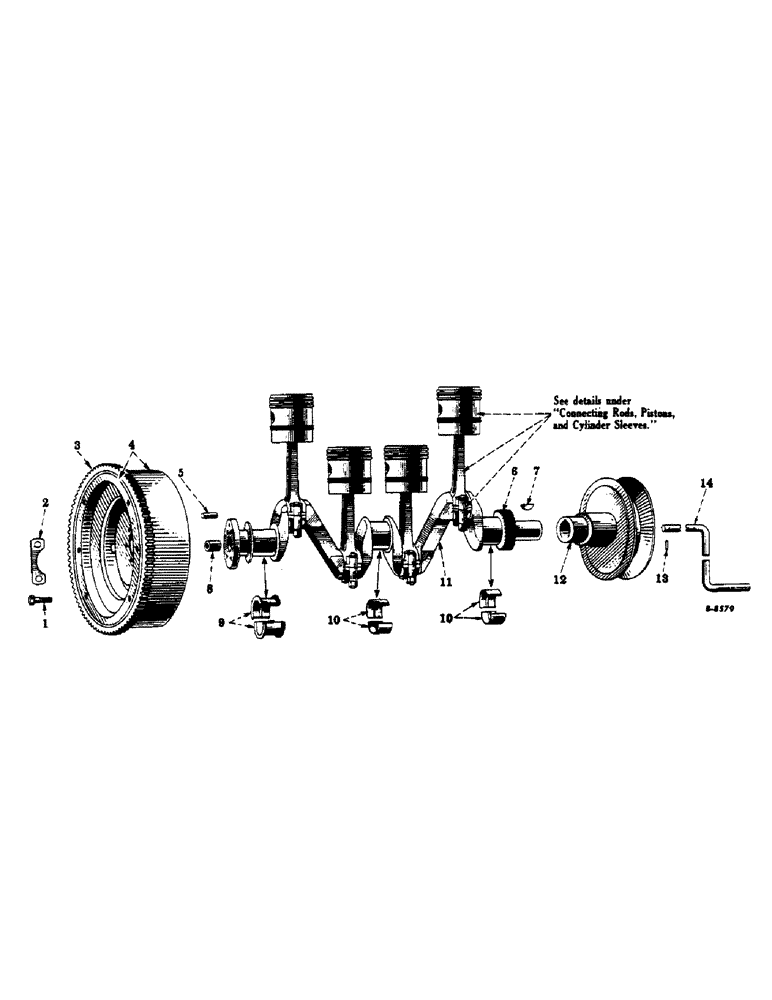

Схема запчастей Case IH FARMALL C - (014) - ENGINE, CRANKSHAFT AND RELATED PARTS, AND STARTING CRANK (01) - ENGINE
7
3
11
4
12
14
13
10
6
6
5
9
10
1
2

Артикул

Название

Примечание

Количество

1

29951D

BOLT, flywheel

4шт.

2

46349D

LOCK

flywheel bolt

2шт.

3

55755DB

SLEWING RING

GEAR, ring, flywheel (90 teeth)

1шт.

4

351217R12

FLYWHEEL

w/ring gear, 55755DB

1шт.

5

24550D

PIN

dowel, flywheel

1шт.

6

46870DA

PINION

crankshaft (33 teeth)

1шт.

7

127559

TAPE

Woodruff, no. 91

2шт.

8

43291D

BUSHING

clutch pilot (Optional with 364527R91)

1шт.

8

364527R91

BUSHING, clutch pilot (Optional with 43291D)

1шт.

9

360221R11

BEARING

crankshaft, rear (2 halves) (Standard) (Tri-metal type)

1шт.

9

360223R11

CRANKSHAFT BEARING

crankshaft, rear (2 halves) (.002" undersize) (Tri-metal type)

1шт.

9

360224R11

BEARING, crankshaft, rear (2 halves) (.003" undersize) (Tri-metal type)

1шт.

9

360222R11

CRANKSHAFT BEARING

crankshaft, rear (2 halves) (.030" undersize) (Tri-metal type)

1шт.

9

360225R11

BEARING, crankshaft, rear (2 halves) (.032" undersize) (Tri-metal type)

1шт.

10

360216R11

CRANKSHAFT BEARING

BEARING, crankshaft, front and center (2 halves) (Standard) (Tri-metal type)

2шт.

10

360218R11

BEARING SET

crankshaft, front and center (2 halves) (.002" undersize) (Tri-metal type)

2шт.

10

360219R11

BEARING, crankshaft, front and center (2 halves) (.003" undersize) (Tri-metal type)

2шт.

10

360217R11

CRANKSHAFT BEARING

crankshaft, front and center (2 halves) (.030" undersize) (Tri-metal type)

2шт.

10

360220R11

BEARING, crankshaft, front and center (2 halves) (.032" undersize) (Tri-metal type)

2шт.

11

356311R92

CRANKSHAFT, w/bearing, assembly (Standard) (Will work for 46102DCX and 353744R91), Composed of

1шт.

356304R11

BEARING

4шт.

358373R11

BEARING

2шт.

358374R11

BEARING

1шт.

43291D

BUSHING

1шт.

356308R1

CRANKSHAFT (NSS)

1шт.

24550D

PIN

1шт.

11

356312R92

CRANKSHAFT, w/bearing, assembly (.030" undersize), Composed of

1шт.

356305R11

CRANKSHAFT BEARING

4шт.

358375R11

BEARING

2шт.

358376R11

BEARING

1шт.

43291D

BUSHING

1шт.

356309R1

CRANKSHAFT (NSS)

1шт.

24550D

PIN

1шт.

12

6502DB

PULLEY

fan drive

1шт.

13

15204D

PIN, starting crank (Used with starting crank)

1шт.

14

53385DCX

CRANK

starting, w/pin, 15204D (For tractors equipped with magneto ignition without starting and lighting system, special for all others)

1шт.

367878R91

KIT

BEARING SET, crankshaft (Standard) (Tri-metal type) (Consists of two bearing, 360216R11 and one bearing, 360221R11) (Optional with 367877R91)

1шт.

Выбрано товаров: 37
