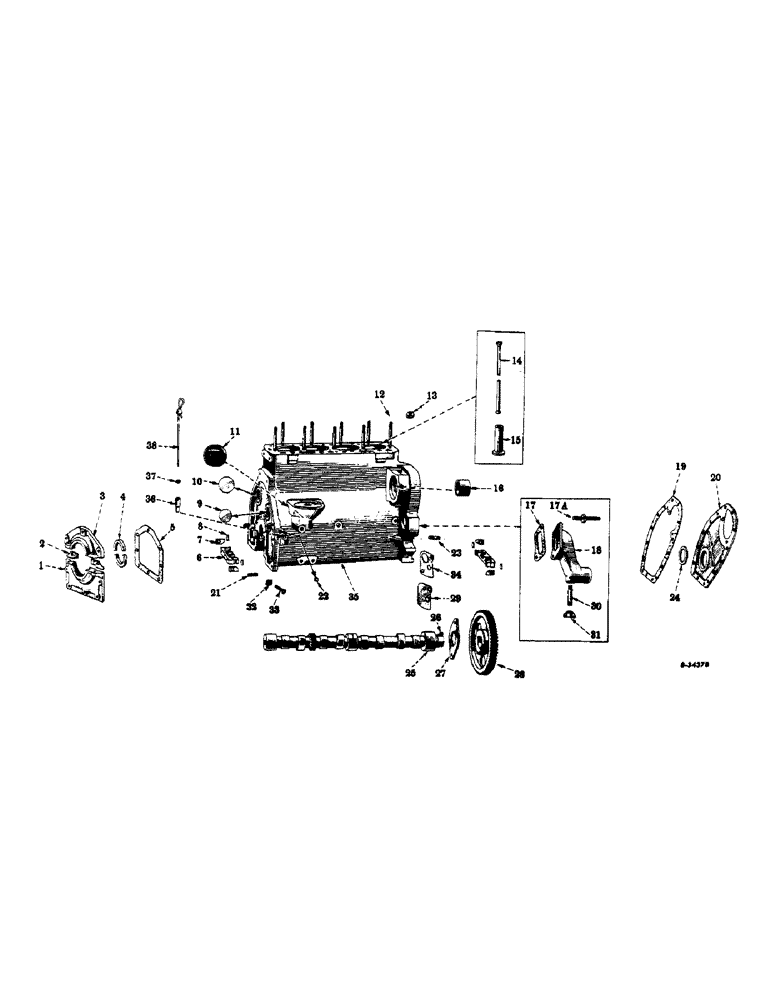

Запчасти Case IH FARMALL C (011) - ENGINE, CRANKCASE, FRONT COVER, CAMSHAFT AND RELATED PARTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
6102D
RETAINER
crankshaft rear oil seal, lower
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
5шт.
179796
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5
SCREW, cap, hex-hd., 1/4-20 NC x 7/8"
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
2
43447D
GASKET
crankshaft rear oil seal retainer, center
2шт.
3
6101D
RETAINER
crankshaft rear oil seal, upper
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
3шт.
4
24425D
OIL SEAL,24.61mm ID x 50.01mm OD x 4.76mm Thk
OIL SEAL, felt, crankshaft, rear
2шт.
5
43448D
GASKET
crankshaft rear oil seal retainer
1шт.
6
6100D
PLATE, crankshaft oil seal retainer, front and rear
2шт.
7
43446D
GASKET
crankshaft oil seal retainer plate
4шт.
8
43445D
PLUG, felt, crankshaft oil seal retainer plate
4шт.
9
172576
PLUG,Exp, 1 5/8"
expansion, 1-5/8"
1шт.
10
172592
SUPPORT
expansion, 2"
1шт.
11
364665R91
INDICATOR
oil pressure (Will work for 43987DB)
1шт.
12
24433D
STUD
cylinder head
9шт.
13
4097DA
NUT
cylinder head stud
9шт.
14
47386D
ROD
push, valve (Optional with 357548R1 and 360213R91)
8шт.
14
357548R1
ROD
push, valve (Optional with 47386D and 360213R91)
8шт.
14
360213R91
ROD
push, valve (Optional with 47386D and 357548R1)
8шт.
15
47384D
TAPPET
valve (Optional with 356979R1)
8шт.
15
356979R1
TAPPET
valve (Optional with 47384D)
8шт.
16
43439DBR
BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L
magneto and governor pinion (Will work for 43439DB (NSS)
1шт.
17
46871D
GASKET
water inlet elbow
1шт.
17a
49279D
STUD, generator brace
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
18
351962R11
ELBOW
water inlet, w/one plug, 103868 and two plugs, 143162 (Will work for 6501DA, 6764DAX, or 351963R1)
1шт.
217-519
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG, , Pipe, C.I. Sq Hd, 1/2"-14 NPTF
1шт.
143162
PLUG
pipe, sq-socket-hd., stl., 3/8" (Optional with 444660)
1шт.
444660
DRAIN PLUG,Sq Soc, 3/8"-18 NPTF
PLUG, pipe, sq-socket-hd., stl., 3/8" (Optional with 143162)
1шт.
NLS
NO LONGER SERVICED
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
19
46179DB
GASKET, crankcase front cover
1шт.
20
46122DCX
COVER
crankcase, front, w/oil seal, 49177D and pointer
1шт.
179814
SPACER
11шт.
95-11034
WASHER,1/4"
plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga.
11шт.
21
357232R1
PIN
DOWEL, clutch housing (Will work for 15945D)
2шт.
22
365101R1
PLUG
crankcase oil header, 1/8" (Will work for 50410DA)
3шт.
23
251066R1
STUD, crankcase front cover
1шт.
114493
JAM NUT,Jam, 5/16"-24, G5
1шт.
95-11034
WASHER,1/4"
plain, 5/16"
1шт.
24
49177D
SEAL
OIL SEAL, crankshaft, front
1шт.
25
353609R2
PACKAGE
CAMSHAFT, (Will work for 9315D and 43251DA)
1шт.
26
126-117
WOODRUFF KEY,#91, 1/4" x 3/4", HT
Woodruff, no. 91
1шт.
27
43249D
PLATE
thrust, camshaft
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
28
6779DB
GEAR
camshaft (66 teeth)
1шт.
29
251067R1
COVER
hydraulic pump pad (S/N, Serial Range: 501-51284)
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
30
191296
PIPE,Nipple, 3/8" NPT x 4 1/2"
NIPPLE, pipe, 3/8 x 4-1/2"
1шт.
31
13047DA
PLUG
CAP, radiator drain pipe
1шт.
32
30638D
BAR
LOCK, crankshaft bearing cap bolt
6шт.
33
24430D
BOLT, crankshaft bearing cap (Used with crankcase, 354898R1) (NSS)
6шт.
33
360077R91
BOLT
crankshaft bearing cap, 17091R1, w/washer, 58516H (Will work for 357937R1) (Used with crankcase, 354898R2 (NSS) and 354898R3)
6шт.
33
17091R1
BOLT, hex-hd., self-locking, 1/2-13 NC x 3" (Crankshaft bearing cap)
6шт.
34
350708R1
GASKET
hydraulic pump pad cover
1шт.
35
354895R94
CRANKCASE, assembly (Will work for 251069R1, 251070R91, 356303R91, 356319R93, 352719R97 and 354898R31) (Order 366294R91 - see note A), Composed of
1шт.
17091R1
BOLT
6шт.
364789R1
BOLT
9шт.
43439DBR
BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L
1шт.
8073DA
CAP (NSS)
2шт.
8074DA
CAP (NSS)
1шт.
251067R1
COVER
1шт.
354898R4
CRANKCASE (NSS)
1шт.
15945D
DOWEL
2шт.
106649
ELBOW,45 Degree, 1/8" NPT Street
1шт.
362611R11
GAUGE
GAGE
1шт.
350708R1
GASKET
1шт.
143997
PLUG
2шт.
365101R1
PLUG
3шт.
9617020
PLUG,1/4" - 18 x 0.48"
1шт.
172576
PLUG,Exp, 1 5/8"
1шт.
63556R1
PLUG
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
365936R1
SLEEVE
1шт.
251066R1
STUD
1шт.
58516H
WASHER,17/32" x 1 1/16" x .095", HDN
15шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
35
366294R92
CRANKCASE, assembly (S/N C-12336001 up), Composed of
1шт.
17091R1
BOLT
6шт.
364789R1
BOLT
9шт.
43439DBR
BUSHING,50.77mm ID x 54.15mm OD x 33.34mm L
1шт.
8073DA
CAP (NSS)
2шт.
8074DA
CAP (NSS)
1шт.
251067R1
COVER
1шт.
366204R2
CRANKCASE (NSS)
1шт.
15945D
DOWEL
2шт.
106649
ELBOW,45 Degree, 1/8" NPT Street
1шт.
362611R11
GAUGE
GAGE
1шт.
350708R1
GASKET
1шт.
9617020
PLUG,1/4" - 18 x 0.48"
1шт.
143997
PLUG
2шт.
172596
PLUG
1шт.
365101R1
PLUG
3шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
365936R1
SLEEVE
1шт.
58516H
WASHER,17/32" x 1 1/16" x .095", HDN
15шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
143997
PLUG
pipe, sq-socket, stl., 1/4"
2шт.
9617020
PLUG,1/4" - 18 x 0.48"
pipe, sq-hd., C.I., 1/4" (Optional with 103878)
1шт.
103878
PLUG
pipe, sq-hd., stl., 1/4" (Optional with 103866)
1шт.
36
361555R1
SLEEVE, oil level gage (For tractors equipped with oil level gage)
1шт.
37
34259H
WASHER, felt, oil level (For tractors equipped with oil level gage)
1шт.
38
362611R11
GAUGE
GAGE, bayonet type engine oil level, w/shield and washer, 34259H (For tractors equipped with oil level gage)
1шт.
366288R91
SLEEVE SET, crankcase (Gasoline-standard altitude)
1шт.
366653R91
SLEEVE SET, crankcase (Gasoline-distillate-high altitude)
1шт.
366687R91
SLEEVE SET, crankcase (Distillate-standard altitude)
1шт.
366652R91
SLEEVE SET, crankcase (Kerosene-standard altitude)
1шт.
366655R91
SLEEVE SET, crankcase (Kerosene-high altitude)
1шт.
Выбрано товаров: 115
