Запчасти Case IH FARMALL C (216) - ATTACHMENTS, ELECTRALL, SPECIAL, CABLE CLAMPS AND PLUGS Attachments

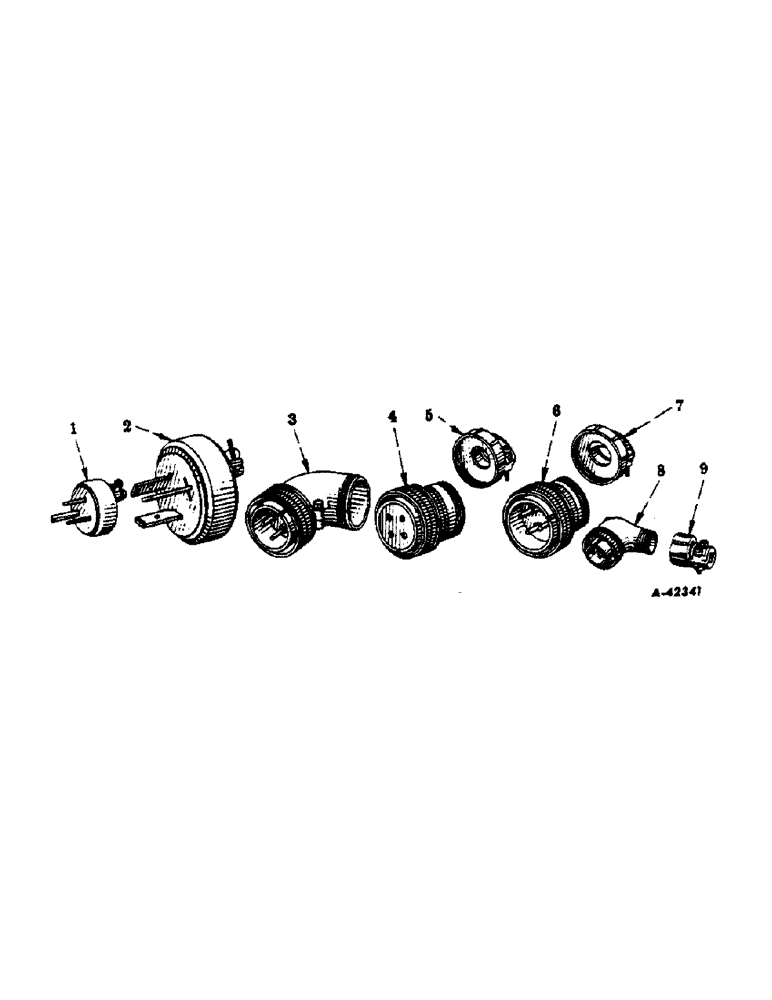

Схема запчастей Case IH FARMALL C - (216) - ATTACHMENTS, ELECTRALL, SPECIAL, CABLE CLAMPS AND PLUGS Attachments
5
3
7
8
2
9
6
4
1

Артикул

Название

Примечание

Количество

1

364759R91

PLUG, 15 amps., single phase socket (See note)

1шт.

2

364831R91

PLUG, 50 amps., single phase socket (See note)

1шт.

3

364758R91

PLUG, angle, large (See note)

1шт.

4

364756R91

PLUG, straight, female (Motor end) (See note)

1шт.

5

364753R91

CLAMP, cable (Used with .67" O.D. cable) (See note)

1шт.

6

364755R91

PLUG, straight, male (Generator end) (See note)

1шт.

7

364754R91

CLAMP, cable (Used with .75" O.D. cable) (See note)

1шт.

8

364757R91

PLUG, angle, small (See note)

1шт.

9

364752R91

CLAMP, cable (Used with .39" O.D. cable) (See note)

1шт.

Выбрано товаров: 9
