Запчасти Case IH FARMALL C (215) - ATTACHMENTS, ELECTRALL, SPECIAL, EXCITER CONTROL SWITCH Attachments

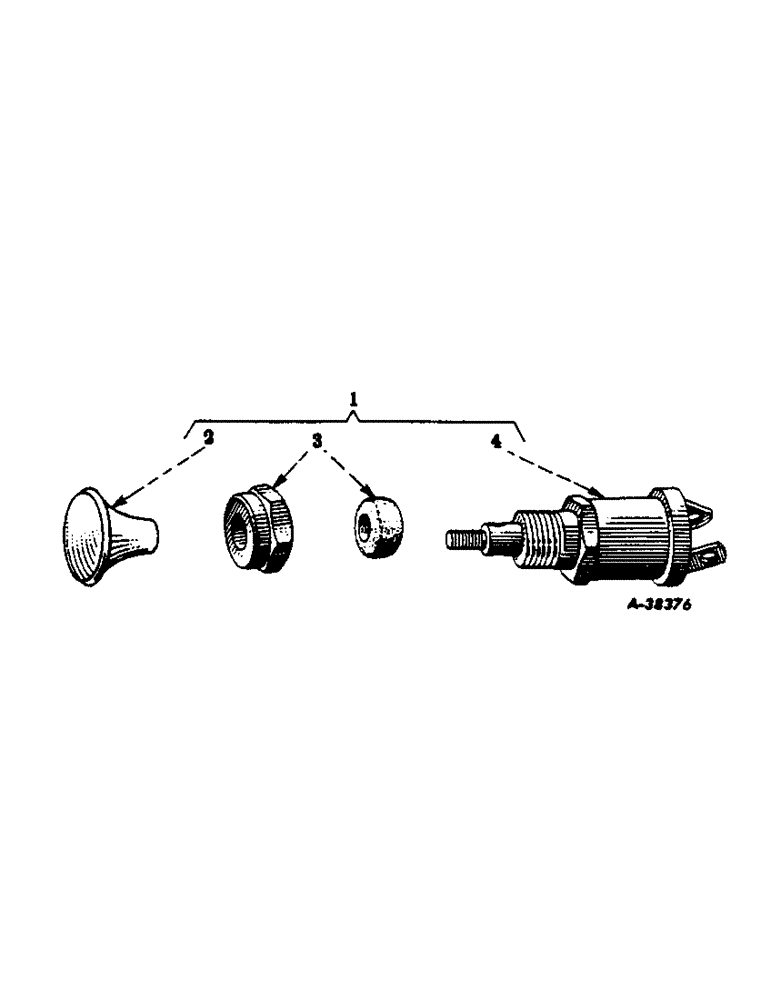

Схема запчастей Case IH FARMALL C - (215) - ATTACHMENTS, ELECTRALL, SPECIAL, EXCITER CONTROL SWITCH Attachments
1
4
2
3

Артикул

Название

Примечание

Количество

1

362818R91

SWITCH

exciter control, assembly (Composed of parts listed in this unit)

1шт.

2

362821R1

KNOB

switch

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

56517DX

NUT, mounting, switch, w/seal

1шт.

138553

WASHER

lock, internal-tooth, cd-pltd., 9/16"

1шт.

4

SWITCH, exciter control (Not serviced separately-order switch, assembly)

1шт.

64022H

SCREW, exciter control switch terminal

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

Выбрано товаров: 8
