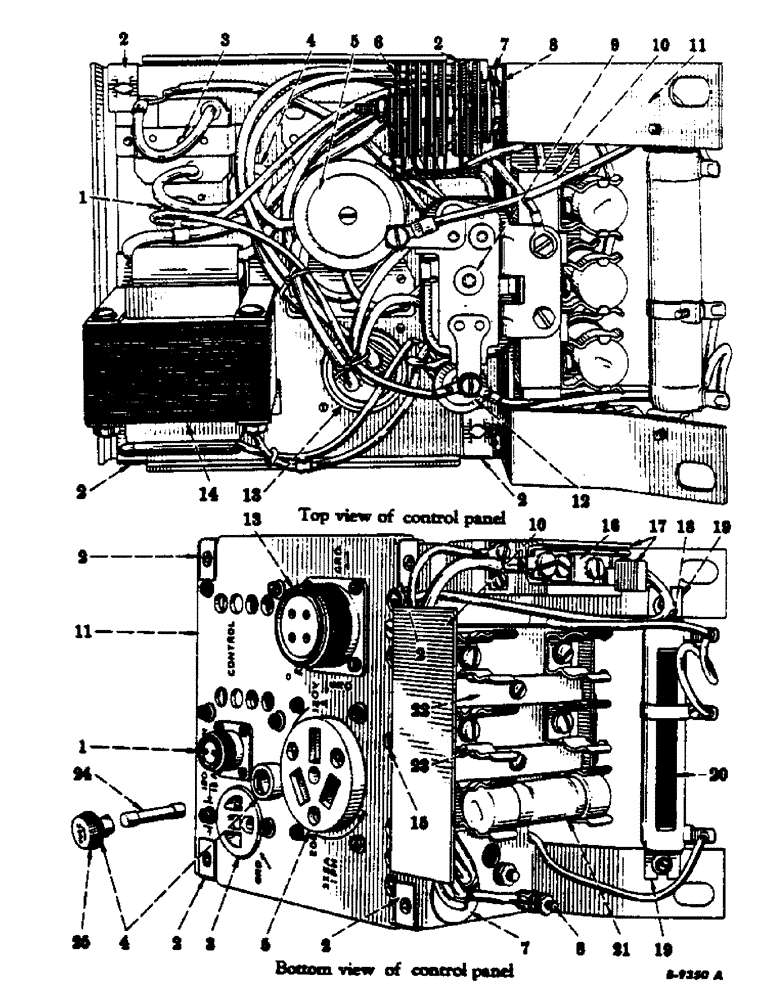

Запчасти Case IH FARMALL C (212) - ATTACHMENTS, ELECTRALL, SPECIAL, CONTROL PANEL Attachments

364823R91

PANEL, control, assembly

1шт.

1

364178R91

RECEPTABLE, control

1шт.

451933

SCREW, tapping, slotted-hex-hd., cd-pltd., no. 4-40 NC x 5/16"

4шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

4шт.

2

364173R1

NUT

speed, control panel base

4шт.

3

364179R91

RECEPTABLE (15 amp-single phase), w/two screws

1шт.

172292

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW, tapping, slotted-hex-hd., cd-pltd., no. 8-32 NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

446143

WASHER

plain, cd-pltd., 3/16" I.D. x 3/8" O.D. x no. 18 ga.

2шт.

4

364188R91

HOLDER, fuse, w/knob, 356445R91 and mounting nut

1шт.

5

364184R91

RECEPTABLE (37-1/2 amp.-single phase)

1шт.

172282

SCREW, tapping, slotted-hex-hd., cd-pltd., no. 6-32 NC x 3/8"

4шт.

492-11006

LOCK WASHER,#6

Lock, #6

4шт.

95-81108

WASHER,#6

plain, cd-pltd., 5/32" I.D. x 5/16" O.D. x no. 20 ga.

4шт.

6

364900R91

RECTIFIER, w/nut and washer

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

446152

HYD CONNECTOR

plain, cd-pltd., 13/64" I.D. x 15/32" O.D. x no. 18 ga.

1шт.

7

364190R1

GROMMET

1шт.

8

436754

SCREW,Slotted Pan Hd, #10-32 x 1"

machine, slotted-pan-hd., cd-pltd., no. 10-32 NF x 1" (Ground screw)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, lock, external tooth, cd-pltd., no. 10

1шт.

395-31022

WASHER,#10

plain, cd-pltd., 13/64" I.D. x 15/32" O.D. x no. 18 ga.

1шт.

9

364194R91

RELAY, control

1шт.

172374

SPARE PART

SCREW, tapping, slotted-hex-hd., cd-pltd., no. 10-32 NF x 3/8"

2шт.

436693

SCREW,Slotted Pan Hd, #8-32 x 3/8"

machine, slotted-pan-hd., cd-pltd., no. 8-32 NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

446143

WASHER

plain, cd-pltd., 3/16" I.D. x 3/8" O.D. x no. 18 ga.

2шт.

446152

HYD CONNECTOR

plain, cd-pltd., 13/64" I.D. x 15/32" O.D. x no. 18 ga.

2шт.

10

364191R1

PLATE, control panel end

1шт.

11

364824R1

BASE, control panel

1шт.

12

364180R91

RESISTOR (5 ohm-25 watt)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

436760

SCREW, machine slotted-pan-hd., cd-pltd., no. 10-32 NF x 2-1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

364181R1

WASHER, resistor insulating

2шт.

364201R1

WASHER, plain, resistor (Steel)

1шт.

13

364177R91

RECEPTACLE (Three phase)

1шт.

172282

SCREW, tapping, slotted-hex-hd., cd-pltd., no. 6-32 NC x 3/8"

4шт.

131044

LOCK WASHER

Lock, #6

4шт.

446121

LATCH,#6

plain, cd-pltd., 5/32" I.D. x 5/16" O.D. x no. 20 ga.

4шт.

14

364189R91

TRANSFORMER

1шт.

172300

SCREW,Hex, #8 - 32 x 1/2"

tapping, slotted-hex-hd., cd-pltd., no. 8-32 NC x 1/2"

4шт.

121821

WASHER, lock, medium, cd-pltd., no. 8

4шт.

446143

WASHER

plain, cd-pltd., 3/16" I.D. x 3/8" O.D. x no. 18 ga.

4шт.

15

436699

SCREW,Slotted Pan Hd, #8-32 x 1"

machine, slotted-pan-hd., cd-pltd., no. 8-32 NC x 1" (Ground screw)

1шт.

120622

NUT,#8-32

2шт.

121752

BUSHING,Ext, #8

lock, external tooth, cd-pltd., no. 8

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

446143

WASHER

plain, cd-pltd., 3/16" I.D. x 3/8" O.D. x no. 18 ga.

1шт.

16

364825R1

HEATER, overload relay

1шт.

17

364182R91

RELAY, overload, w/reset button, and seven screws

1шт.

436748

SCREW, machine, slotted-pan-hd., cd-pltd., no. 10-32 NF x 3/8"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

395-31022

WASHER,#10

plain, cd-pltd., 13/64" I.D. x 15/32" O.D. x no. 18 ga.

2шт.

18

364186R1

CLIP, adjustable resistor

2шт.

19

364187R1

FOOT, adjustable resistor

2шт.

172292

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW, tapping, slotted-hex-hd., cd-pltd., no. 8-32 NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

446143

WASHER

plain, cd-pltd., 3/16" I.D. x 3/8" O.D. x no. 18 ga.

2шт.

20

364185R91

RESISTOR, adjustable (55 watt), w/clamp and screw

1шт.

21

364826R91

FUSE (50 amp.)

3шт.

22

364174R91

BLOCK, fuse

1шт.

177253

SCREW, tapping, slotted-hex-hd., cd-pltd., no. 6-32 NC x 1"

2шт.

23

364175R1

CLIP, fuse

6шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

machine, slotted-pan-hd., cd-pltd., no. 10-32 NC x 1/2"

6шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

446152

HYD CONNECTOR

plain, cd-pltd., 13/64" I.D. x 15/32" O.D. x no. 18 ga.

6шт.

24

106653

FUSE

type AGC, 20 amp.

1шт.

25

356445R91

KNOB

fuse holder

1шт.

364192R91

PACKAGE, service, control panel wiring assembly (Consists of cables and terminals)

1шт.
