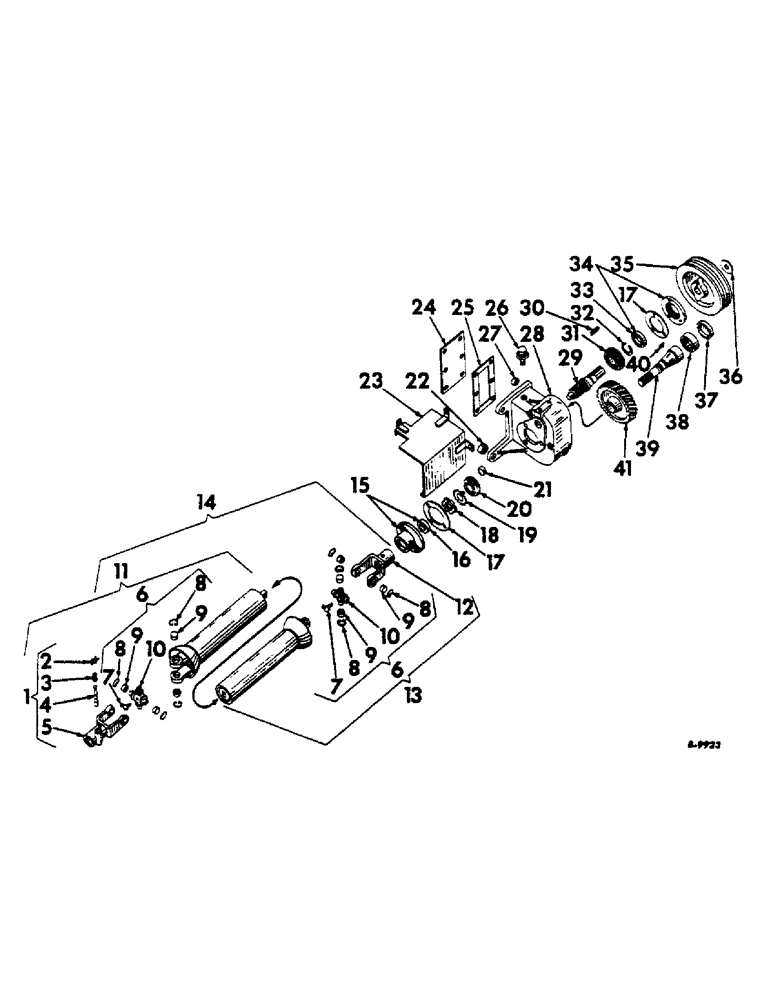

Запчасти Case IH FARMALL C (203) - ATTACHMENTS, ELECTRALL, SPECIAL, TRANSMISSION AND DRIVE SHAFT Attachments

1

568100R91

SPARE PART

YOKE, quick detachable, assembly

1шт.

2

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

retaining, lock pin

1шт.

3

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

4

455346R1

PIN

yoke lock

1шт.

5

568099R1

YOKE

quick detachable

1шт.

6

569047R91

REPAIR KIT

KIT, repair, center cross and bearings

2шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 67-1/2 degree elbow, 1/8" (Optional with 271284)

2шт.

7

271284

YOKE

lubrication, 65 degree elbow, 1/8" (Optional with 109460)

2шт.

8

576420R1

RING

snap

8шт.

9

569044R91

BEARING ASSY

CUP, needle, assembly

8шт.

10

569046R1

CROSS

center

2шт.

11

369559R91

SHAFT, front half, assembly

1шт.

12

369561R1

YOKE, input shaft universal joint

1шт.

13

369560R91

SHAFT, rear half, assembly

1шт.

14

369556R91

SHAFT, power take-off universal joint, assembly

1шт.

108660

PIN,5/16" x 3"

Split (Cotter), 5/16" x 3"

1шт.

15

369536R11

RETAINER, input shaft bearing, w/oil seal, 369520R91

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

369520R91

OIL SEAL, input shaft bearing

1шт.

17

369537R1

GASKET, bearing retainer

2шт.

18

127709

NUT

ball bearing lock

1шт.

19

271220

KNOB

WASHER, ball bearing lock nut

1шт.

20

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, ball, input shaft, w/ring

1шт.

21

369625R91

BEARING, needle, output shaft

1шт.

22

13207H

SPACER, transmission mounting (Large)

1шт.

23

369562R11

SHIELD, rear power take-off, assembly

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

machine hex-hd., 5/16-18 NC x 1"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179814

SPACER

2шт.

24

369530R1

PLATE, transmission cover

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

25

369531R1

GASKET, transmission cover plate

1шт.

26

60836H

BREATHER

transmission housing

1шт.

27

24769H

SPACER, transmission mounting (Small)

2шт.

28

369529R1

HOUSING, transmission

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

machine, hex-hd., 1/2-13 NC x 2-1/2"

2шт.

17652R1

BOLT, machine, hex-hd., 3/4-10 NC x 3-1/4"

1шт.

102637

NUT,1/2"-13, G5

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10 NC

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

29

369534R1

SHAFT, electrall drive output pinion

1шт.

30

Q26

KEY,1/4" Sq x 1 1/4", Par

square, parallel, 1/4 x 1/4 x 1-1/4"

1шт.

31

ST-248A

BEARING, ball, output shaft, w/ring

1шт.

32

359141R1

RING, SNAP

RING, output shaft ball bearing snap

1шт.

33

364472R91

SEAL

OIL SEAL, output shaft bearing

1шт.

34

369535R11

RETAINER, output shaft bearing, w/oil seal, 364472R91

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

35

369539R1

PULLEY, electrall drive (Large)

1шт.

36

363957R1

WASHER, retainer, pulley

1шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

37

369538R1

PLUG, drive shaft housing

1шт.

38

359950R91

NEEDLE BEARING

BEARING, needle, input shaft

1шт.

39

369532R1

SHAFT, electrall drive input

1шт.

40

114735

KEY, Woodruff, no. 16

1шт.

41

369533R1

GEAR, electrall drive (73 teeth)

1шт.
