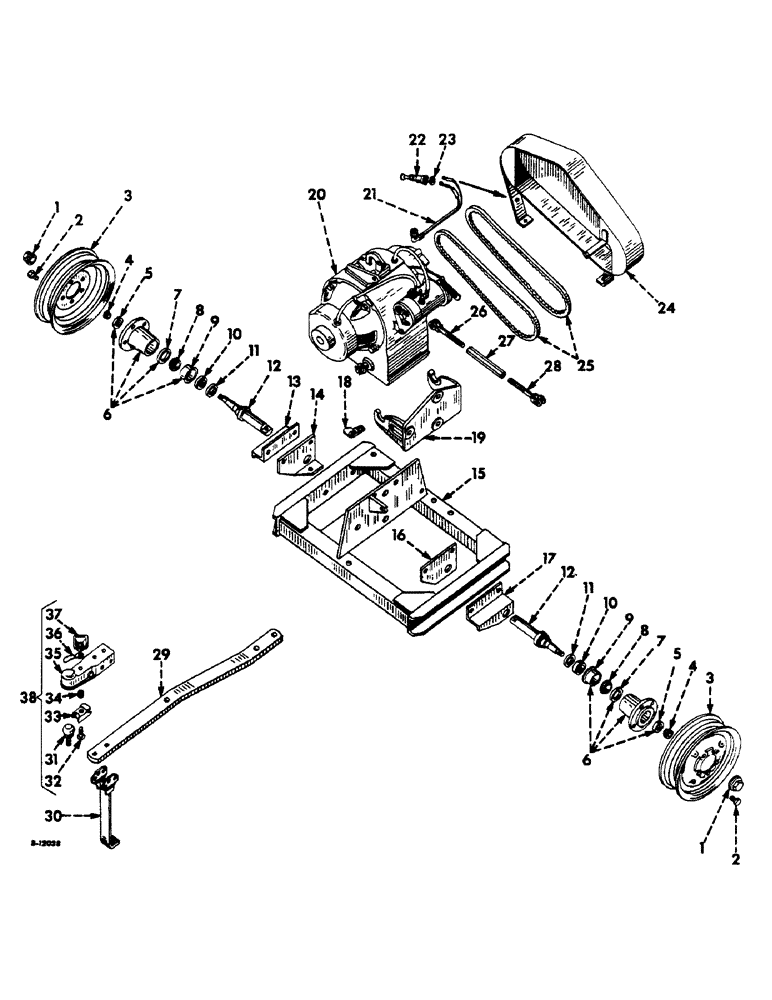

Запчасти Case IH FARMALL C (200) - ATTACHMENTS, ELECTRALL, SPECIAL, GENERATOR AND EXCITER, FRAME AND RELATED PARTS Attachments

1

351080R1

CAP

wheel hub

1шт.

2

351846R1

BOLT (SPREADER),7/16" - 20 x 7/8"

BOLT, wheel hub

10шт.

3

351074R91

WHEEL ASSY.

RIM AND DISC, assembly

2шт.

4

350774R1

CONE, wheel outer bearing

2шт.

5

350775R1

CUP ASSY.

CUP, wheel outer bearing

2шт.

6

351075R1

HUB, wheel, assembly

2шт.

7

350772R1

CUP ASSY.

CUP, wheel inner bearing

2шт.

8

350771R1

CONE, wheel inner bearing

2шт.

9

351076R1

SEALING RING

RING, wear, wheel oil seal

2шт.

10

350769R91

BUSHING

OIL SEAL, wheel

2шт.

11

350768R1

WASHER,41.27mm ID x 55.58mm OD x 4.78mm Thk

wheel felt

2шт.

12

369570R1

AXLE, wheel

2шт.

122779

NUT, hex., slotted, 9/16-18 NF

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

103344

plain, 19/32" I.D. x 1-3/16" O.D. x no. 13 ga.

2шт.

13

369569R1

BRACKET, axle, RH outer

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

machine hex-hd., 5/8-11 NC x 1-3/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

14

369568R1

BRACKET, axle, RH inner

1шт.

13378R1

BOLT

machine sq-hd., 1/2-13 NC x 2-1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

369518R91

FRAME, assembly

1шт.

16

369566R1

BRACKET, axle, LH inner

1шт.

13378R1

BOLT

machine, sq-hd., 1/2-13 NC x 2-1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

369567R1

BRACKET, axle, LH outer

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

machine, hex-hd., 5/8-11 NC x 1-3/4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

18

362123R1

CLIP

control switch cable harness

1шт.

19

363008R1

BRACKET, generator (A)

1шт.

17526R1

BOLT, machine, hex-hd., 3/4-10 NC x 2" (A)

2шт.

220081

NUT

hex., 3/4-10 NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (A) 3/4"

2шт.

20

369542R91

GENERATOR AND EXCITER, electrall, assemby (For components see list of parts under details of "generator exciter") (A)

1шт.

21

369528R91

HARNESS, control switch cable, assembly (A)

1шт.

22

362818R91

SWITCH

exciter control, assembly (For components see list of parts under detals of "exciter control switch") (A)

1шт.

23

21340D

SPACER, exciter control switch (A)

1шт.

24

369543R91

SHIELD, electrall drive belt, assembly

1шт.

17648R1

BOLT, machine, hex-hd., 3/8-16 NC x 3-1/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.

179814

SPACER

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

369541R91

SET, electrall drive belt (Consists of two belts)

1шт.

26

364523R91

CLEVIS, turnbuckle (RH thread) (A)

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam, hex., 1/2-20 NF (A)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (A) 1/8" x 3/4"

1шт.

138080

PIN, rod end, cd-pltd., 1/2 x 1-27/64" (A)

1шт.

27

362812R1

TURNBUCKLE (A)

1шт.

28

364522R91

CLEVIS, turnbuckle (LH thread) (A)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), (A) 1/8" x 3/4"

1шт.

138080

PIN, rod end, cd-pltd., 1/2 x 1-27/64" (A)

1шт.

29

369572R1

TONGUE, electrall trailer

1шт.

17699R1

BOLT,Hex, 1/2" - 13 x 3 3/4"

machine, hex-hd., 1/2-13 NC x 3-3/4"

2шт.

102637

NUT,1/2"-13, G5

2шт.

30

369573R1

LEG, trailer parking, assembly

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q850

PIN

headed, dld., 3/8 x 1-7/8"

2шт.

31

369582R1

BALL, trailer hitch coupling (1-7/8" dia.)

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

32

369581R1

BOLT, ball clamp

1шт.

33

369577R1

CLAMP, ball

1шт.

34

369578R1

SPRING, ball clamp

1шт.

35

369576R1

HOUSING, trailer hitch coupling

1шт.

36

369579R1

LATCH, handwheel

1шт.

37

369580R1

HANDWHEEL, trailer hitch coupling

1шт.

38

369571R91

COUPLING, trailer hitch, assembly

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, carriage, 3/8 x 1-1/4"

2шт.

102635

NUT,3/8"-16, G5

2шт.
