Запчасти Case IH FARMALL C (197) - ATTACHMENTS, PNEUMATIC TIRE PUMP, ENGINAIR, SPECIAL Attachments

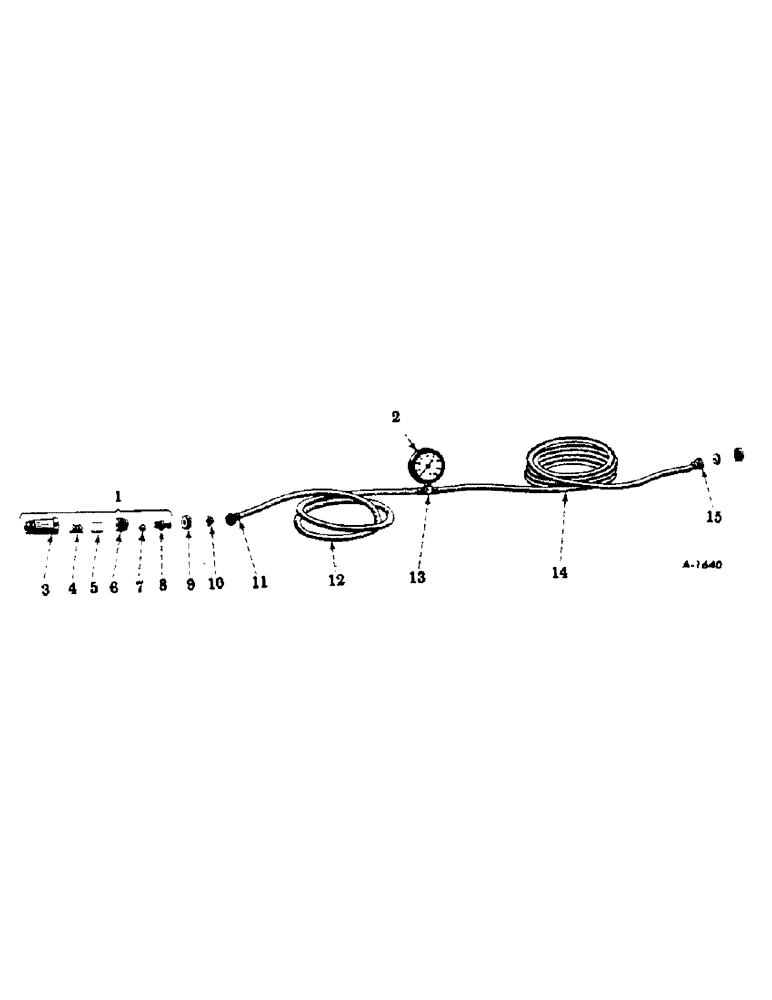

Схема запчастей Case IH FARMALL C - (197) - ATTACHMENTS, PNEUMATIC TIRE PUMP, ENGINAIR, SPECIAL Attachments
2
8
6
5
13
3
12
9
4
1
10
7
11
15
14

Артикул

Название

Примечание

Количество

39604DA

PUMP

tire, w/gage, assembly (For 18 MM thread spark plug hold) (Optional with Schrader pump, 39622D) (Order 365997R91)

1шт.

1

40617DA

ELEMENT

pumping, assembly, Composed of

1шт.

37886D

BALL

1шт.

61560D

BARREL

1шт.

70313D

CAGE

1шт.

69911D

HEAD

1шт.

70312D

NIPPLE

1шт.

61564D

VALVE

1шт.

2

37895DA

GAGE, air pressure

1шт.

3

61560D

BARREL, 18 MM

1шт.

4

70313D

CAGE

valve (2 halves)

1шт.

5

61564D

VALVE

flap (2 halves)

1шт.

6

69911D

HEAD

1шт.

7

37886D

BALL

stainless steel, 5/16"

1шт.

8

70312D

NIPPLE, universal

1шт.

9

61566D

CAP, air chick, 3/4" (Used with 61565D)

2шт.

10

61567D

RUBBER, air chuck, 11/16" (Used with 61565D)

2шт.

11

37890D

RING, hose clamp

4шт.

12

37892D

HOSE, 4 ft.

1шт.

13

37893D

CONNECTION, air pressure gage

1шт.

14

37891D

HOSE, 12 ft.

1шт.

15

357375R91

CHUCK, air, 3/4" (Will work for 61565D)

2шт.

37896DA

PUMP

BAG, cloth, w/instructions

1шт.

69912D

NUT, swivel

1шт.

Выбрано товаров: 24
