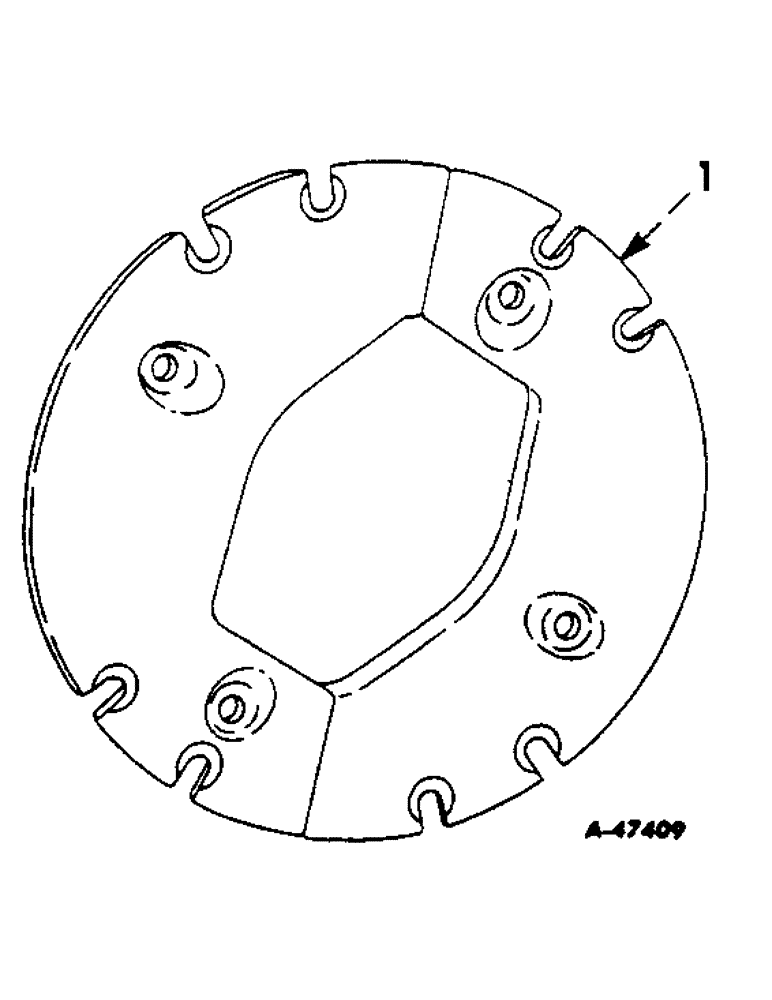

Запчасти Case IH FARMALL C (196) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPECIAL Attachments

1

366109R1

WEIGHT

half rear wheel (Approx. 75 lbs.) (A)

4шт.

366110R1

BOLT,Sq Hd, 3/4" - 10 x 4 3/4"

rear wheel weight mounting (A)

8шт.

280954

NUT,3/4"-10, G5

(A) 3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

jam, hex., cd-pltd., 3/4-10 NC (A)

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4" (A)

8шт.

1

366109R1

WEIGHT

half rear wheel (Approx. 75 lbs.) (B)

4шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

rear wheel weight mounting (B)

8шт.

280954

NUT,3/4"-10, G5

(B) 3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

jam, hex., cd-pltd., 3/4-10 NC (B)

8шт.

366112R1

WASHER

rear wheel weight mounting bolt (B)

16шт.
