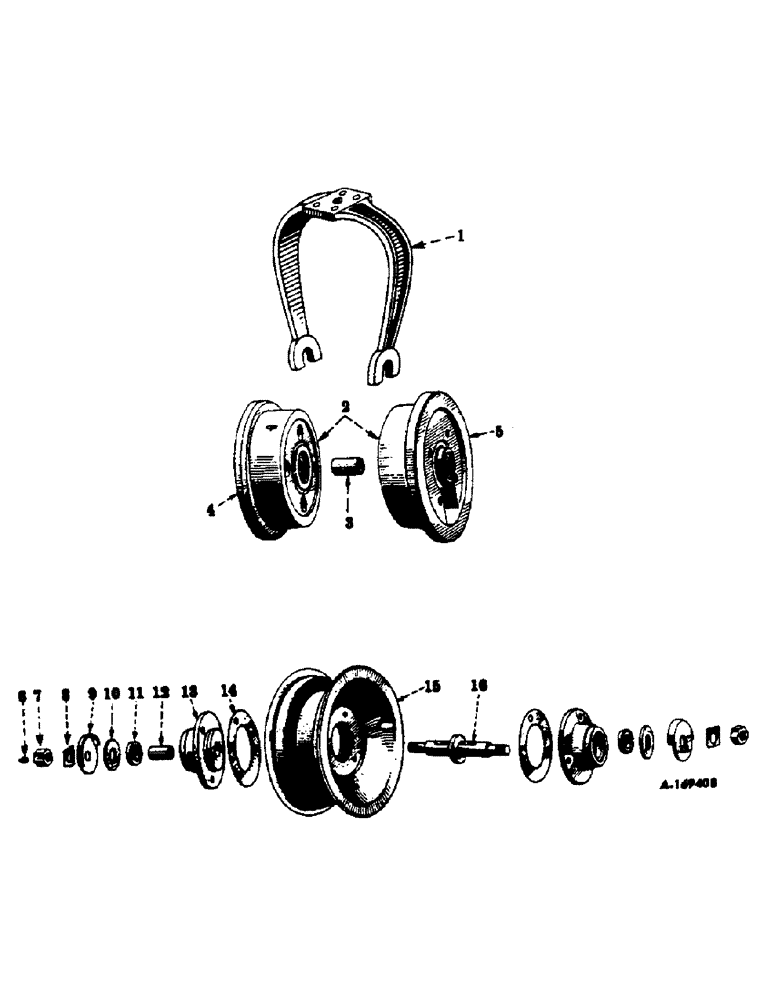

Запчасти Case IH FARMALL C (188) - ATTACHMENTS, SINGLE FRONT WHEEL Attachments

1

52950DA

FORK, front wheel (B)

1шт.

102635

NUT,3/8"-16, G5

(B) 3/8"-16, G5

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20 NF (B)

4шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

(B) Hex, 3/8"-16 x 2 1/2", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B) 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (B) 1/2"

4шт.

1

57895D

FORK, front wheel (A)

1шт.

102635

NUT,3/8"-16, G5

(A) 3/8"-16, G5

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20 NF (A)

4шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

(A) Hex, 3/8"-16 x 2 1/2", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A) 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A) 1/2"

4шт.

2

40833DA

WHEEL, front, two halves, 5630DAX and 5631DAX, w/bolts (Tire size - 7.50 x 10) (A)

1шт.

3

359340R1

BUSHING

single front wheel (A)

2шт.

4

5630DAX

WHEEL, front, male half, w/oil seal, 364469R91 (Tire size - 7.50 x 10) (A)

1шт.

102639

NUT,5/8"-11, G5

(A) 5/8"-11, G5

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

cap, hex-hd., 5/8 NC x 7" (A)

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (A) 5/8"

4шт.

5

5631DAX

WHEEL, front, female half, w/oil seal, 364469R91 (Tire size - 7.50 x 10)

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) 1/8"-27 x .66 lg

1шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (Optional with 109461)

1шт.

7

23742D

NUT, front axle

1шт.

8

23743D

LOCK WASHER

LOCK, front axle nut

2шт.

9

23762DX

SHIELD

front wheel hub

2шт.

10

23760D

SEALING WASHER

WASHER, felt, front wheel

2шт.

11

364469R91

SEAL

OIL SEAL, front wheel bearing

2шт.

12

361311R1

BUSHING

front wheel hub (B)

2шт.

13

8331DAX

HUB, front wheel, w/bushing, 361311R1 and oil seal, 364469R91 (B)

2шт.

114774

NUT, hex., 1/2-13 NC (B)

3шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13 NC x 3" (B)

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (B) 1/2"

3шт.

14

52984D

GASKET, front wheel hub (B)

2шт.

15

8333D

WHEEL, front (Tire size - 6.00 x 12) (B)

1шт.

16

23740DA

SHAFT

AXLE, front (A)

1шт.

218200

NUT,7/8"-14, G5

hex., 7/8-14 NF (A)

1шт.

16

52949DA

AXLE, front (B)

1шт.

218200

NUT,7/8"-14, G5

hex., 7/8-14 NF (B)

1шт.
