(181) - ATTACHMENTS, PRE-SCREENER, DONALDSON, SPECIAL

Запчасти Case IH FARMALL C (181) - ATTACHMENTS, PRE-SCREENER, DONALDSON, SPECIAL Attachments

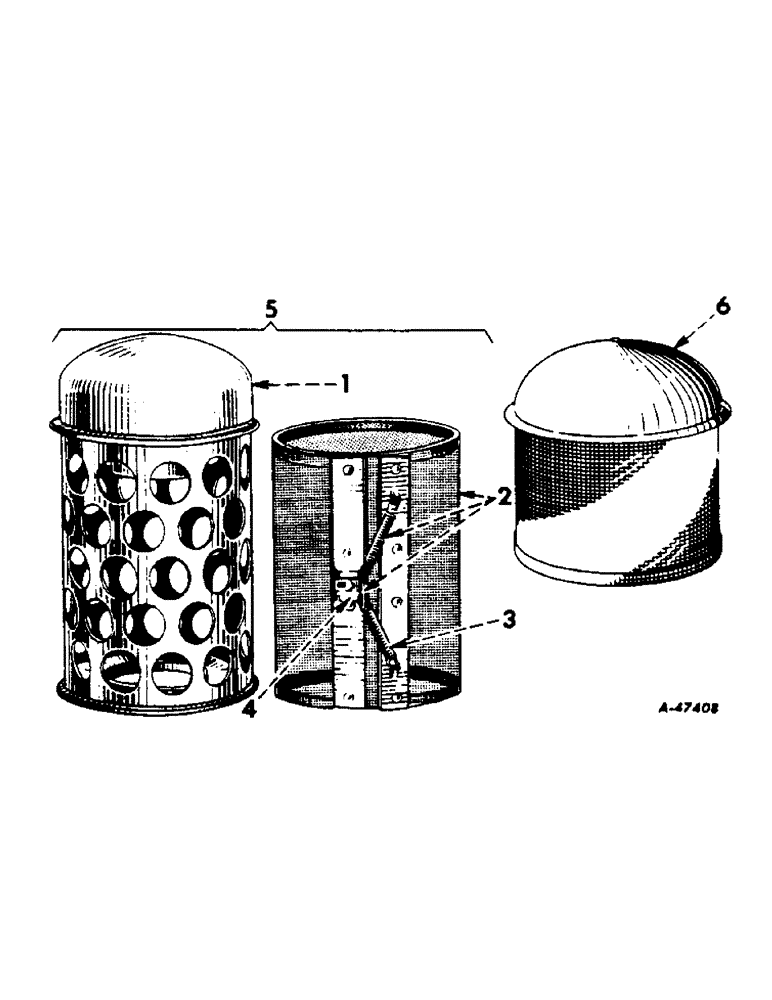

Схема запчастей Case IH FARMALL C - (181) - ATTACHMENTS, PRE-SCREENER, DONALDSON, SPECIAL Attachments
1
2
3
6
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

353633R92

BODY

pre-screener

1шт.

2

353637R91

SCREEN

pre-screener, w/two springs, 353639R1 and one clip, 353758R1

1шт.

3

353639R1

VALVE SPRING

SPRING, tension, screen lock

2шт.

4

353758R1

CLIP

screen lock springs

1шт.

5

353410R92

RETAINER

PRE-SCREENER, (Two-piece) (Special) (Optional with 367719R91)

1шт.

6

367719R91

PRESCREENER

PRE-SCREENER, air cleaner (One-piece) (Optional with 353410R92)

1шт.
