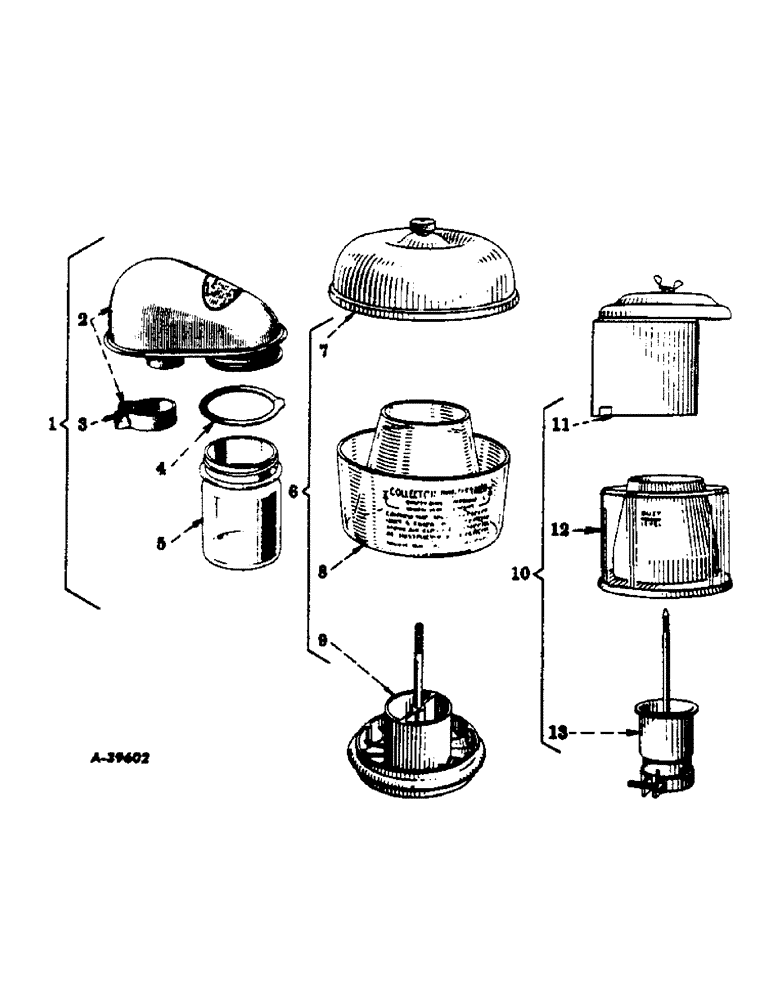

Запчасти Case IH FARMALL C (180) - ATTACHMENTS, PRE-CLEANER, COLLECTOR TYPE, SPECIAL Attachments

1

352612R91

PRECLEANER

PRE-CLEANER (Collector type w/jar) (Order 362997R91)

1шт.

2

BODY, collector w/clamp, nut, and screw (Order 362997R91)

1шт.

3

352687R91

CLAMP, pre-cleaner, w/bolt, 13269R1 and nut, 114502 (Used with 352612R91)

1шт.

13269R1

BOLT, sq-hd., 5/16-18 NC x 1-1/4"

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

4

64177D

GASKET (Used with 352612R91)

1шт.

5

64178D

CONTAINER

JAR, dust (Used with 352612R91)

1шт.

6

362997R91

PRECLEANER

PRE-CLEANER (Collector type, w/plastic body) (Composed of ref. nos. 7, 8 and 9) (Will work for 352612R91 and 352686R91) (Optional with 356249R92)

1шт.

7

362999R91

COVER

CAP, top, w/nut

1шт.

8

363000R1

BODY

dust receptacle

1шт.

9

363002R91

SLEEVE

w/bolt

1шт.

10

356249R92

CLEANER

PRE-CLEANER, detachable sleeve type (Composed of ref. nos. 11, 12, and 13) (Optional with 362997R91)

1шт.

11

361408R91

CAP, top, w/nut and shield

1шт.

12

361409R91

CLEANER

BODY, pre-cleaner

1шт.

13

361411R91

SLEEVE

w/clamp, nut, 114380, screw, 114359 and stud

1шт.

114380

NUT

sq., 1/4-20 NC

1шт.

114359

SCREW, machine, slotted fil-hd., 1/4-20 NC x 1-1/4"

1шт.
