Запчасти Case IH FARMALL C (178) - ATTACHMENTS, AIR CLEANER EXTENSION PIPE, SPECIAL Attachments

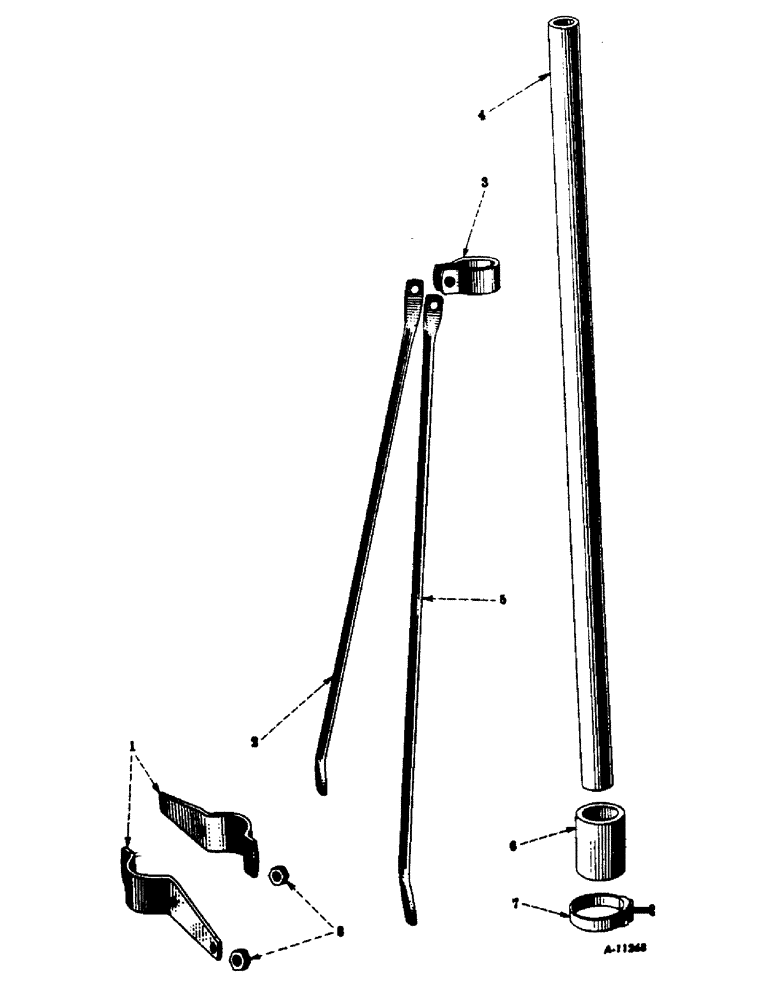

Схема запчастей Case IH FARMALL C - (178) - ATTACHMENTS, AIR CLEANER EXTENSION PIPE, SPECIAL Attachments
7
6
1
8
4
2
3
5

Артикул

Название

Примечание

Количество

351880R91

ATTACHMENT, air cleaner extension pipe

1шт.

1

63264D

CLAMP, extension pipe brace, lower

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24 NF x 1"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

63261D

BRACE, extension pipe, L.H.

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

351802R1

CLAMP, extension pipe brace, upper

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

351801R1

PIPE, extension

1шт.

5

63262D

BRACE, extension pipe, R.H.

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

15435D

HOSE, extension pipe (1-3/4 I.D. x 2-1/2" long, 3 ply)

1шт.

7

29979D

CLAMP

extension pipe hose

2шт.

8

93082H

NUT

extension pipe lower brace clamp

2шт.

Выбрано товаров: 20
