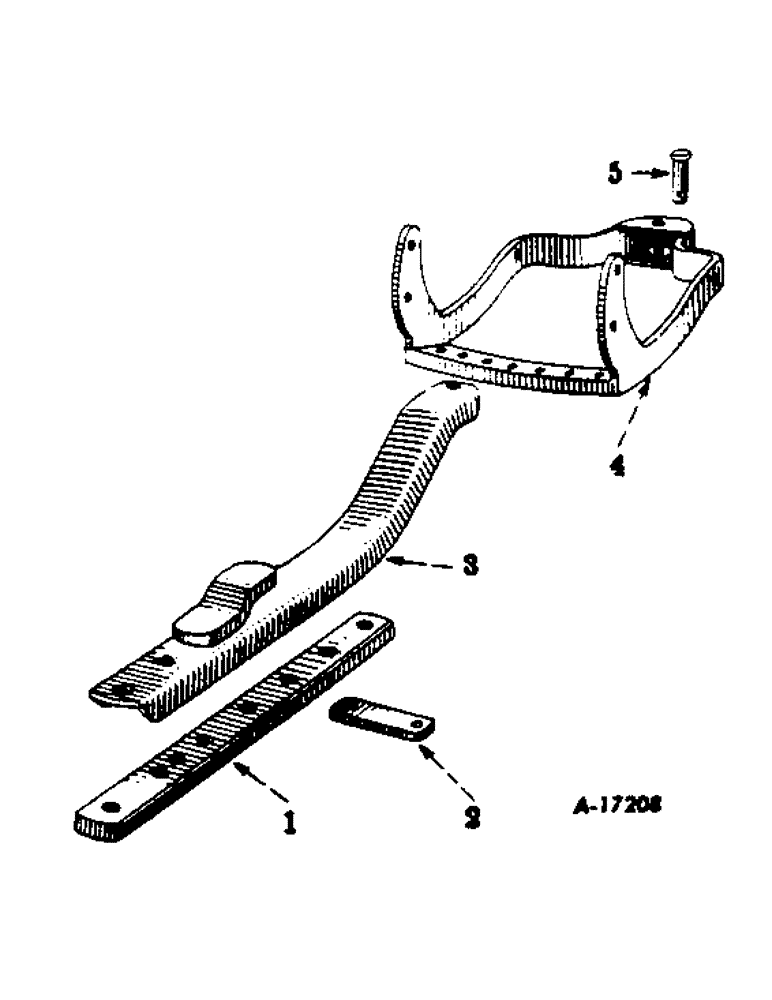

Запчасти Case IH FARMALL C (139) - CHASSIS, SWINGING DRAWBAR (12) - CHASSIS

1

351232R1

PLATE, swinging drawbar hitch (Order 357428R91)

1шт.

1

351232R2

PLATE, swinging drawbar hitch (Part of package, 357428R91)

1шт.

2

352418R1

PLATE, drawbar clamp

1шт.

114820

NUT, hex., 5/8-11 NC

2шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11 NC x 4-1/4", Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

351228R11

DRAWBAR, swinging

1шт.

218197

NUT,3/4"-16, G5

hex., 3/4-16 NF

2шт.

181510

SCREW, cap, hex-hd., 3/4-16 NF x 1-7/8" (Used with 351232R1)

2шт.

414-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 3/4-16 NF x 2-1/4" (Used with 351232R2)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

352050R11

DRAWBAR

1шт.

362014R1

SCREW, cap, hex-hd., 5/8-11 NC x 1-1/2"

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

351231R1

PIN, swinging drawbar pivot

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

357428R91

PACKAGE, service swinging drawbar hitch plate (Will work for 351232R1), Consists of

1шт.

351232R2

PLATE

1шт.

218197

NUT,3/4"-16, G5

2шт.

414-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5

SCREW

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
