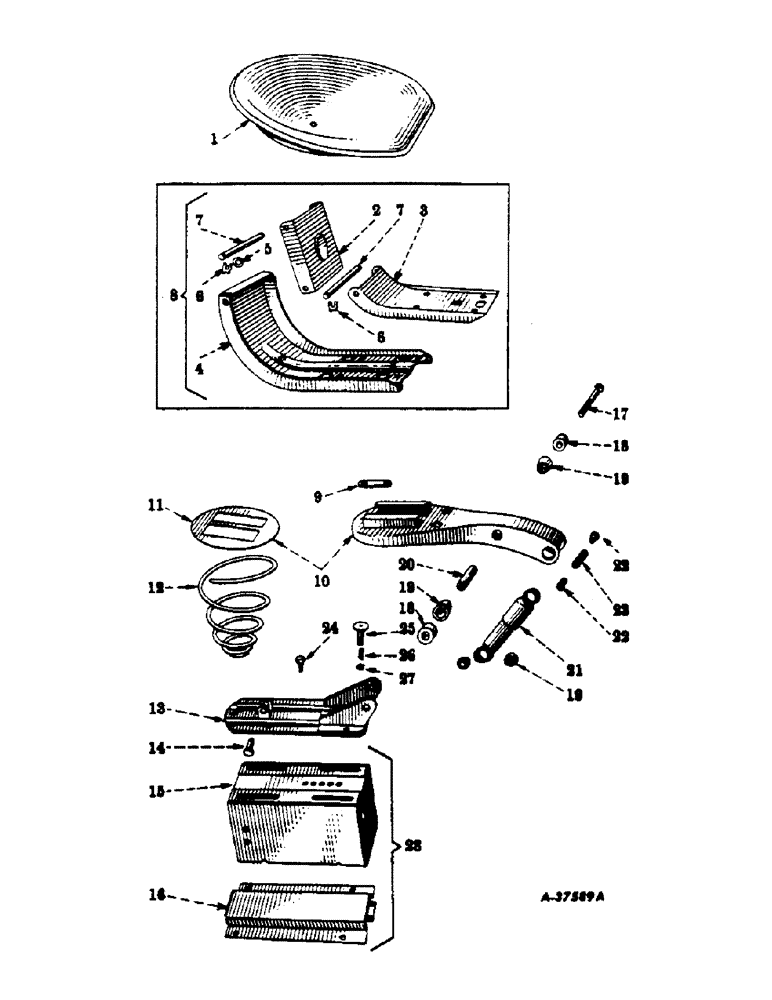

Запчасти Case IH FARMALL C (136) - CHASSIS, SEAT, SEAT SUPPORT AND TOOL BOX (12) - CHASSIS

1

351925R93

SEAT

upholstered

1шт.

1

357518R91

DRIVER SEAT

SEAT, deluxe upholstered

1шт.

181392

BOLT,Hex, 7/16" - 20 x 11/16"

SCREW, cap, hex-hd., 7/16-20 NF x 11/16"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

356895R1

HINGE

1шт.

3

356896R1

RETAINER, seat

1шт.

4

356897R4

BRACKET, seat adjustment

1шт.

425-107

NUT,7/16"-14, G5

hex., 7/16-14 NC

4шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14 NC x 3/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

80158H

WASHER

SPACER (Will work for 356894R1)

2шт.

6

356893R1

WASHER "X"

4шт.

7

356892R1

PIN

hinge

2шт.

8

356890R93

ATTACHMENT, tilt back seat bracket (Consists of tilt back seat bracket, 356891R93, nut, 271500 screw, 179856 and washer, 103322)

1шт.

8

356891R94

BRACKET, tilt back seat, Composed of

1шт.

356897R2

BRACKET

1шт.

356895R1

HINGE

1шт.

356892R1

PIN

2шт.

356896R1

RETAINER

1шт.

80158H

WASHER

SPACER

2шт.

356893R1

WASHER

4шт.

9

352118R1

CLIP, trip rope

1шт.

271500

SOCKET

hex., 7/16-14 NC (See note)

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, cap, hex-hd., 7/16-14 NC x 3/4" (See note)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (See note) 7/16"

1шт.

10

352599R92

BRACKET, seat support, w/gasket, 352100R1 (Order 354733R92) (S/N, Serial Range: 501-36425)

1шт.

10

352599R94

BRACKET, seat support, w/gasket, 352100R1 (S/N 36426 up)

1шт.

11

352100R1

GASKET

control spring

1шт.

12

354671R2

SPRING

conical (3 identifying notches) (For medium weight operators)

1шт.

12

352598R2

SPRING

conical (4 identifying notches) (For medium weight operators)

1шт.

12

354670R2

VALVE SPRING

SPRING, conical (5 identifying notches) (For heavy weight operators)

1шт.

13

355750R12

PLATE, seat mounting

1шт.

14

351751R1

BOLT,7/16" - 20 x 2 7/32"

shock absorber anchor, lower (Two used -, Serial Range: 501-36425)

1шт.

271505

BODY

hex., 7/16-20 NF

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

15

359572R92

SUPPORT, seat and tool box (For tractors with remote control - order 360710R93)

1шт.

15

359572R93

SUPPORT, seat and tool box (Will work for 356826R92)

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20 NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

356834R12

GUARD, hose, auxiliary control valve

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-20 NC x 3/4"

2шт.

95-11028

WASHER,1/4"

plain, 9/32" I.D. x 5/8" O.D. x no. 16 ga.

2шт.

17

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

cap, hex-hd., 7/16-20 NF x 3-1/2" (Shock absorber anchor, upper) (S/N 36426 up)

1шт.

354732R1

NUT, lock, shock absorber anchor bolt (Upper) (S/N 36426 up)

1шт.

18

354731R1

TUBE

SPACER, shock absorber bushing (S/N 36426 up)

2шт.

19

72696R1

SHOCK ABSORBER

BUSHING, shock absorber and seat pivot (S/N 36426 up)

4шт.

20

354730R1

TUBE,.625" OD, 2.25" Length

shock absorber bushing (S/N 36426 up)

1шт.

21

351750R93

SHOCK ABSORBER

ABSORBER, shock

1шт.

22

361140R1

RUBBER BUSHING,15.75mm ID x 25.27mm OD x 47.22mm L

BUSHING, seat support pivot rod, 5/8" I.D. x 1" O.D., 1-3/16" long

2шт.

23

355753R1

PIN,15.88mm OD x 88.9mm L

ROD, seat support pivot

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 1/2-20 NF x 1"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

24

358268R2

BOLT,1/2" - 20 x 1 1/2"

seat mounting

4шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20 NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

356649R1

WASHER, steel, 21/32" I.D. x 1-5/16" O.D. x no. 13 ga.

4шт.

25

352600R91

PIN

LOCATOR, seat

1шт.

26

352105R1

SPRING

seat locator

1шт.

27

351128R1

WASHER

RETAINER, seat locator

1шт.

28

360710R93

SUPPORT, seat and tool box, 359572R93, w/guard, 356834R12 (For tractors with remote control) (Will work for 352086R91 and 359572R92)

1шт.

350513R1

RIVET, fl-hd., al., 7/64 x 3/8" (Used for attaching serial number plate)

4шт.

353309R1

SPACER

seat mounting

4шт.

354733R92

PACKAGE, seat support bracket (Will work for 352599R92), Consists of

1шт.

352599R94

BRACKET

1шт.

354732R1

NUT

1шт.

181412

SCREW

1шт.

354731R1

TUBE

SPACER

1шт.

354730R1

TUBE,.625" OD, 2.25" Length

1шт.

351438R93

PAD

detachable seat (Rubber)

1шт.

359483R91

PAD

detachable seat (Jute)

1шт.

355749R93

UNIT, seat suspension, assembly (Will work for 352347R95), Composed of

1шт.

351750R93

SHOCK ABSORBER

ABSORBER

1шт.

351751R1

BOLT,7/16" - 20 x 2 7/32"

1шт.

181413

SCREW,Hex, 7/16" - 20 x 3 1/2"

BOLT

1шт.

352599R94

BRACKET

1шт.

72696R1

SHOCK ABSORBER

BUSHING

4шт.

361140R1

RUBBER BUSHING,15.75mm ID x 25.27mm OD x 47.22mm L

BUSHING

2шт.

362671R1

LEVER

1шт.

352600R91

PIN

LOCATOR

1шт.

354732R1

NUT

1шт.

425-117

NUT,7/16"-20, G5

1шт.

551172R1

NUT

1шт.

355750R12

PLATE

1шт.

351128R1

WASHER

RETAINER

1шт.

355753R1

PIN,15.88mm OD x 88.9mm L

ROD

1шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

SCREW

2шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

1шт.

354731R1

TUBE

SPACER

2шт.

352105R1

SPRING

1шт.

354671R2

SPRING

1шт.

354730R1

TUBE,.625" OD, 2.25" Length

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
